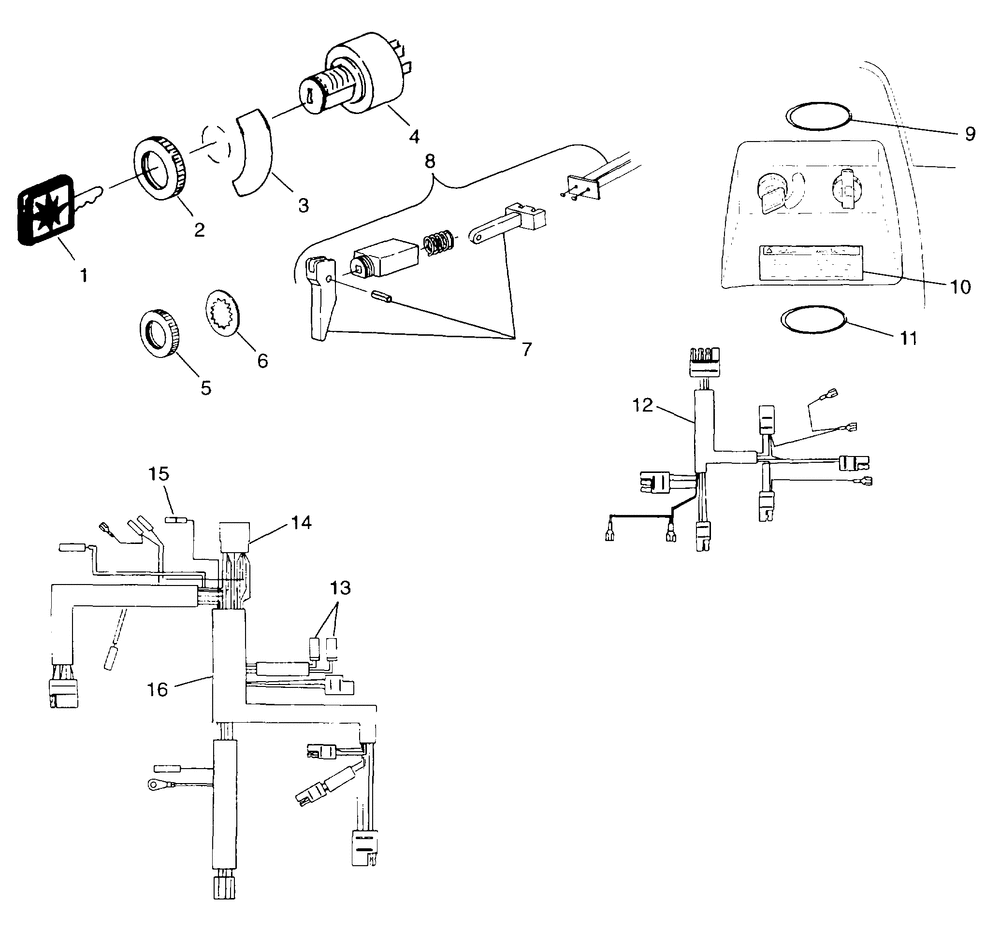

IGNITION and WIRE HARNESS - 099ED4BS (4948304830b001)

Polaris 099ED4BS 500 CLASSIC 099ED4BS 500 CLASSIC IGNITION and WIRE HARNESS - 099ED4BS (4948304830b001)

№	Наименование	Кол-во
1	SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.].	1
2	NUTIGNITION	1
4	KIT-IGNITION SWITCHESCOMPLT	1
5	NUT	1
6	WASHER-LOCK	1
7	KIT-CHOKE CONTROL [INCL. ANCHOR FLIPPER PIN]	1
8	CABLE CHOKE (TWIN)	1
13	HOUSING1 CIRCUIT	2
14	HOUSING	2
15	HOUSINGSOCKET	2
