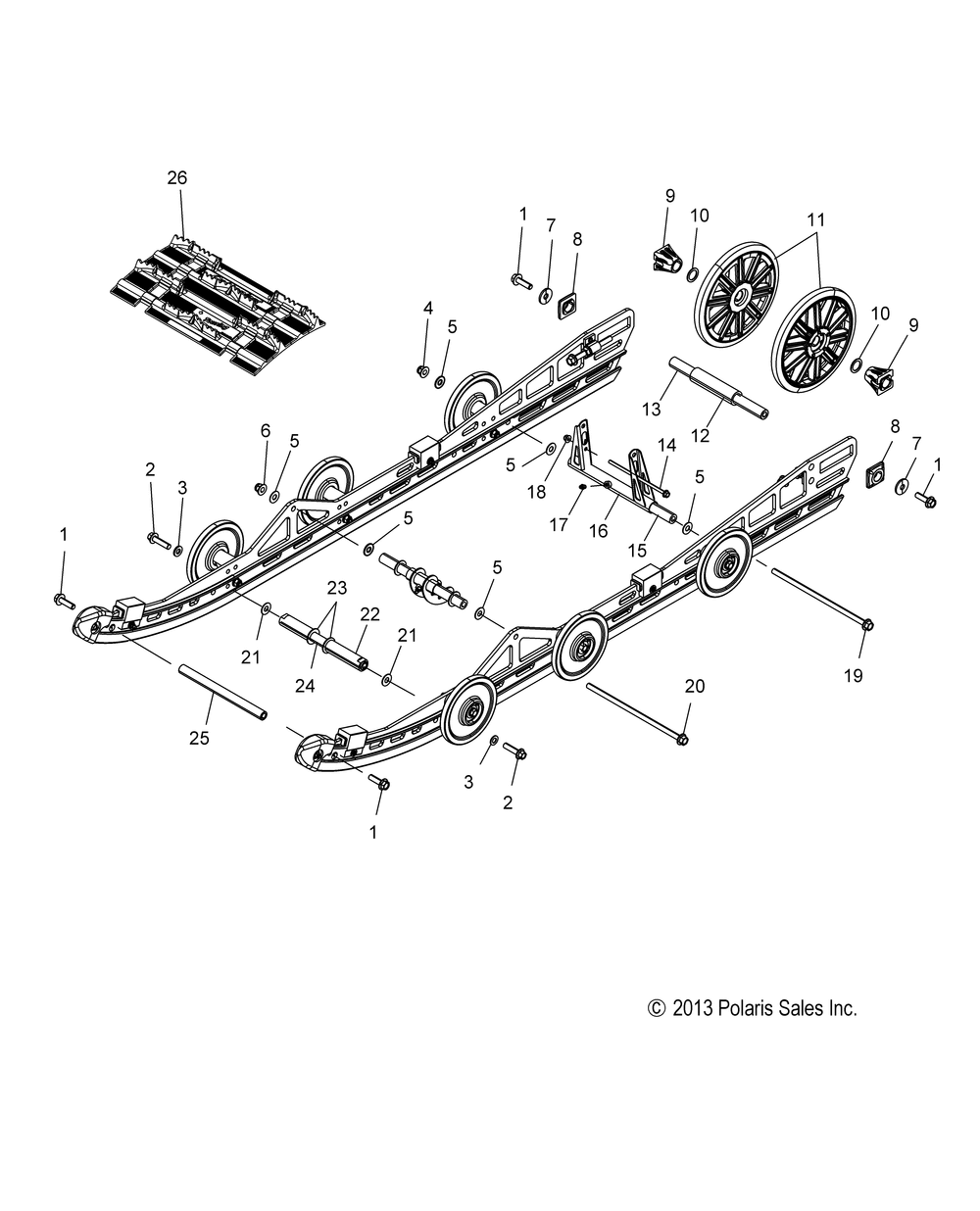

№ | Наименование | Примечание | Кол-во |
---|---|---|---|
1 | SCR-M10X1.5X35 HXFL ZOD P30 | 6 | |
2 | SCR-HXFL-M10X1.5X40 10.9ZODP80 | 2 | |
3 | WSHRFL10X2 | 2 | |
4 | NUT-M10X1.25FLGNYLOC-OLIVE D( | 2 | |
5 | WSHR-10.5X24X1.2446 ZOD | 2 | |
6 | NUT-M10X1.5 HFN NYLOC ZOD | 2 | |
7 | WASHER-SPRING.406X1.25X.125ZOD | 2 | |
8 | SPACER-IDLER | 2 | |
9 | SPACERIDLER | 2 | |
10 | BUSHING(10) (10 per pack) | 2 | |
11 | RINGRETAINING [1 PER WHEEL] | 2 | |
11 | ASM-WHEELWEB8.506004BLK | 2 | |
12 | SPACERIDLERCTR. | 1 | |
13 | SHAFT-IDLER M10X1.5 | 1 | |
14 | SCR-HXFL M6X1.0X150 8.8 ZOD | 1 | |
15 | SHAFT-CROSS RMK | 1 | |
16 | WELD-REAR PIVOT ARMMY11ECOAT | 1 | |
17 | FITTING LUBRICATION | 2 | |
18 | NUT-M6X1.0FLG-NYLOC-OLIVE D | 1 | |
19 | SCR-HXFL M10X1.5X250 8.8 ZOD | 2 | |
20 | SCR-HXFL-M10X1.25X250 10.9 ZOD | 1 | |
22 | SPACER-SHOCK CENTERINGMET | 1 | |
23 | WSHR-.719X1.250X.065-Y | 2 | |
24 | SHAFT-17.450X214.77 | 2 | |
25 | SFT-M10X1.5IDX17.47ODX220.1 LG | 2 | |
26 | CLIP-FLATCAMOPLAST TRACK | 0 | |
26 | CLIP-GUIDE CAMOPLAST TRACK | 0 | |
26 | TRACK-15X144" 1.352 COBRA | 1 | |
26 | TRACK-15X144"X1 ENERGY | 1 |
