FRONT SUSPENSION and SKI - 0980443 (4942054205b001)

Корзина пуста
Polaris 0980243 SPORT TOURING 0980243 SPORT TOURING FRONT SUSPENSION and SKI - 0980443 (4942054205b001)

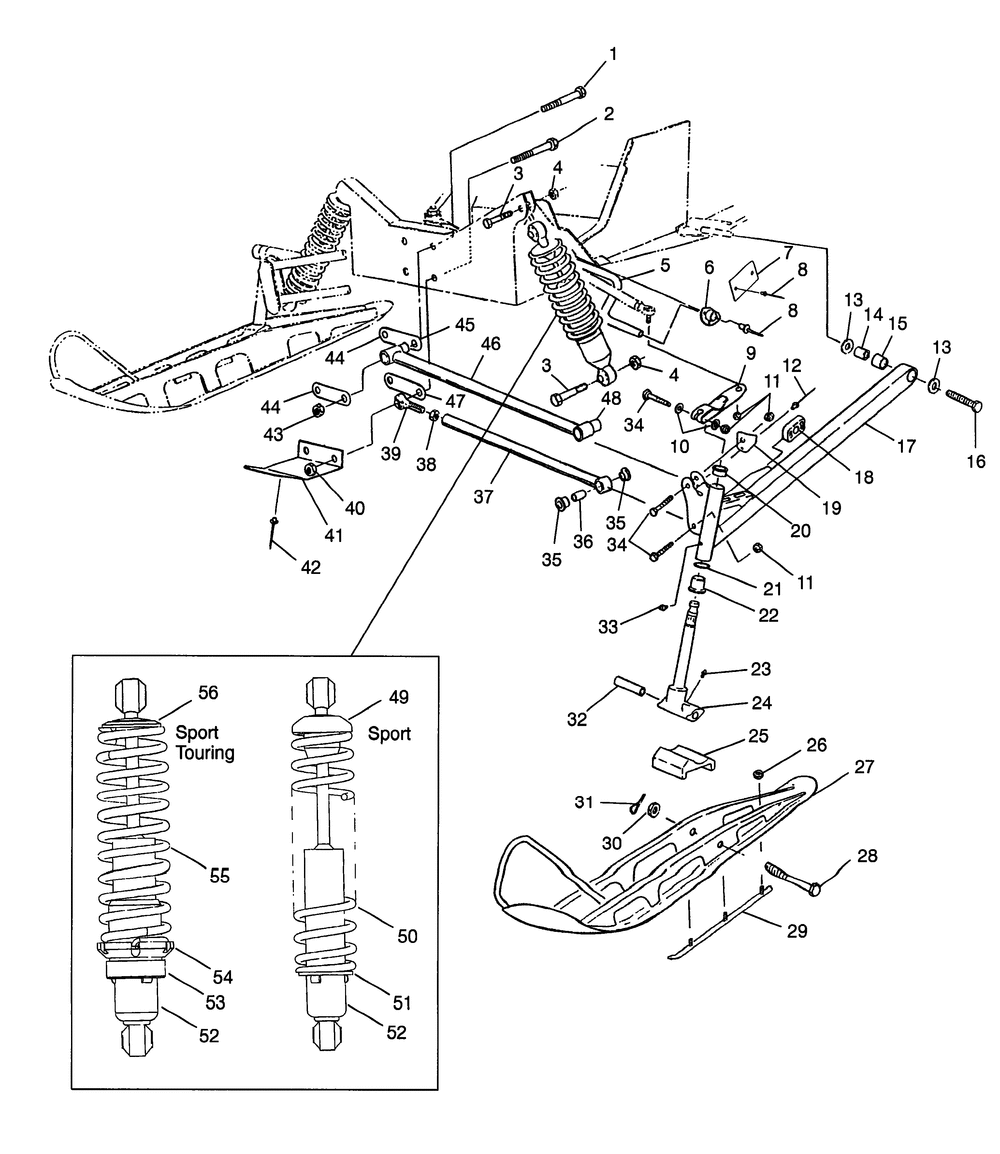

FRONT SUSPENSION and SKI - 0980443 (4942054205b001)
№ Наименование Примечание Кол-во
1 BOLT 2
2 BOLT 2
3 SCREW(10) (10 per pack) 4
4 NUTNYLOK(10) (10 per pack) 4
5 BAR SWAY-38X79/16BLK 1
6 BUSHINGSWAY BAR 2
8 RIVET(50) (50 per pack) 4
9 SUBSTITUTED BY 9999999 2
10 WASHER 4
11 NUT LOCK(10) (10 per pack) 6
12 RIVET-3/16-.214-.420 (50) * (50 per pack) 2
13 WASHER(10) (10 per pack) 4
14 TUBE BUSHING 2
15 PIVOTRUBBER 2
16 BOLT(10) * (10 per pack) 2
17 ASM-TRAILING ARMRHBLK (Incl. 1314) 1
17 ASM-TRAILING ARMLHBLK (Incl. 1314) 1
18 SLIDESWAYBAR9/16* 2
19 STOPLHSTRGBLK. 1
19 STOPRHSTRGBLK. 1
20 BUSHING-FLANGE 2
21 BUSHING(10) (10 per pack) 2
22 BUSHINGFLANGED(10) (10 per pack) 2
23 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
24 SHAFTSPINDLETRLGBLK 2
25 STOP RUBBER 2
26 NUTNYLOK(10) (10 per pack) 6
27 SKI WELD 2
28 SCREW(10) (10 per pack) 2
29 WELD-SKAG SKI (10) (10 per pack) 2
30 NUT CASTLE(10) (10 per pack) 2
31 PIN-COTTER(10) (10 per pack) 2
32 BUSHINGPIVOT 2
33 FITTINGLUBRICATIONTHREADED(10 2
34 BOLT 6
35 BUSHRAD.ROD PIVOTOUT.* 4
36 BUSHING-RADIUS ROD(10) (10 per pack) 2
37 RODRADLOWERBLK 2
38 NUT-JAM(10) (10 per pack) 2
39 ROD END-1/2PL.745 WIDEFM 2
40 NUT FLEXOC 2
42 RIVET(50) (50 per pack) 4
43 NUTFLEXLOCK 2
44 STRAPSPACER TOP 2
45 BUSHINGPIVOT7/16 2
46 ASM-RAD RODFIXEDUPPERBLK (Incl. 4345) 2
47 STRAPSPACER BOTTOM 1
48 BUSHINGRAD.ROD PIVOT3/8 2
49 RETAINER-TOP 1
50 SPRINGCOMP.BLK. 1
51 RETAINERSPRING 1
52 SHOCKIFS 2
53 RETAINERSPRINGBODYTHREADED 2
54 RINGSPRING PRELOAD ADJ. 2
55 SPRINGCOMPRESSION 2
56 RETAINERSPRINGSLOTTED 2
