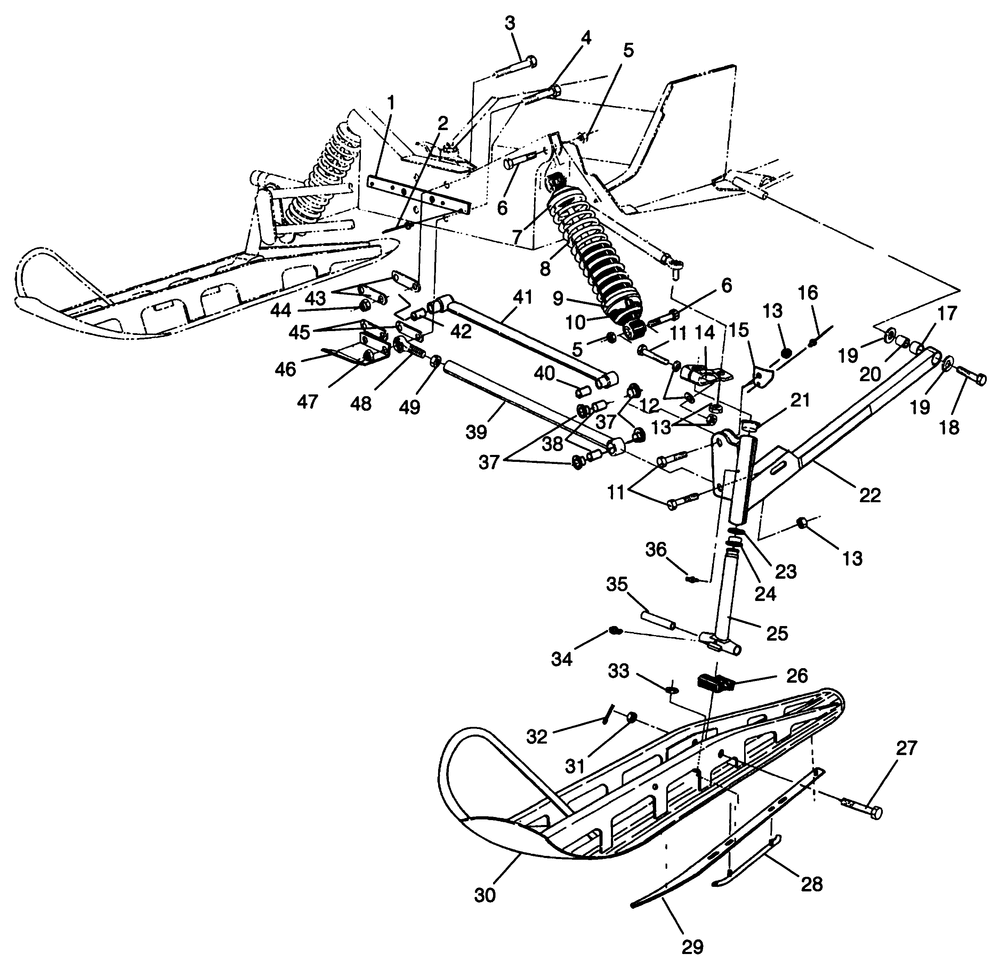

FRONT SUSPENSION and SKI WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E9820 (4943884388B001)

Корзина пуста
Polaris E982065 EURO WIDETRAK LX E982065 EURO WIDETRAK LX FRONT SUSPENSION and SKI WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E9820 (4943884388B001)
FRONT SUSPENSION and SKI WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E9820 (4943884388B001)
№ Наименование Примечание Кол-во
1 BRACEBULKHEAD 1
2 RIVETINTERLOCKZ(50) * (50 per pack) 4
3 BOLT 2
4 BOLT 2
5 NUTNYLOK(10) (10 per pack) 6
6 SCREW(10) (10 per pack) 4
7 RETAINER-TOP 2
8 SPRINGCOMP.BLK. 2
9 RETAINERSPRING 2
10 SHOCKIFS 2
11 BOLT 6
12 WASHER 4
13 NUT LOCK(10) (10 per pack) 8
14 ARM STEERING 2
15 STOPLHSTRGBLK. 1
15 STOPRHSTRGBLK. 1
16 RIVET-3/16-.214-.420 (50) * (50 per pack) 2
17 PIVOTRUBBER 2
18 BOLT(10) * (10 per pack) 2
19 WASHER(10) (10 per pack) 4
20 TUBE BUSHING 2
21 BUSHING-FLANGE 2
22 ARMTRLGLH [Incl. 1821] 1
22 ARMTRLGRH [Incl. 1821] 1
23 BUSHING(10) (10 per pack) 2
24 BUSHINGFLANGED(10) (10 per pack) 2
25 SHAFTSPINDLETRLGBLK 2
26 STOP RUBBER 2
27 SCREW(10) (10 per pack) 2
28 SKAG CARBIDE EZ STEER 3" 120 (Pair) 1
29 PLATE SKAG 2
30 SKI WELD 2
31 NUT CASTLE(10) (10 per pack) 2
32 PIN-COTTER(10) (10 per pack) 2
33 NUTNYLOK(10) (10 per pack) 6
34 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
35 BUSHINGPIVOT 2
36 FITTINGLUBRICATIONTHREADED(10 2
37 BUSHING-RADIUS ROD(10) (10 per pack) 2
38 BUSHRAD.ROD PIVOTOUT.* 4
39 RODRADLOWERBLK 2
40 BUSHINGRAD.ROD PIVOT3/8 2
41 ASM-RAD RODFIXEDUPPERBLK (Incl. 4345) 2
42 BUSHINGPIVOT7/16 2
43 STRAPSPACER TOP 2
44 NUTFLEXLOCK 2
45 STRAPSPACER BOTTOM 2
47 NUT FLEXOC 2
48 ROD END-1/2PL.745 WIDEFM 2
49 NUT-JAM(10) (10 per pack) 2
