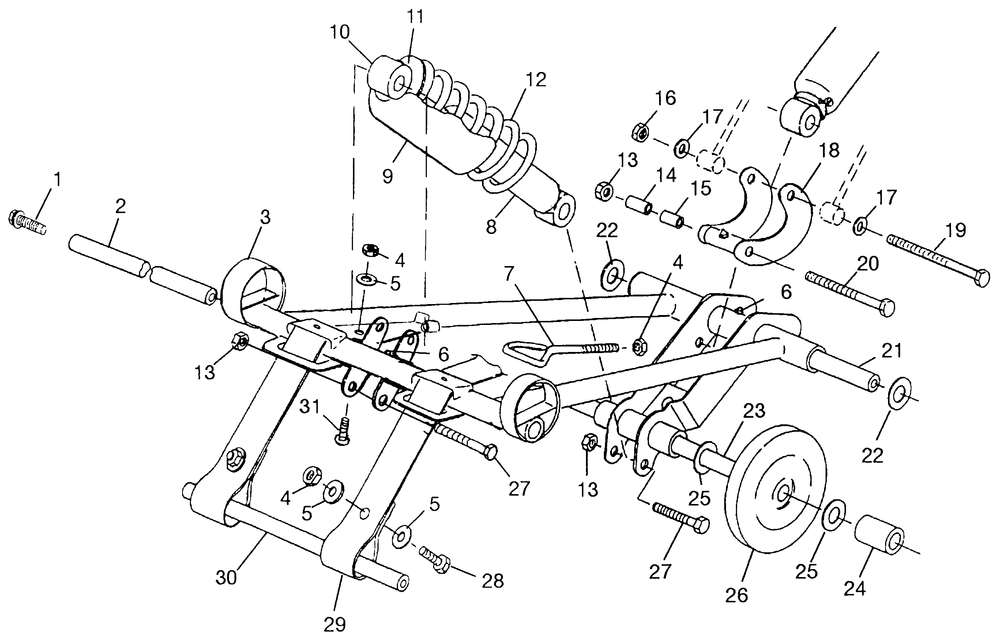

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SCREW(10) (10 per pack) | 2 | |
| 2 | SHAFT | 1 | |
| 3 | TORQUE ARM FRONTX10QABLK | 1 | |
| 4 | NUTNYLOK(10) (10 per pack) | 6 | |
| 5 | WASHER | 6 | |
| 6 | FITTINGLUBRICATIONTHREADED(10 | 2 | |
| 7 | BOLTEYE | 2 | |
| 8 | RETAINER-SPRINGGABPLATED | 1 | |
| 9 | SHIELD-SPRING | 1 | |
| 11 | RETAINERSPRINGSLOTTED | 1 | |
| 12 | SPRINGCOMPRESSIONBLACK | 1 | |
| 13 | NUT LOCK(10) (10 per pack) | 3 | |
| 14 | SPACER | 1 | |
| 15 | BUSHINGPIVOT TUBE | 1 | |
| 16 | NUTFLEXLOC(10) (10 per pack) | 1 | |
| 17 | WASHERWAVE SPRING(10) (10 per pack) | 2 | |
| 19 | BOLT | 1 | |
| 20 | BOLT | 1 | |
| 22 | WASHERFLAT(10) (10 per pack) | 2 | |
| 24 | SPACER OUTER | 2 | |
| 25 | BUSHING(10) (10 per pack) | 4 | |
| 27 | SCREW(10) (10 per pack) | 2 | |
| 28 | BOLT | 2 | |
| 31 | BOLTCARRIAGE | 2 |
