Polaris E975677 EURO 600 XCR SE E975677 EURO 600 XCR SE FRONT SUSPENSION and SKI 600 XCR 0975677 600 XCR SE H975677 and EUROPEAN 6 (4937963796B003)

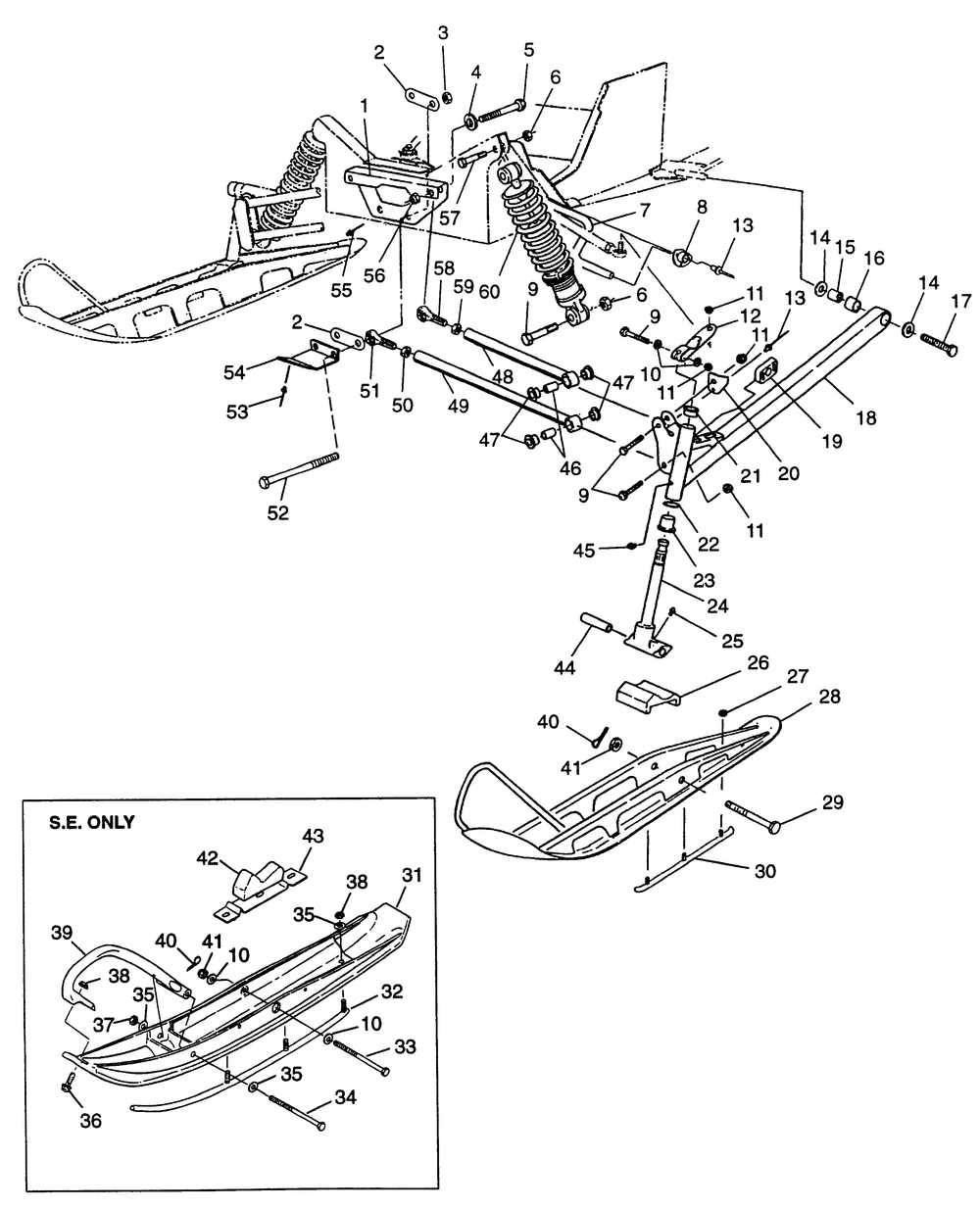

FRONT SUSPENSION and SKI 600 XCR 0975677 600 XCR SE H975677 and EUROPEAN 6 (4937963796B003)
№ Наименование Примечание Кол-во
2 STRAPSPACER BOTTOM 2
3 NUT FLEXOC 2
4 WASHER THRUST 2
5 BOLT 2
6 NUTNYLOK(10) (10 per pack) 4
8 BUSHINGSWAY BAR* 2
9 BOLT 6
10 WASHER 4
11 NUT LOCK(10) (10 per pack) 6
12 SUBSTITUTED BY 9999999 1
13 RIVET-3/16-.214-.420 (50) * (50 per pack) 8
14 WASHER(10) (10 per pack) 4
15 TUBE BUSHING 2
16 PIVOTRUBBER 2
17 BOLT(10) * (10 per pack) 2
19 SLIDESWAYBAR5/8* 2
20 STOPRHSTRGBLK. 1
21 BUSHING-FLANGE 2
22 BUSHING(10) (10 per pack) 2
23 BUSHINGFLANGED(10) (10 per pack) 2
24 SHAFTSPINDLETRLGBLK 2
25 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
26 STOP RUBBER 2
27 NUTNYLOK(10) (10 per pack) 6
28 SKI WELD 2
29 SCREW(10) (10 per pack) 2
30 SKAGPR.3" CARBIDE(STEEL SKI) (Pair) 1
33 SCREW 2
34 BOLT 2
35 WASHER 6
36 BOLT 2
38 NUTFLANGE(10) (10 per pack) 8
39 TOE-PLASTIC SKIBLK 2
40 PIN-COTTER(10) (10 per pack) 2
41 NUT CASTLE(10) (10 per pack) 2
42 STOPRUBBER 2
43 SUPPORTSKIRUBBERBLK 2
44 BUSHINGPIVOT 2
45 FITTINGLUBRICATIONTHREADED(10 2
46 BUSHING-RADIUS ROD(10) (10 per pack) 4
47 BUSHRAD.ROD PIVOTOUT.* 8
50 NUT-JAM(10) (10 per pack) 2
51 ROD END-1/2PL.745 WIDEFM 2
52 BOLT 2
53 RIVET(50) (50 per pack) 4
55 RIVETINTERLOCKB(50) (50 per pack) 6
56 NUTFLEXLOCK 2
57 SCREW(10) (10 per pack) 2
58 ROD END-RADIUSRH7/16" 2
59 NUTJAM(10) (10 per pack) 2
60 SPRINGCOMPRESSIONBLACK [Lux] 2
60 RETAINERSPRINGSLOTTED 2
