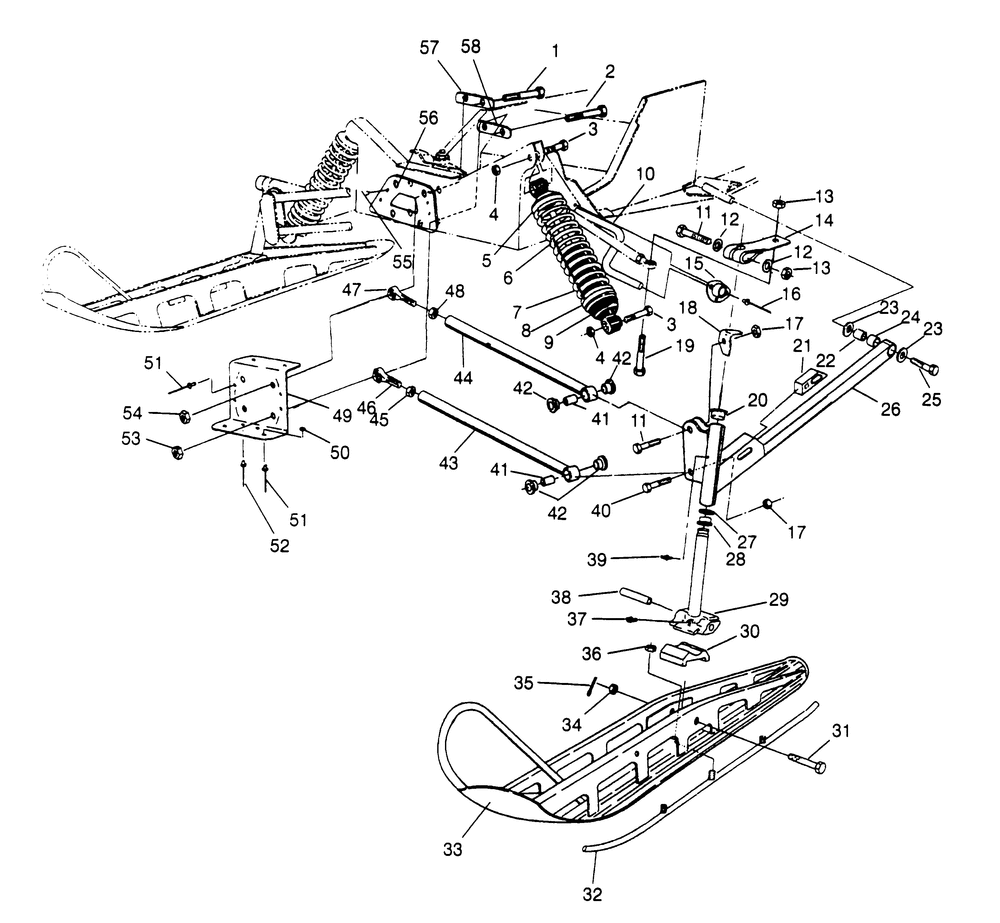

FRONT SUSPENSION and SKI 500 CARB 0962764 (4931873187A013)

Корзина пуста
Polaris E962564 EURO 500 CARB SKS E962564 EURO 500 CARB SKS FRONT SUSPENSION and SKI 500 CARB 0962764 (4931873187A013)
FRONT SUSPENSION and SKI 500 CARB 0962764 (4931873187A013)
№ Наименование Примечание Кол-во
1 BOLT 2
2 BOLT 2
3 SCREW(10) (10 per pack) 4
4 NUTNYLOK(10) (10 per pack) 4
5 RETAINER-TOP 2
6 SPRINGCOMP.BLK. 2
7 SLEEVESPRING PROTECTOR 2
8 CAMADJUSTING SPRING 2
12 WASHER 4
13 NUT LOCK(10) (10 per pack) 4
14 ARM STEERING 2
16 RIVET(50) (50 per pack) 6
17 NUTFLEXLOC(10) (10 per pack) 4
19 BOLT 2
20 BUSHING-FLANGE 2
22 TUBETRAILING ARM 2
23 WASHER(10) (10 per pack) 4
25 BOLT(10) * (10 per pack) 2
27 BUSHING(10) (10 per pack) 2
28 BUSHINGFLANGED(10) (10 per pack) 2
29 SPINDLE BLK. 2
31 SCREW(10) (10 per pack) 2
32 SKAGPR.3" CARBIDE(STEEL SKI) (Pair) 1
33 SKI WELD BLK 2
34 NUT CASTLE(10) (10 per pack) 2
35 PIN-COTTER(10) (10 per pack) 2
36 NUTNYLOK(10) (10 per pack) 6
37 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
38 BUSHINGPIVOT 2
39 FITTINGLUBRICATIONTHREADED(10 2
40 BOLT 2
41 BUSHING-RADIUS ROD(10) (10 per pack) 4
42 BUSHRAD.ROD PIVOTOUT.* 8
45 NUT-JAM(10) (10 per pack) 2
46 ROD END-RADIUSRHLOWER 2
47 ROD END 2
48 NUTJAM(10) (10 per pack) 2
49 SUBSTITUTED BY 9999999 1
50 WASHER13/64X1/2X18GAFL-Y (10) (10 per pack) 2
51 RIVET BLIND(50) * (50 per pack) 10
52 RIVET3/16X.402(50) (50 per pack) 2
53 NUT FLEXOC 2
54 NUTFLEXLOCK 2
55 RIVETINTERLOCKZ(50) * (50 per pack) 4
56 SUBSTITUTED BY 9999999 1
57 STRAPSPACER TOP 1
58 STRAPSPACER BOTTOM 1
