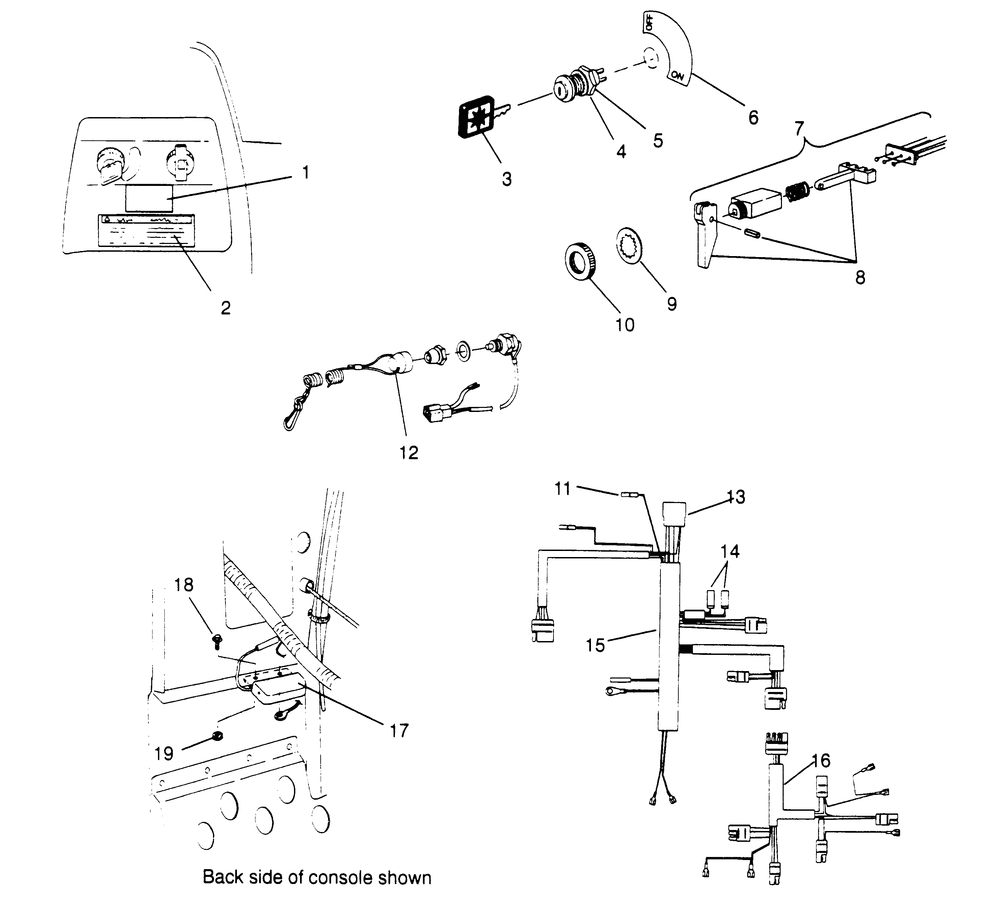

IGNITION and WIRE HARNESS 500 CARB 0962764 500 CARB SKS 0962564 500 CARB (4931873187B006)

Корзина пуста
Polaris E962564 EURO 500 CARB SKS E962564 EURO 500 CARB SKS IGNITION and WIRE HARNESS 500 CARB 0962764 500 CARB SKS 0962564 500 CARB (4931873187B006)
IGNITION and WIRE HARNESS 500 CARB 0962764 500 CARB SKS 0962564 500 CARB (4931873187B006)
№ Наименование Примечание Кол-во
3 SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.]. 1
7 CABLE CHOKE (TWIN) 1
8 KIT-CHOKE CONTROL [INCL. ANCHOR FLIPPER PIN] 1
9 WASHER-LOCK 1
10 NUT 1
11 HOUSINGSOCKET 1
12 TETHER SWITCH KIT COILED FITS (Euro) 1
13 HOUSING 1
14 HOUSING1 CIRCUIT 1
17 KIT-REGULATORAC LR7-LR9 1
18 SCREWW/WASHER 2
19 NUT NYLOK 10-24 Y 2
