Polaris 0952774 500 EFI 0952774 500 EFI FRONT SUSPENSION and SKI 500 EFI 0952774 EFI SKS 0952574 EFI SKS PT 09 (4929052905B003)

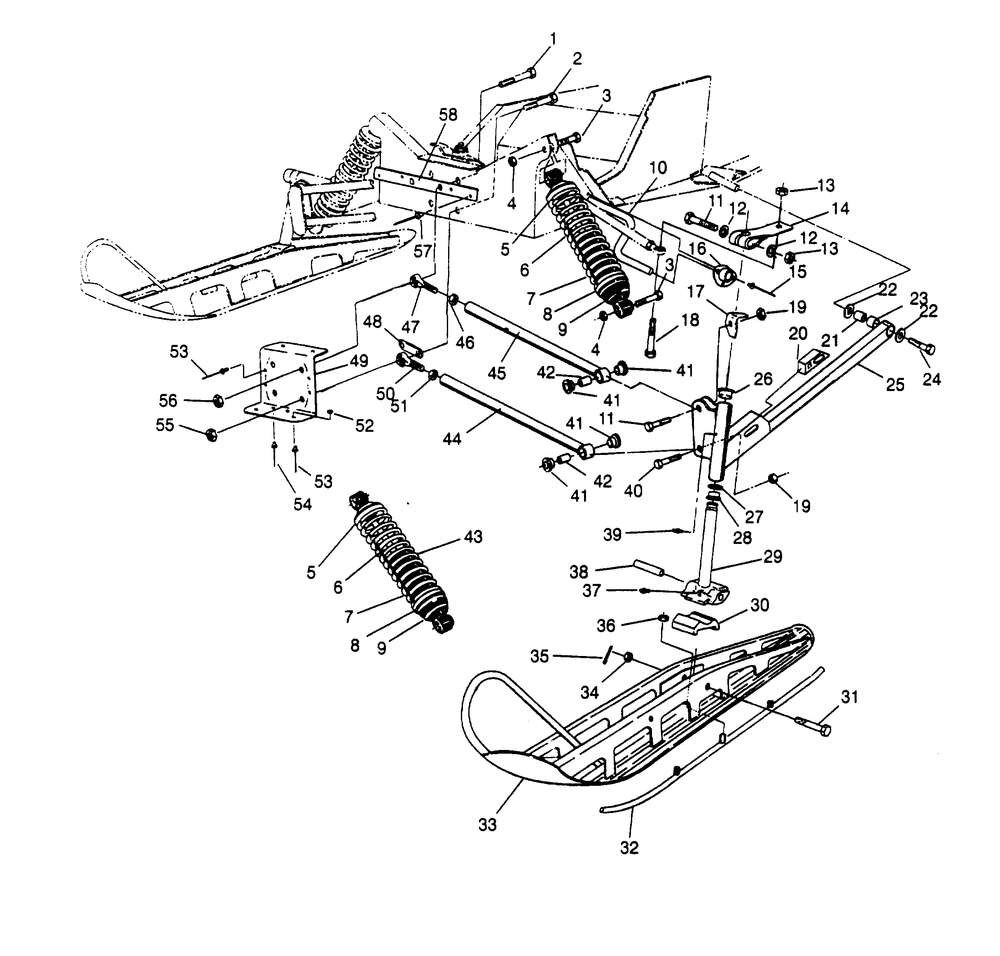

FRONT SUSPENSION and SKI 500 EFI 0952774 EFI SKS 0952574 EFI SKS PT 09 (4929052905B003)
№ Наименование Примечание Кол-во
1 BOLT 2
2 BOLT 2
3 SCREW(10) (10 per pack) 4
4 NUTNYLOK(10) (10 per pack) 4
5 RETAINER-TOP 2
6 SPRINGCOMP.BLK. 2
7 SLEEVESPRING PROTECTOR 2
8 CAMADJUSTING SPRING 2
11 BOLT 4
12 WASHER 4
13 NUT LOCK(10) (10 per pack) 4
15 RIVET(50) (50 per pack) 6
18 BOLT 2
19 NUTFLEXLOC(10) (10 per pack) 4
21 TUBETRAILING ARM 2
22 WASHER(10) (10 per pack) 4
24 BOLT(10) * (10 per pack) 2
26 BUSHING-FLANGE 2
27 BUSHING(10) (10 per pack) 2
28 BUSHINGFLANGED(10) (10 per pack) 2
29 SPINDLE BLK. 2
31 SCREW(10) (10 per pack) 2
32 SKAGPR.3" CARBIDE(STEEL SKI) (Pair) 1
32 60 DEG4"CARBIDE(STEEL SKI) 1
33 SKI WELD BLK 2
34 NUT CASTLE(10) (10 per pack) 2
35 PIN-COTTER(10) (10 per pack) 2
36 NUTNYLOK(10) (10 per pack) 6
37 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
38 BUSHINGPIVOT 2
39 FITTINGLUBRICATIONTHREADED(10 2
40 BOLT (Euro) 2
41 BUSHRAD.ROD PIVOTOUT.* 8
42 BUSHING-RADIUS ROD(10) (10 per pack) 2
44 RODRADLOW STDBLK. (SKS) 2
46 NUTJAM(10) (10 per pack) 2
47 ROD END-RADIUSRHLOWER 2
49 SUBSTITUTED BY 9999999 1
50 ROD END 2
51 NUT-JAM(10) (10 per pack) 2
52 WASHER13/64X1/2X18GAFL-Y (10) (10 per pack) 2
53 RIVET BLIND(50) * (50 per pack) 10
54 RIVET3/16X.402(50) (50 per pack) 2
55 NUT FLEXOC 2
56 NUTFLEXLOCK 2
57 RIVETINTERLOCKZ(50) * (50 per pack) 4
58 BRACEBULKHEAD 1
