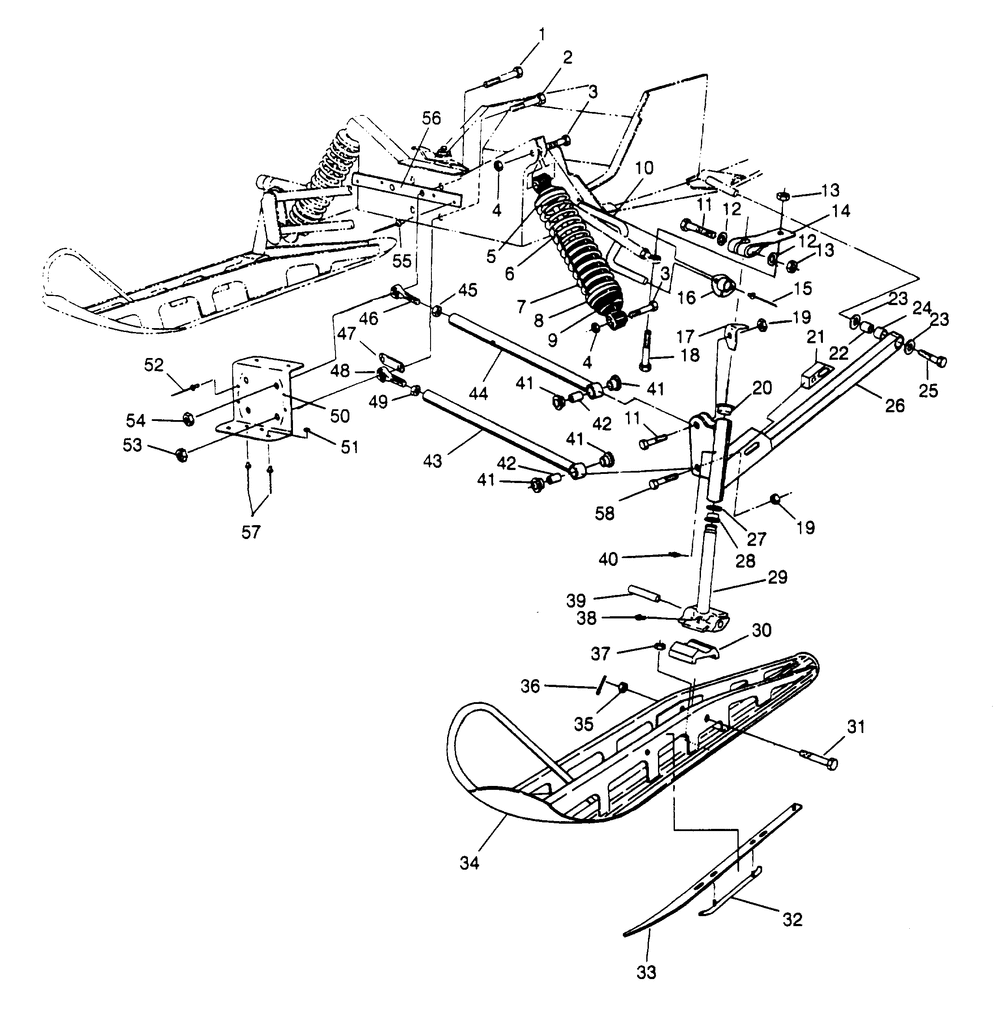

FRONT SUSPENSION and SKI CLASSIC 0952865 (4929072907B001)

Корзина пуста
Polaris 0952865 CLASSIC 0952865 CLASSIC FRONT SUSPENSION and SKI CLASSIC 0952865 (4929072907B001)
FRONT SUSPENSION and SKI CLASSIC 0952865 (4929072907B001)
№ Наименование Примечание Кол-во
1 BOLT 2
2 BOLT 2
3 SCREW(10) (10 per pack) 4
4 NUTNYLOK(10) (10 per pack) 4
5 RETAINER-TOP 2
7 SLEEVESPRING PROTECTOR 2
8 CAMADJUSTING SPRING 2
11 BOLT 4
12 WASHER 4
13 NUT LOCK(10) (10 per pack) 4
15 RIVET(50) (50 per pack) 6
18 BOLT 2
19 NUTFLEXLOC(10) (10 per pack) 4
20 BUSHING-FLANGE 2
22 TUBETRAILING ARM 2
23 WASHER(10) (10 per pack) 4
25 BOLT(10) * (10 per pack) 2
27 BUSHING(10) (10 per pack) 2
28 BUSHINGFLANGED(10) (10 per pack) 2
29 SPINDLE BLK. 2
31 SCREW(10) (10 per pack) 2
32 SKAG BLK. ** 2
33 PLATE SKAG 1
34 SKI WELD BLK 2
35 NUT CASTLE(10) (10 per pack) 2
36 PIN-COTTER(10) (10 per pack) 2
37 NUTNYLOK(10) (10 per pack) 6
38 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
39 BUSHINGPIVOT 2
40 FITTINGLUBRICATIONTHREADED(10 2
41 BUSHRAD.ROD PIVOTOUT.* 8
42 BUSHING-RADIUS ROD(10) (10 per pack) 4
45 NUTJAM(10) (10 per pack) 2
46 ROD END 2
48 ROD END-RADIUSRHLOWER 2
49 NUT-JAM(10) (10 per pack) 2
50 SUBSTITUTED BY 9999999 1
51 WASHER13/64X1/2X18GAFL-Y (10) (10 per pack) 2
52 RIVET BLIND(50) * (50 per pack) 10
53 NUT FLEXOC 2
54 NUTFLEXLOCK 2
55 RIVETINTERLOCKB(50) (50 per pack) 4
56 BRACEBULKHEAD 1
57 RIVET3/16X.402(50) (50 per pack) 2
58 BOLT (Euro) 2
