Polaris 0956756 XLT SP LT 0956756 XLT SP LT FRONT SUSPENSION and SKI - E956756 (4930763076B002)

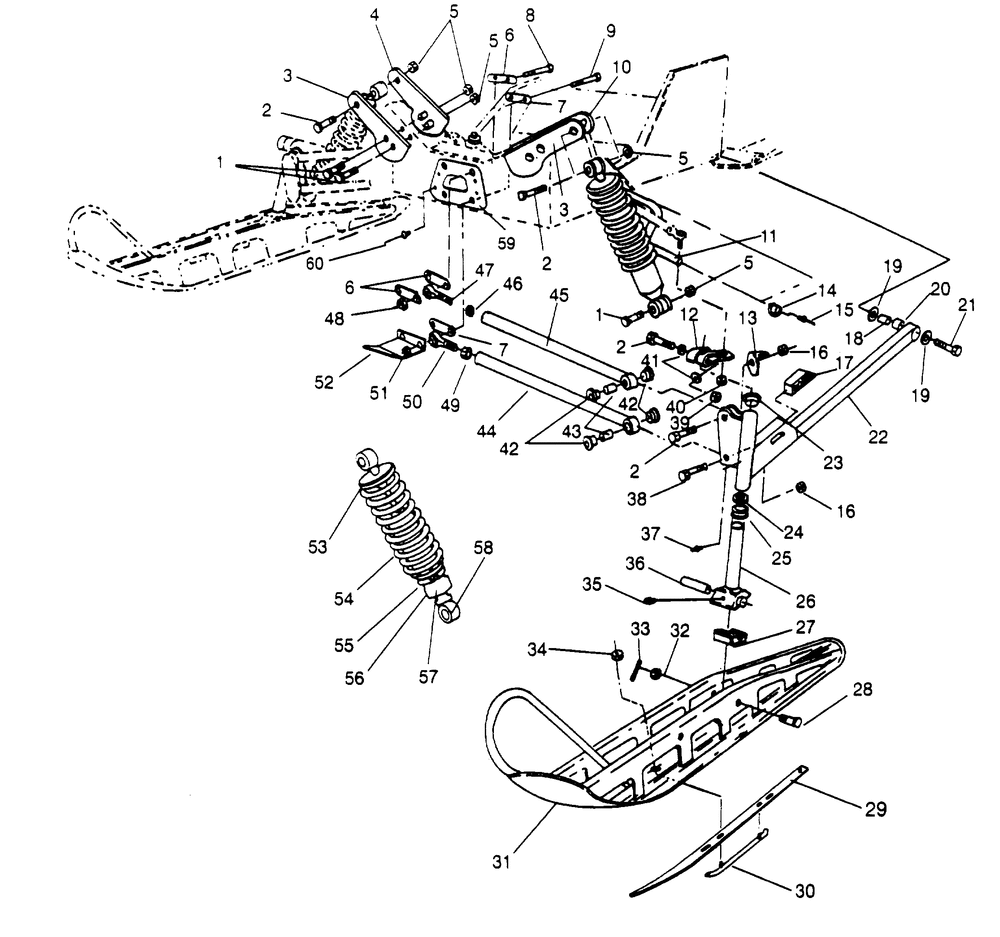

FRONT SUSPENSION and SKI - E956756 (4930763076B002)
№ Наименование Примечание Кол-во
1 SCREW(10) (10 per pack) 6
2 BOLT 6
4 MTRHSHOCK EXT.BLK. 1
5 NUTNYLOK(10) (10 per pack) 8
6 STRAPSPACER TOP 3
7 STRAPSPACER BOTTOM 2
8 BOLT 2
9 BOLT 2
14 BUSHINGSWAYBAR* 2
15 RIVET-3/16-.214-.420 (50) * (50 per pack) 6
16 NUTFLEXLOC(10) (10 per pack) 4
18 PIVOTRUBBER 2
19 WASHER(10) (10 per pack) 4
20 TUBE BUSHING 2
21 BOLT(10) * (10 per pack) 2
23 BUSHING-FLANGE 2
24 BUSHING(10) (10 per pack) 2
25 BUSHINGFLANGED(10) (10 per pack) 2
26 SPINDLE BLK. 2
28 SCREW(10) (10 per pack) 2
29 PLATE SKAG 2
30 SKAG BLK. ** 2
31 SKI WELD BLK 2
32 NUT CASTLE(10) (10 per pack) 2
33 PIN-COTTER(10) (10 per pack) 2
34 NUTNYLOK(10) (10 per pack) 6
35 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
36 BUSHINGPIVOT 2
37 FITTINGLUBRICATIONTHREADED(10 2
38 BOLT (Euro) 2
39 NUT LOCK(10) (10 per pack) 4
41 WASHER 4
42 BUSHRAD.ROD PIVOTOUT.* 8
43 BUSHING-RADIUS ROD(10) (10 per pack) 4
45 RODRADBLK. 2
46 NUTJAM(10) (10 per pack) 2
47 ROD END-RADIUSRH7/16" 2
48 NUTFLEXLOCK 2
49 NUT-JAM(10) (10 per pack) 2
50 ROD END-1/2PL.745 WIDEFM 2
51 NUT FLEXOC 2
56 RETAINERSPRINGBODYTHREADED 1
57 RINGSPRING PRELOAD ADJ. 1
59 SUBSTITUTED BY 9999999 2
60 RIVETINTERLOCKZ(50) * (50 per pack) 4
