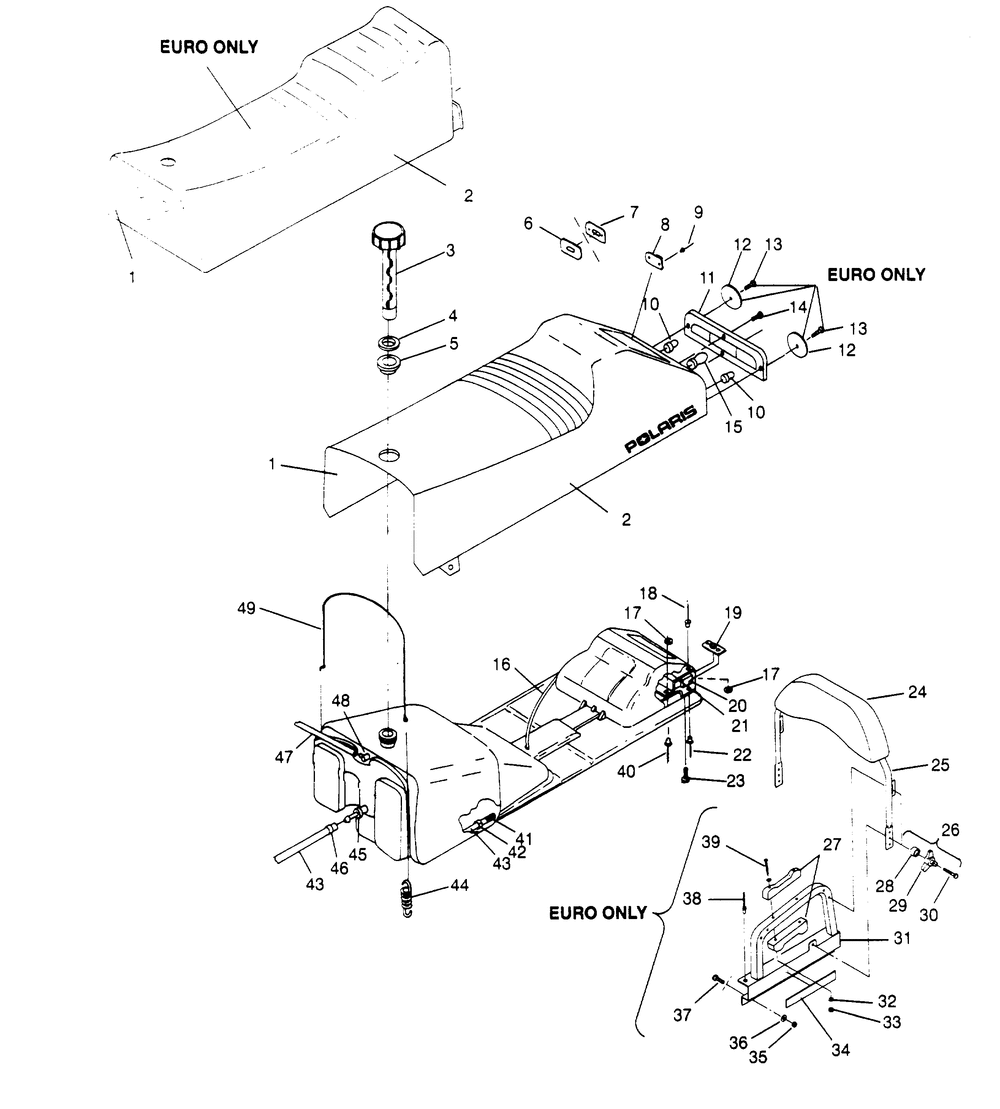

SEAT and GAS TANK ASSEMBLY Storm 0950782 Storm SKS 0950582 Euro Storm E9 (4929012901A008)

Корзина пуста
Polaris 0950782 STORM 0950782 STORM SEAT and GAS TANK ASSEMBLY Storm 0950782 Storm SKS 0950582 Euro Storm E9 (4929012901A008)
SEAT and GAS TANK ASSEMBLY Storm 0950782 Storm SKS 0950582 Euro Storm E9 (4929012901A008)
№ Наименование Примечание Кол-во
2 ASM-SEAT COVER2-UP (Euro) 1
3 CAPGASW/GAUGE 1
4 GASKET GAS CAP 1
5 GROMMETFUELTANK 1
6 GROMMETRELATCH1"BOTT. 1
7 GROMMETRELATCH1"TOP 1
8 TWISTLOCKRELATCH1"W/HOLE(10) (10 per pack) 1
9 RIVET(10) (10 per pack) 4
10 BULBTAILLIGHT(10) (10 per pack) 2
14 SCREW(10) (10 per pack) 4
15 BULB 1
17 WASHER 5
18 RIVET BLIND(50) * (50 per pack) 3
19 NUTRETAINER-WELD. 2
20 HOUSING-TAILLIGHT 1
21 COVERT/L PROTECTOR 1
22 RIVET(10) (10 per pack) 4
23 SCREW(10) (10 per pack) 2
26 KNOB ASMBACKREST 4
27 GRIP-HAND W/INSERT (Euro SKS) 4
29 KNOB BACKREST 4
30 SCREW 4
32 WASHERFLAT 8
33 NUT NYLOK 10-24 Y 4
34 REFLECTOR RED [CGBA ONLY] 2
35 NUT NYLOK 6
36 WASHERFLAT(10) (10 per pack) 6
37 BOLT 6
38 RIVETINTERLOCKB(50) (50 per pack) 6
39 SCREW 4
40 RIVET(50) (50 per pack) 2
41 PICK-UP-FUELW/FILTER105MICRN 1
42 RING COMPRESSION 2
43 LINEFUEL1/4 ID(1525 CM.) [BULK SVC] 0
44 SPRING(10) (10 per pack) 1
45 FITTING - OUTLET 1
46 CLAMPHOSE(10) (10 per pack) 2
47 LINEFUEL1/8 ID600 CM. 0
48 FITTING90 DEG1/8 1
