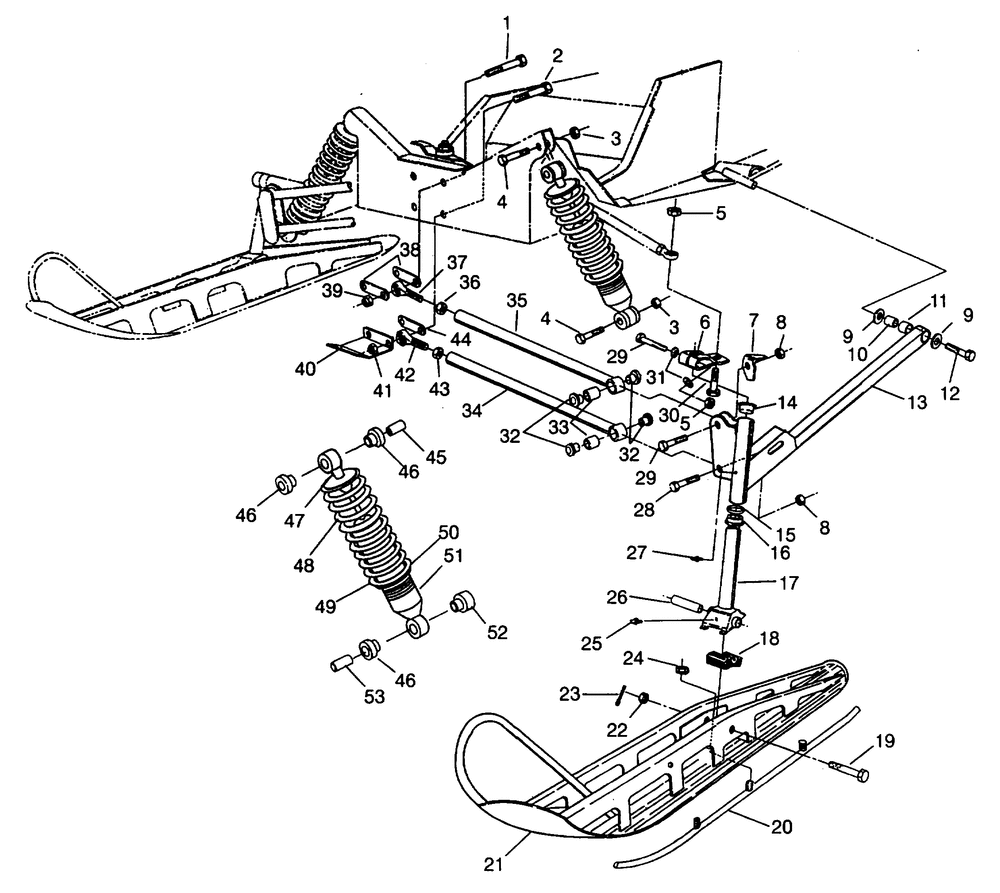

FRONT SUSPENSION and SKI 440 XCR 0941760 (4925182518011A)

Корзина пуста
Polaris 0941760 440 XCR 0941760 440 XCR FRONT SUSPENSION and SKI 440 XCR 0941760 (4925182518011A)
FRONT SUSPENSION and SKI 440 XCR 0941760 (4925182518011A)
№ Наименование Примечание Кол-во
1 BOLT 2
2 BOLT 2
3 NUTNYLOK(10) (10 per pack) 4
4 SCREW(10) (10 per pack) 4
5 NUT LOCK(10) (10 per pack) 4
6 ARM STEERING 2
8 NUTFLEXLOC(10) (10 per pack) 4
9 WASHER(10) (10 per pack) 4
10 TUBETRAILING ARM 2
12 BOLT(10) * (10 per pack) 2
13 ARMTRAILINGRH 1
14 BUSHING-FLANGE 2
15 BUSHING(10) (10 per pack) 2
16 BUSHINGFLANGED(10) (10 per pack) 2
19 SCREW(10) (10 per pack) 2
20 SKAGPR.3" CARBIDE(STEEL SKI) (Pair) 1
21 SKI WELD BLK 2
22 NUT CASTLE(10) (10 per pack) 2
23 PIN-COTTER(10) (10 per pack) 2
24 NUTNYLOK(10) (10 per pack) 6
25 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
26 BUSHINGPIVOT 2
27 FITTINGLUBRICATIONTHREADED(10 2
28 BOLT (Euro) 2
29 BOLT 4
31 WASHER 4
32 BUSHRAD.ROD PIVOTOUT.* 8
33 BUSHING-RADIUS ROD(10) (10 per pack) 4
36 NUTJAM(10) (10 per pack) 2
37 ROD END-RADIUSRH7/16" 2
38 STRAPSPACER TOP 2
39 NUTFLEXLOCK 2
41 NUT FLEXOC 2
42 ROD END-1/2PL.745 WIDEFM 2
43 NUT-JAM(10) (10 per pack) 2
44 STRAPSPACER BOTTOM 2
45 BUSHING (1.16 IN.) 2
46 BUSHINGEYELET (.205) 6
47 RETAINERSPRINGSLOTTED 2
50 RETAINER SPRING BODY 2
53 BUSHING (1.34 IN.) 2
