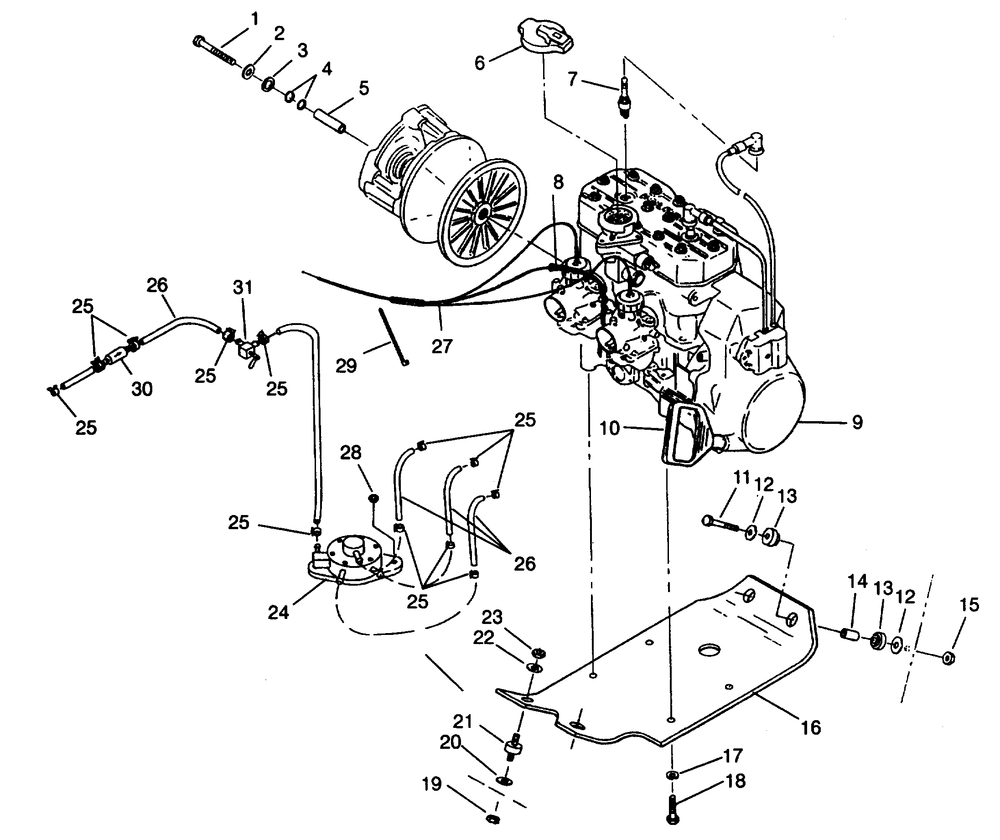

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BOLT | 1 | |
| 2 | WASHER LOCK | 1 | |
| 3 | WASHERCLUTCH RETAINER | 1 | |
| 4 | O RING(10) (10 per pack) | 2 | |
| 5 | SPACER | 1 | |
| 6 | CAP PRESSURE | 1 | |
| 7 | SPARKPLUG RN3C(4) (4 per pack) | 2 | |
| 8 | CONDUITCONVOLUTED(30 CM) | 0 | |
| 10 | HANDLE-RECOILBLK | 1 | |
| 11 | SCREW | 2 | |
| 12 | WASHER(10) * (10 per pack) | 4 | |
| 14 | SPACER (MTR.MT.) | 2 | |
| 15 | NUTFLANGE | 2 | |
| 17 | WASHERSPRING LOCK | 4 | |
| 18 | BOLT | 4 | |
| 19 | NUTFLEXLOC(10) (10 per pack) | 2 | |
| 20 | WASHER(10) (10 per pack) | 2 | |
| 22 | WASHERFLAT(10) (10 per pack) | 2 | |
| 23 | NUTNYLOK(10) (10 per pack) | 2 | |
| 25 | CLAMPHOSE(10) (10 per pack) | 12 | |
| 27 | SUBSTITUTED BY 9999999 | 1 | |
| 28 | NUT-NYLOK(10) (10 per pack) | 2 | |
| 29 | CABLE TIE (10) (10 per pack) | 1 | |
| 30 | FILTER FUEL(10) (10 per pack) | 1 | |
| 31 | VALVEFUEL SHUT-OFF | 1 |
