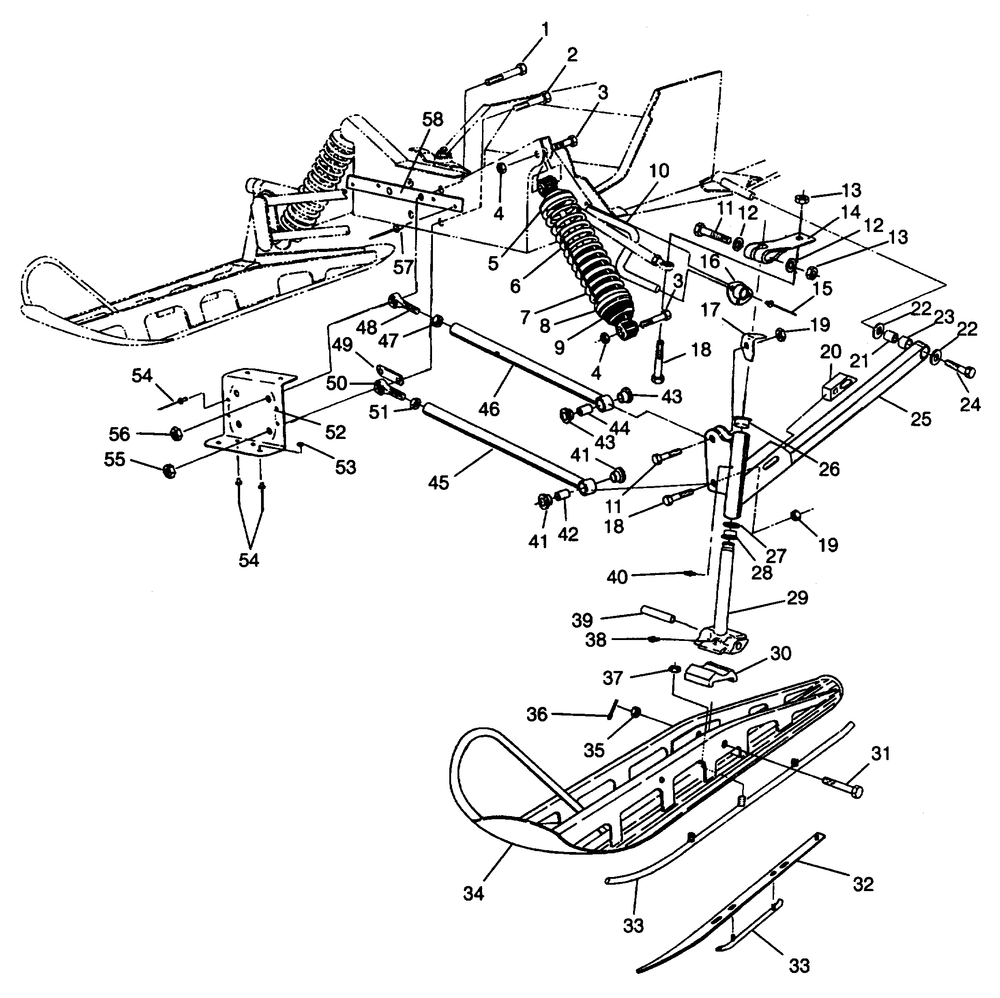

FRONT SUSPENSION and SKI 440 0942760 and 440 SKS 0942560 (4925072507009A)

Корзина пуста
Polaris 0942760 440 L/C 0942760 440 L/C FRONT SUSPENSION and SKI 440 0942760 and 440 SKS 0942560 (4925072507009A)
FRONT SUSPENSION and SKI 440 0942760 and 440 SKS 0942560 (4925072507009A)
№ Наименование Примечание Кол-во
1 BOLT 2
2 BOLT 2
3 SCREW(10) (10 per pack) 4
4 NUTNYLOK(10) (10 per pack) 4
5 RETAINER-TOP 2
7 SLEEVESPRING PROTECTOR 2
8 CAMADJUSTING SPRING 2
11 BOLT 4
12 WASHER 4
13 NUT LOCK(10) (10 per pack) 4
15 RIVET(50) (50 per pack) 6
18 BOLT (Euro) 2
19 NUTFLEXLOC(10) (10 per pack) 4
21 TUBETRAILING ARM 2
22 WASHER(10) (10 per pack) 4
24 BOLT(10) * (10 per pack) 2
26 BUSHING-FLANGE 2
27 BUSHING(10) (10 per pack) 2
28 BUSHINGFLANGED(10) (10 per pack) 2
29 SPINDLE BLK. 2
31 SCREW(10) (10 per pack) 2
32 PLATE SKAG 1
33 SKAG BLK. ** 2
33 SKAGPR.3" CARBIDE(STEEL SKI) (Pair) 2
34 SKI WELD BLK 2
35 NUT CASTLE(10) (10 per pack) 2
36 PIN-COTTER(10) (10 per pack) 2
37 NUTNYLOK(10) (10 per pack) 6
38 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
39 BUSHINGPIVOT 2
40 FITTINGLUBRICATIONTHREADED(10 2
41 BUSHINGOUTER RAD.ROD PIVOT 4
42 BUSHINGRAD.ROD PIVOT 2
43 BUSHRAD.ROD PIVOTOUT.* 4
44 BUSHINGRAD.ROD PIVOT 2
45 RODLOWER RADIUS (SKS) 2
46 RODUPPER RADIUS (SKS) 2
47 NUTJAM(10) (10 per pack) 2
48 ROD ENDRHWIDE SHLDER. 2
51 NUT-JAM(10) (10 per pack) 2
52 SUBSTITUTED BY 9999999 1
53 WASHER13/64X1/2X18GAFL-Y (10) (10 per pack) 2
54 RIVET BLIND(50) * (50 per pack) 10
55 NUT FLEXOC 2
56 NUTFLEXLOCK 2
57 RIVETINTERLOCKZ(50) * (50 per pack) 4
58 BRACEBULKHEAD 1
