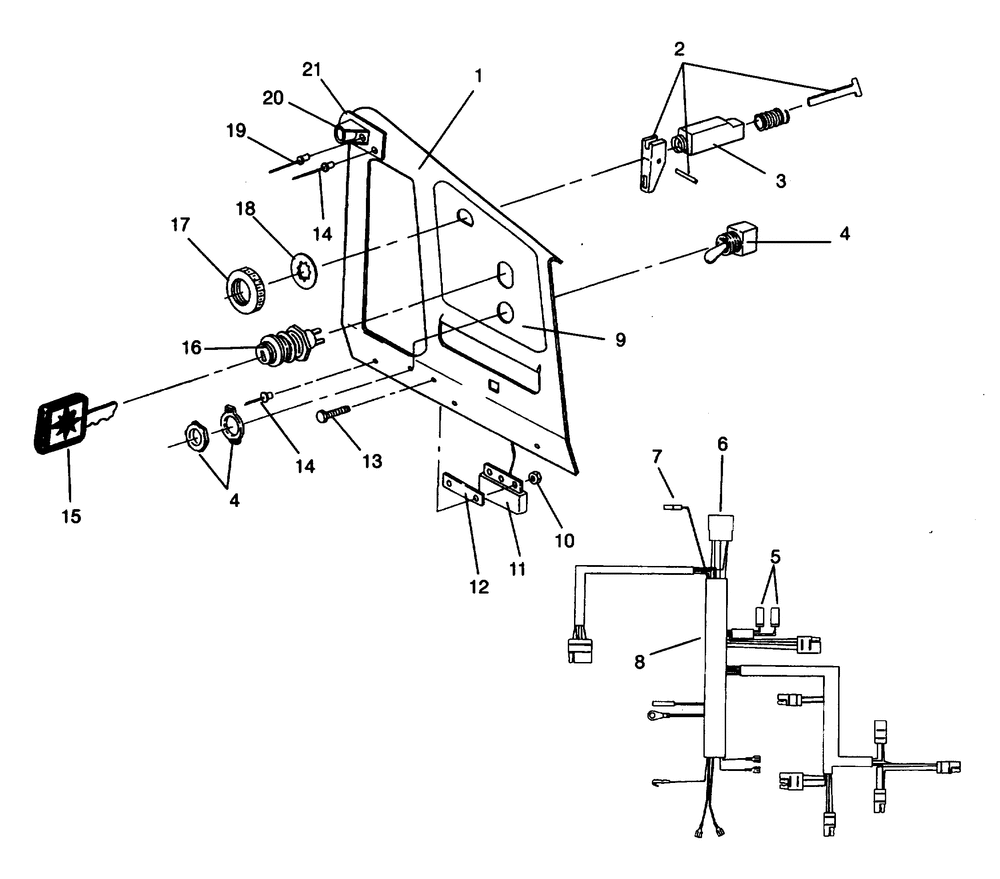

CONSOLE SPORT 0940443 and SPORT SKS 0940243 (4925052505004A)

Корзина пуста
Polaris 0940443 SPORT 0940443 SPORT CONSOLE SPORT 0940443 and SPORT SKS 0940243 (4925052505004A)
CONSOLE SPORT 0940443 and SPORT SKS 0940243 (4925052505004A)
№ Наименование Примечание Кол-во
2 KIT-CHOKE CONTROL [INCL. ANCHOR FLIPPER PIN] 1
3 CABLE CHOKE (TWIN) 1
5 HOUSING1 CIRCUIT 2
6 HOUSING 1
7 HOUSINGSOCKET 1
10 NUT NYLOK 10-24 Y 2
11 KIT-REGULATORAC LR7-LR9 1
12 HEAT SINK 1
13 SCREW 2
14 RIVETINTERLOCKB(50) (50 per pack) 5
15 SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.]. 2
17 NUT 1
18 WASHER-LOCK 1
19 RIVET(50) (50 per pack) 1
20 GUIDE RECOIL 1
