Polaris E940262 EURO TRAIL DELUXE E940262 EURO TRAIL DELUXE FRONT SUSPENSION and SKI TRAIL DELUXE E940262 (49273827380011)

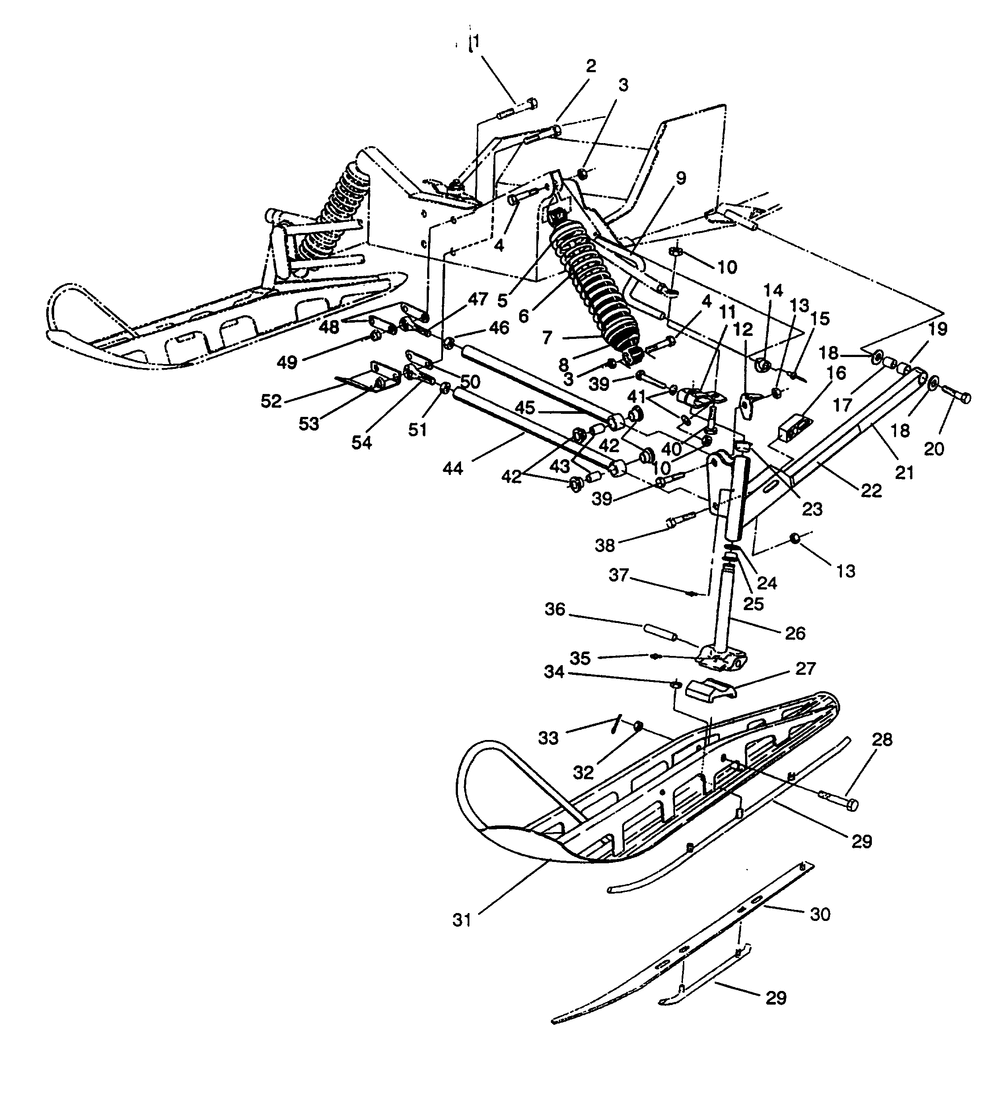

FRONT SUSPENSION and SKI TRAIL DELUXE E940262 (49273827380011)
№ Наименование Примечание Кол-во
1 BOLT 2
2 BOLT 2
3 NUTNYLOK(10) (10 per pack) 4
4 SCREW(10) (10 per pack) 4
5 RETAINER-TOP 2
6 SPRINGCOMP.BLK. 2
7 RETAINERSPRING 2
8 SHOCKFR.SUSP. 2
10 NUT LOCK(10) (10 per pack) 4
11 ARM STEERING 2
13 NUTFLEXLOC(10) (10 per pack) 4
15 RIVET(50) (50 per pack) 6
17 TUBETRAILING ARM 2
18 WASHER(10) (10 per pack) 4
20 BOLT(10) * (10 per pack) 2
23 BUSHING-FLANGE 2
24 BUSHING(10) (10 per pack) 2
25 BUSHINGFLANGED(10) (10 per pack) 2
26 SPINDLE BLK. 2
28 SCREW(10) (10 per pack) 2
29 SKAG CARBIDE EZ STEER 3" 120 (Pair) 1
30 PLATE SKAG 2
31 SKI WELD BLK 2
32 NUT CASTLE(10) (10 per pack) 2
33 PIN-COTTER(10) (10 per pack) 2
34 NUTNYLOK(10) (10 per pack) 6
35 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
36 BUSHINGPIVOT 2
37 FITTINGLUBRICATIONTHREADED(10 2
38 BOLT (Euro) 2
39 BOLT 4
41 WASHER 4
42 BUSHRAD.ROD PIVOTOUT.* 8
43 BUSHING-RADIUS ROD(10) (10 per pack) 4
46 NUTJAM(10) (10 per pack) 2
47 ROD END-RADIUSRH7/16" 2
48 STRAPSPACER TOP 2
49 NUTFLEXLOCK 2
50 STRAPSPACER BOTTOM 2
51 NUT-JAM(10) (10 per pack) 2
53 NUT FLEXOC 2
54 ROD END-1/2PL.745 WIDEFM 2
