Polaris E940869 EURO RXL TOURING E940869 EURO RXL TOURING FRONT SUSPENSION and SKI RXL TOURING E940869 (49274327430011)

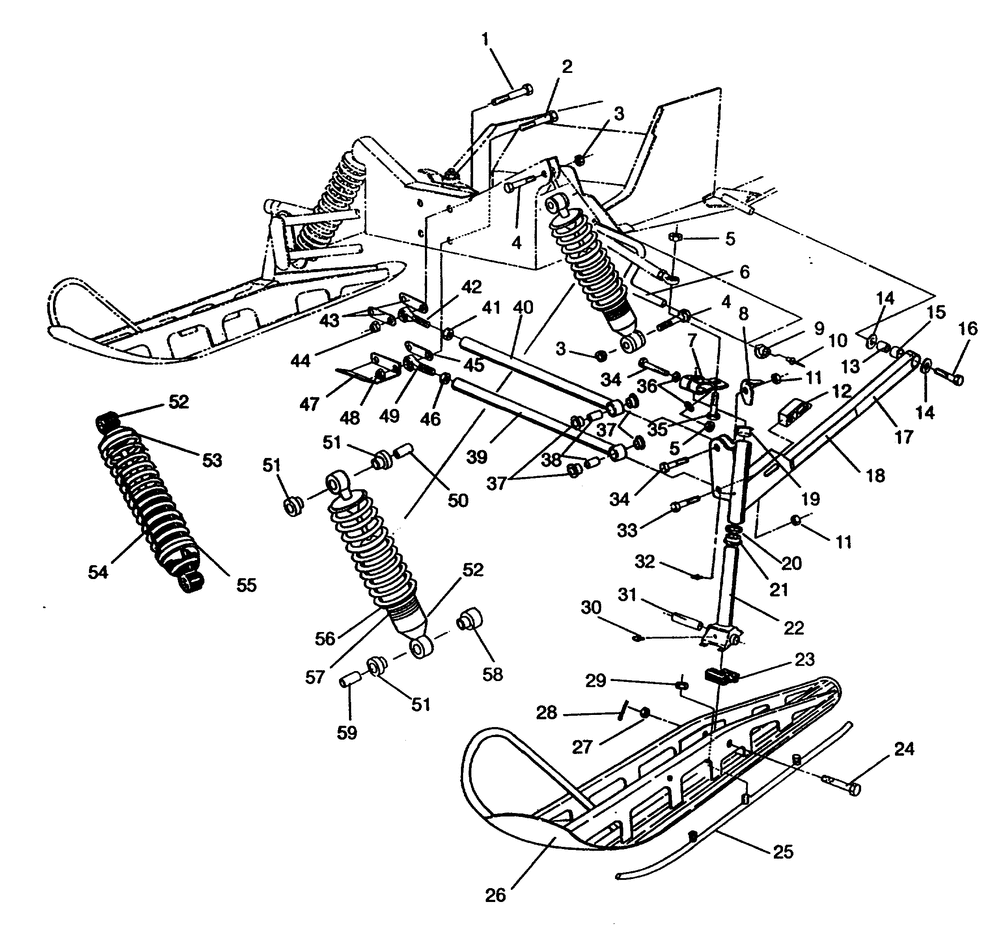

FRONT SUSPENSION and SKI RXL TOURING E940869 (49274327430011)
№ Наименование Примечание Кол-во
1 BOLT 2
2 BOLT 2
3 NUTNYLOK(10) (10 per pack) 4
4 SCREW(10) (10 per pack) 4
5 NUT LOCK(10) (10 per pack) 4
7 ARM STEERING 2
9 BUSHINGSWAYBAR* 2
10 RIVET(50) (50 per pack) 6
11 NUTFLEXLOC(10) (10 per pack) 4
12 SLIDE(FR.SUSP.)* 2
13 TUBETRAILING ARM 2
14 WASHER(10) (10 per pack) 4
16 BOLT(10) * (10 per pack) 2
19 BUSHING-FLANGE 2
20 BUSHING(10) (10 per pack) 2
21 BUSHINGFLANGED(10) (10 per pack) 2
22 SPINDLE BLK. 2
24 SCREW(10) (10 per pack) 2
25 PLATE SKAG 2
25 SKAG BLK. ** (Deluxe) 2
26 SKI WELD BLK 2
27 NUT CASTLE(10) (10 per pack) 2
28 PIN-COTTER(10) (10 per pack) 2
29 NUTNYLOK(10) (10 per pack) 6
30 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
31 BUSHINGPIVOT 2
32 FITTINGLUBRICATIONTHREADED(10 2
33 BOLT (Euro) 2
34 BOLT 4
36 WASHER 4
37 BUSHRAD.ROD PIVOTOUT.* 8
38 BUSHING-RADIUS ROD(10) (10 per pack) 4
41 NUTJAM(10) (10 per pack) 2
42 ROD END-RADIUSRH7/16" 2
43 STRAPSPACER TOP 2
44 NUTFLEXLOCK 2
45 STRAPSPACER BOTTOM 2
46 NUT-JAM(10) (10 per pack) 2
48 NUT FLEXOC 2
49 ROD END-1/2PL.745 WIDEFM 2
50 BUSHING (1.16 IN.) 2
51 BUSHINGEYELET (.205) 6
53 RETAINERSPRINGSLOTTED 1
55 RETAINERSPRING 2
56 RETAINER SPRING BODY 2
59 BUSHING (1.34 IN.) 2
