FRONT SUSPENSION and SKI 440 E942760 and 440 SKS E942560 (49273927390011)

Корзина пуста
Polaris E942560 EURU 440 SKS E942560 EURU 440 SKS FRONT SUSPENSION and SKI 440 E942760 and 440 SKS E942560 (49273927390011)

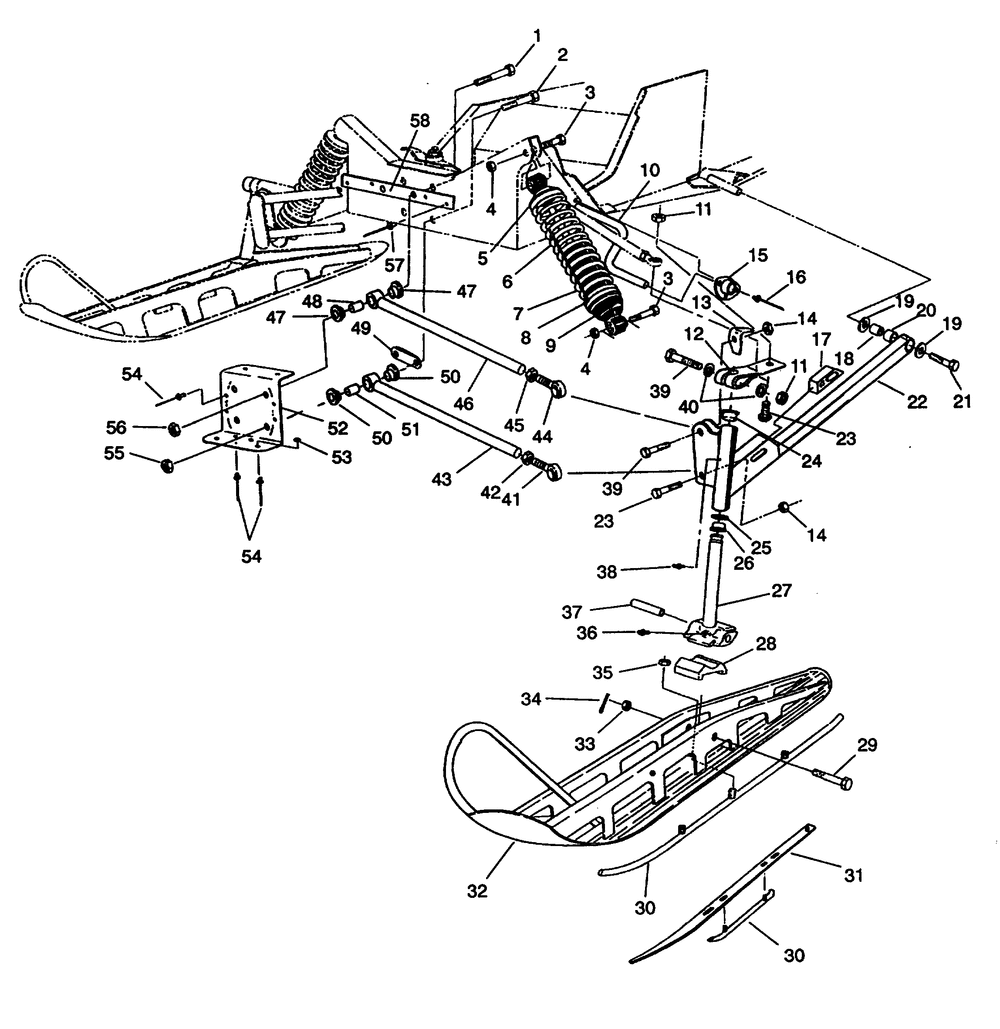

FRONT SUSPENSION and SKI 440 E942760 and 440 SKS E942560 (49273927390011)
№ Наименование Примечание Кол-во
1 BOLT 2
2 BOLT 2
3 SCREW(10) (10 per pack) 4
4 NUTNYLOK(10) (10 per pack) 4
5 RETAINER-TOP 2
7 SLEEVESPRING PROTECTOR 2
8 CAMADJUSTING SPRING 2
11 NUT LOCK(10) (10 per pack) 4
14 NUTFLEXLOC(10) (10 per pack) 4
16 RIVET(50) (50 per pack) 6
18 TUBETRAILING ARM 2
19 WASHER(10) (10 per pack) 4
21 BOLT(10) * (10 per pack) 2
23 BOLT (Euro) 2
24 BUSHING-FLANGE 2
25 BUSHING(10) (10 per pack) 2
26 BUSHINGFLANGED(10) (10 per pack) 2
27 SPINDLE BLK. 2
29 SCREW(10) (10 per pack) 2
30 SKAGPR.3" CARBIDE(STEEL SKI) (Pair) 2
30 SKAG BLK. ** (Deluxe) 2
31 PLATE SKAG 1
32 SKI WELD BLK 2
33 NUT CASTLE(10) (10 per pack) 2
34 PIN-COTTER(10) (10 per pack) 2
35 NUTNYLOK(10) (10 per pack) 6
36 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
37 BUSHINGPIVOT 2
38 FITTINGLUBRICATIONTHREADED(10 2
39 BOLT 4
40 WASHER 4
42 NUT-JAM(10) (10 per pack) 2
43 RODLOWER RADIUS (SKS) 2
44 ROD ENDRHWIDE SHLDER. 2
45 NUTJAM(10) (10 per pack) 2
46 RODUPPER RADIUS (SKS) 2
47 BUSHRAD.ROD PIVOTOUT.* 4
48 BUSHINGRAD.ROD PIVOT 2
50 BUSHINGOUTER RAD.ROD PIVOT 4
51 BUSHINGRAD.ROD PIVOT 2
52 SUBSTITUTED BY 9999999 1
53 WASHER13/64X1/2X18GAFL-Y (10) (10 per pack) 2
54 RIVET BLIND(50) * (50 per pack) 10
55 NUT FLEXOC 2
56 NUTFLEXLOCK 2
57 RIVETINTERLOCKB(50) (50 per pack) 4
