Polaris E943133 EURO LITE GT E943133 EURO LITE GT STEERING ASSEMBLY LITE GT E943133 (49273527350013)

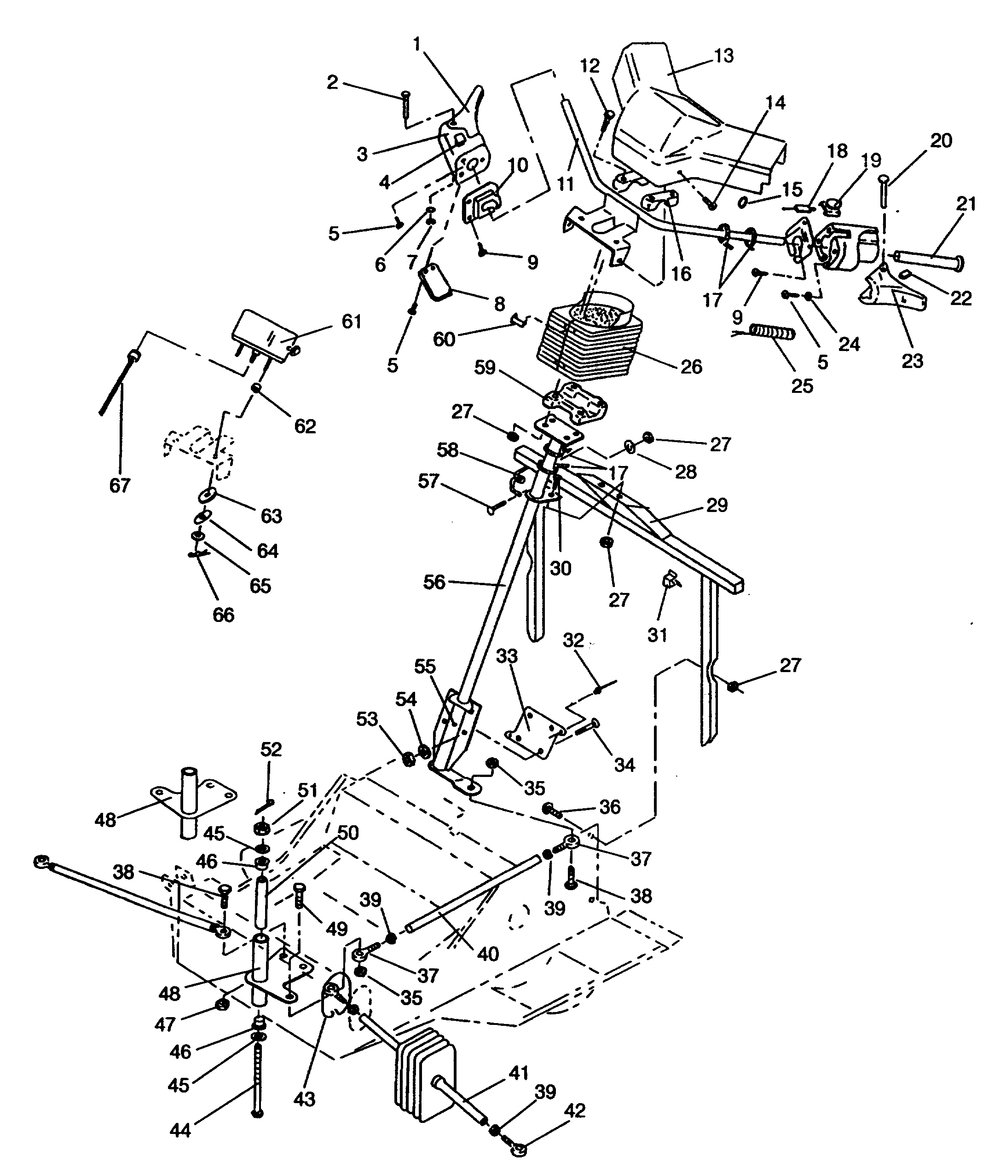

STEERING ASSEMBLY LITE GT E943133 (49273527350013)
№ Наименование Примечание Кол-во
1 LEVER-THROTTLE 1
1 ASM-LEVERHTRHI/LO30MM 1
2 PIN-RETAINING 1
3 BLOCKTHROTTLE/BRAKE (SKS) 2
4 SW-AUX SHUT-OFF CLOSEDHON 1
5 SCREW 16
6 WASHER 2
7 RINGRETAINING (10) (10 per pack) 1
8 HOLDER-WIRE 1
9 SCREWSET 2
10 BLOCK-ADAPTER 2
12 BOLT 4
14 SCREW 2
17 CABLE TIE (10) (10 per pack) 6
19 SWITCH DIMMER 1
20 RIVET(50) (50 per pack) 1
21 GRIPHANDLEBAR 2
22 CLIP-SPEED 1
23 LEVER-BRAKE 1
24 WASHER13/64X1/2X18GAFL-Y (10) (10 per pack) 1
25 HEATER GRIP ASM. 1
27 NUT-NYLOK(10) (10 per pack) 9
28 WASHERWROUGHT 1
29 HOOPSTRGBLK. 1
30 BOLT 2
32 RIVETINTERLOCKZ(50) * (50 per pack) 2
34 BOLTCARRIAGE 4
35 NUTFLEXLOC(10) (10 per pack) 2
36 BOLT 4
37 ROD ENDLH 1
37 ROD ENDRH 1
38 BOLT 3
39 NUTLH (10) (10 per pack) 3
39 NUTHEXRH(10) (10 per pack) 3
40 ROD DRAG LINK 1
42 ROD END RH. 2
42 ROD END LH. 2
44 BOLT 1
45 WASHER 3
46 BUSHING 2
47 NUT LOCK(10) (10 per pack) 2
48 STEERING CTR.BLK 1
49 SCREW 1
50 BUSHING SPACER 1
51 NUT CASTLE 1
52 PINCOTTER(10) (10 per pack) 1
53 NUTNYLOK(10) (10 per pack) 4
54 WASHERFLAT(10) (10 per pack) 4
55 FITTINGLUB/VEN 1
57 BOLTCARRIAGE 1
58 RINGMOUNTRECOILBLK. 1
59 BLOCKHANDLEBARBLK 1
63 SPACERSPEEDO.MTG. 2
64 PLATEMTG(SPEEDO) 2
65 WASHER FLAT 2
66 HAIRPIN COTTER 2
