CONSOLE CLASSIC / 0930864 and CLASSIC TOURING / 0930865 (4922952295013A)

Корзина пуста
Polaris 0930865 CLASSIC TOURING 0930865 CLASSIC TOURING CONSOLE CLASSIC / 0930864 and CLASSIC TOURING / 0930865 (4922952295013A)

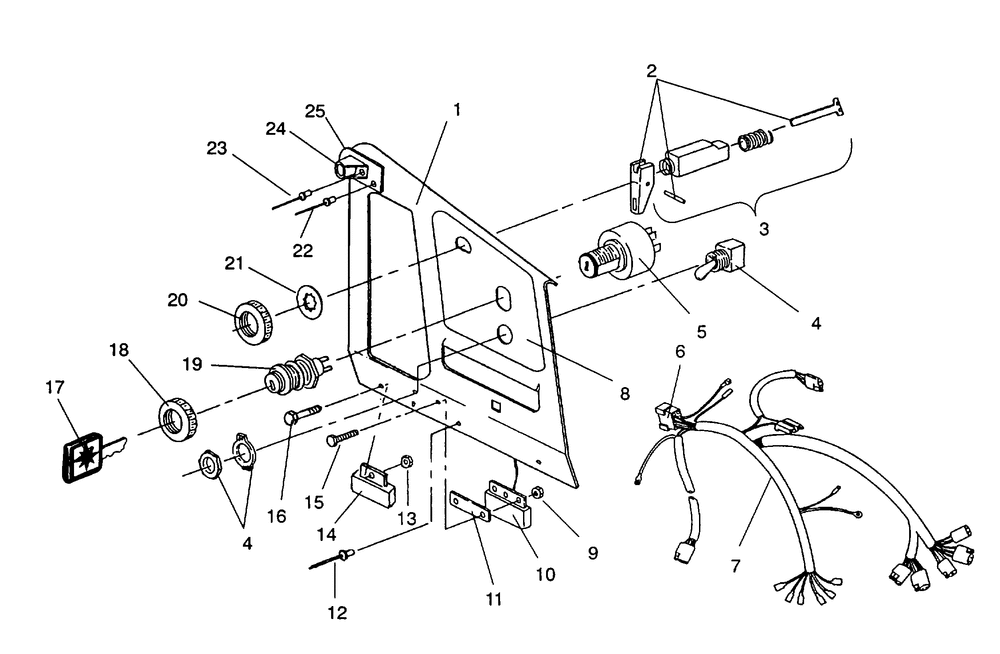

CONSOLE CLASSIC / 0930864 and CLASSIC TOURING / 0930865 (4922952295013A)
№ Наименование Примечание Кол-во
2 KIT-CHOKE CONTROL [INCL. ANCHOR FLIPPER PIN] 1
3 CABLE CHOKE (TWIN) 1
5 KIT-IGNITION SWITCHESCOMPLT 1
6 HOUSING 1
9 NUT NYLOK 10-24 Y 2
10 KIT-REGULATORAC LR7-LR9 1
11 HEAT SINK 1
12 RIVETINTERLOCKB(50) (50 per pack) 3
15 BOLT 2
17 SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.]. 1
20 NUT 1
21 WASHER-LOCK 1
23 RIVET(50) (50 per pack) 1
24 GUIDE RECOIL 1
