Polaris 0931760 440 XCR 0931760 440 XCR FRONT SUSPENSION and SKI 440 XCR / 0931760 (4923022302011A)

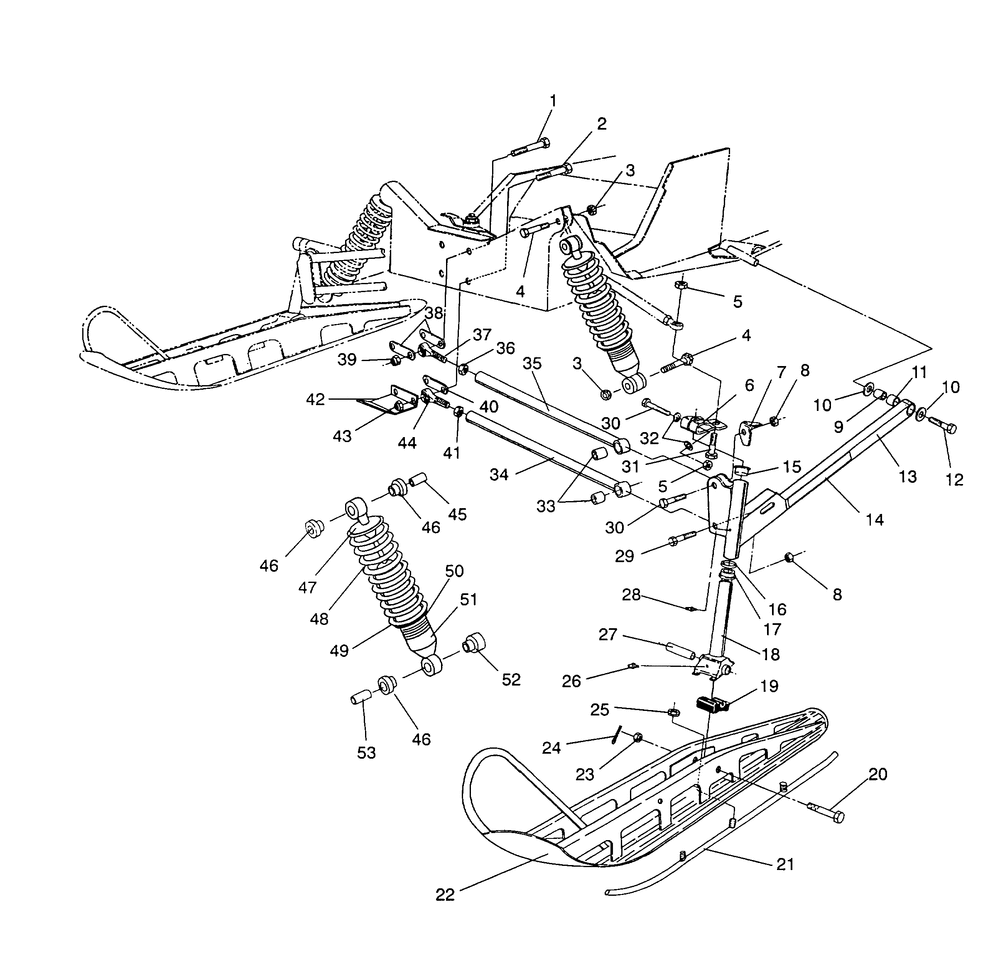

FRONT SUSPENSION and SKI 440 XCR / 0931760 (4923022302011A)
№ Наименование Примечание Кол-во
1 BOLT 2
2 BOLT 2
3 NUTNYLOK(10) (10 per pack) 4
4 SCREW(10) (10 per pack) 4
5 NUT LOCK(10) (10 per pack) 4
6 ARM STEERING 2
8 NUTFLEXLOC(10) (10 per pack) 4
9 TUBETRAILING ARM 2
10 WASHER(10) (10 per pack) 4
12 BOLT(10) * (10 per pack) 2
13 ARMTRAILINGRH 1
15 BUSHING-FLANGE 2
16 BUSHING(10) (10 per pack) 2
17 BUSHINGFLANGED(10) (10 per pack) 2
20 SCREW(10) (10 per pack) 2
21 SKAGPR.3" CARBIDE(STEEL SKI) (Pair) 1
22 SKI WELD BLK 2
23 NUT CASTLE(10) (10 per pack) 2
24 PIN-COTTER(10) (10 per pack) 2
25 NUTNYLOK(10) (10 per pack) 6
26 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
27 BUSHINGPIVOT 2
28 FITTINGLUBRICATIONTHREADED(10 2
29 BOLT (Euro) 2
30 BOLT 4
32 WASHER 4
33 BUSHING-RADIUS ROD(10) (10 per pack) 4
35 ROD RADIUS(BLK.) (Trail) 2
36 NUTJAM(10) (10 per pack) 2
37 ROD END-RADIUSRH7/16" 2
38 STRAPSPACER TOP 2
39 NUTFLEXLOCK 2
40 STRAPSPACER BOTTOM 2
41 NUT-JAM(10) (10 per pack) 2
43 NUT FLEXOC 2
44 ROD END-1/2PL.745 WIDEFM 2
45 BUSHING (1.16 IN.) 2
46 BUSHINGEYELET (.205) 6
47 RETAINERSPRINGSLOTTED 2
50 RETAINER SPRING BODY 2
53 BUSHING (1.34 IN.) 2
