CONSOLE 440 XCR / 0931760 (4923022302009A)

Корзина пуста
Polaris 0931760 440 XCR 0931760 440 XCR CONSOLE 440 XCR / 0931760 (4923022302009A)

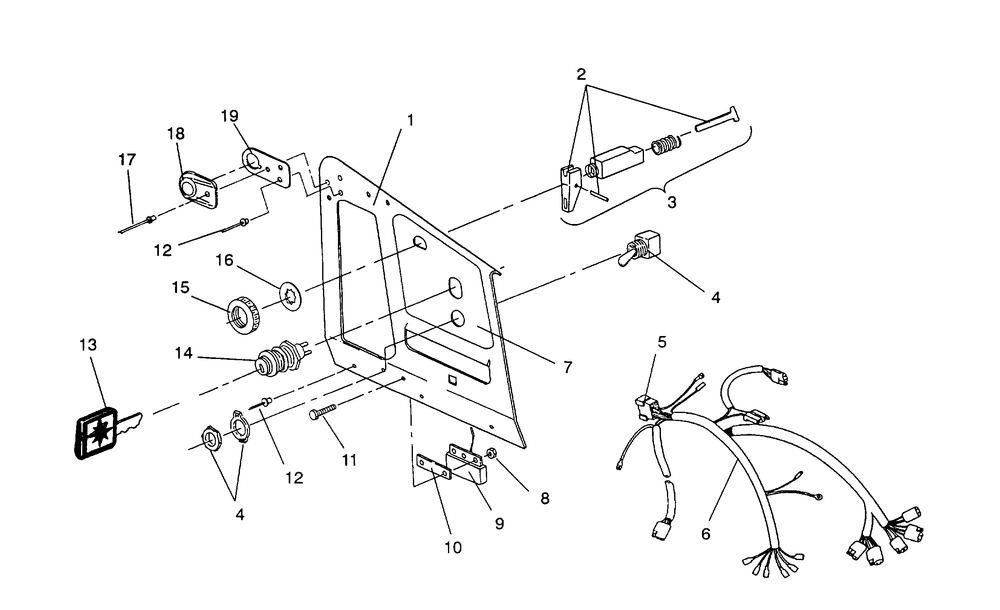

CONSOLE 440 XCR / 0931760 (4923022302009A)
№ Наименование Примечание Кол-во
2 KITCHOKE CONTROL 1
3 CABLE CHOKE (TRIPLE) (Incl. 7) 1
5 HOUSING 1
8 NUT NYLOK 10-24 Y 2
9 KIT-REGULATORAC LR7-LR9 1
10 HEAT SINK 1
11 BOLT 2
12 RIVETINTERLOCKB(50) (50 per pack) 5
13 SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.]. 1
15 NUT 1
16 WASHER-LOCK 1
17 RIVET(50) (50 per pack) 1
18 GUIDE RECOIL 1
