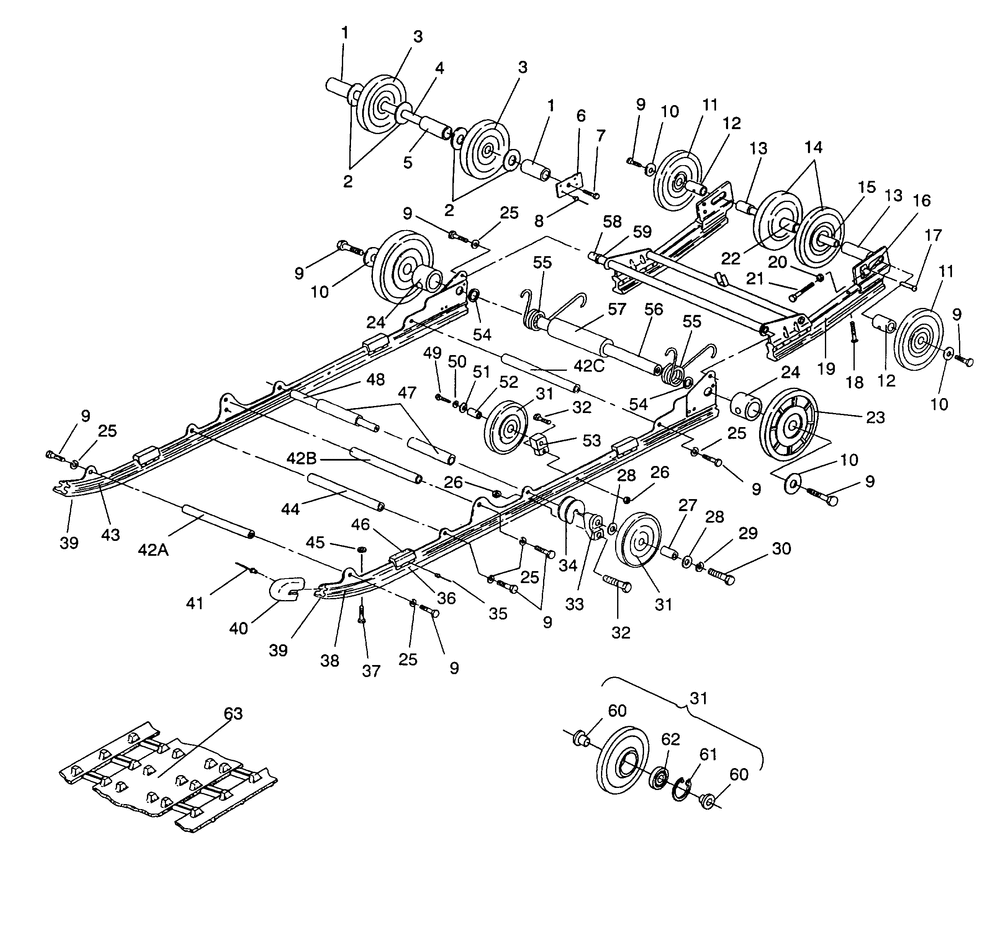

SUSPENSION ASSEMBLY WIDETRAK / 0932064 (4922982298019A)

Корзина пуста
Polaris 0932064 WIDE TRAK 0932064 WIDE TRAK SUSPENSION ASSEMBLY WIDETRAK / 0932064 (4922982298019A)
SUSPENSION ASSEMBLY WIDETRAK / 0932064 (4922982298019A)
№ Наименование Примечание Кол-во
1 SPACER OUTER 4
2 WASHER 8
3 WHEEL-TRACK CARRIER 4
5 SPACERBLKIN.CARRIER 2
6 PLATETUNNELCARRIERBLK. 4
7 BOLTNYLOCBLACK 4
8 RIVETSEMI-TUBE(10) * (10 per pack) 16
9 SCREW(10) (10 per pack) 14
11 WHEEL IDLER (Red) 2
14 WHEEL ASMBLK. 2
16 BLOCK-IDLER BOLT ADJ. 2
17 RIVET(50) (50 per pack) 4
18 SCREW(10) (10 per pack) 2
19 ASM-ARTICULATED RAIL (Incl. 18 19) 1
20 NUT 2
21 SCREW 2
24 TUBESPACERCTROUTSIDE 2
25 WASHERSPRING LOCK(10) (10 per pack) 10
26 NUT LOCK(10) (10 per pack) 4
27 EXTENSIONROLLER SPACER 2
28 WASHER FLAT 4
29 WASHERSPRING LOCK 2
30 BOLT 2
31 WHEELIDLER 5.35" 4
32 BOLT 2
33 TUBEOUTER SPACER 2
34 ROLLER SPRING 2
35 RIVET(50) (50 per pack) 8
36 REINF. BUMPER 8
38 RAIL ASMLH [INCL. 124-9] 1
39 SUBSTITUTED BY 9999999 3
40 COVER-RAIL TIP 2
41 RIVET(10) (10 per pack) 2
43 RAIL ASMRH [INCL. 124-9] 1
44 SHAFTSPANNER 1
45 NUT-NYLOK(10) (10 per pack) 6
46 BUMPER RAIL 4
47 SPACERR.SHOCK 2
48 SHAFTR.SHOCK 1
49 BOLT 2
50 WASHERSPLIT LOCK 2
51 WASHER 2
52 SPACER 2
53 BRACKETBOGIE WHEEL 2
54 BUSHING(10) (10 per pack) 10
55 SPRINGR.EXTBLK. 1
56 SHAFTIDLER 1
57 TUBECTR.IDLERBLK. 1
58 SHAFTPIVOT ARM 1
59 WASHER 2
60 INSERT WHEEL(10) [1 PER WHEEL] (10 per pack) 12
61 RING-RETAINING [1 PER] 6
62 BEARINGCHAINCASE tahos_6205 [1 Per Wheel] 6
