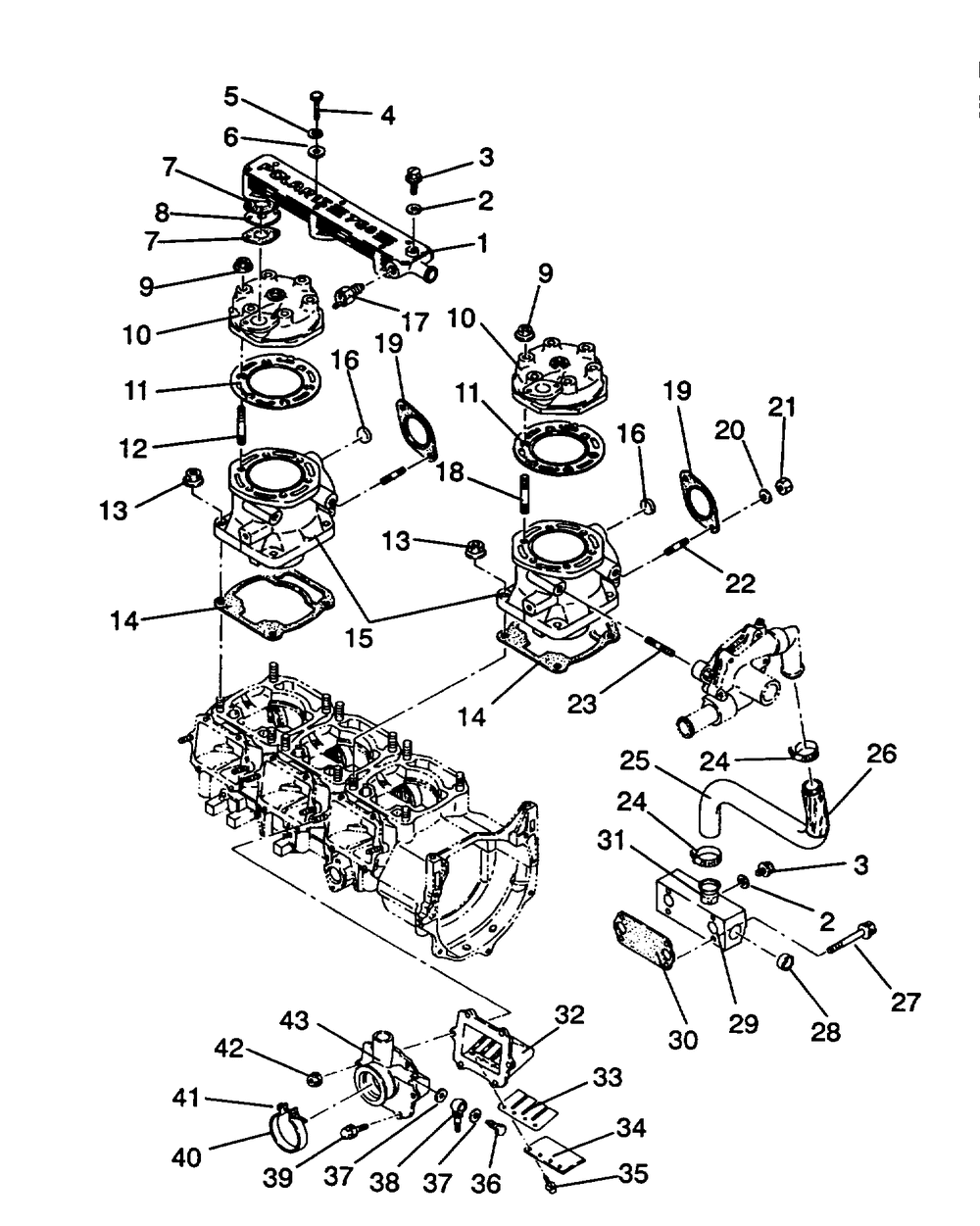

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | MANIFOLDWATER OUTLET | 1 | |
| 2 | WASHERFLAT(10) * (10 per pack) | 2 | |
| 3 | PLUG AIR VENT | 2 | |
| 5 | WASHER SPLIT LOCK | 6 | |
| 6 | WASHERFLAT | 6 | |
| 7 | GASKET(10) (10 per pack) | 6 | |
| 9 | NUT-FLANGE(10) (10 per pack) | 18 | |
| 10 | HEAD CYLINDER | 3 | |
| 12 | STUD | 6 | |
| 13 | NUT-FLANGE(10). (10 per pack) | 12 | |
| 15 | CYLINDER CPL. (Incl. 16 19 22 & 23) | 1 | |
| 16 | PLUG | 1 | |
| 17 | SWITCHTHERMAL(93 DEG.C.) | 1 | |
| 19 | GASKET EXHAUST | 3 | |
| 20 | WASHER SPRING LOCK | 6 | |
| 21 | NUT | 6 | |
| 22 | STUD (10) (10 per pack) | 2 | |
| 27 | ASM-BOLT&WASHER(10) (10 per pack) | 4 | |
| 32 | VALVE ASMREED (Incl. 28-30) | 3 | |
| 33 | VALVE REED | 6 | |
| 34 | STOPPER | 6 | |
| 35 | SCREW REED | 24 | |
| 36 | BOLT-BANJO (10) (10 per pack) | 3 | |
| 37 | WASHERFLAT(10) * (10 per pack) | 6 | |
| 38 | VALVE CHECK | 3 | |
| 39 | BOLT FLANGE(10) (10 per pack) | 12 | |
| 40 | ASM-BAND ADAPTER [INCL. 9] | 3 | |
| 41 | SCREWPAN HEAD (10) (10 per pack) | 3 | |
| 42 | NUT FLANGE(10) (10 per pack) | 6 |
