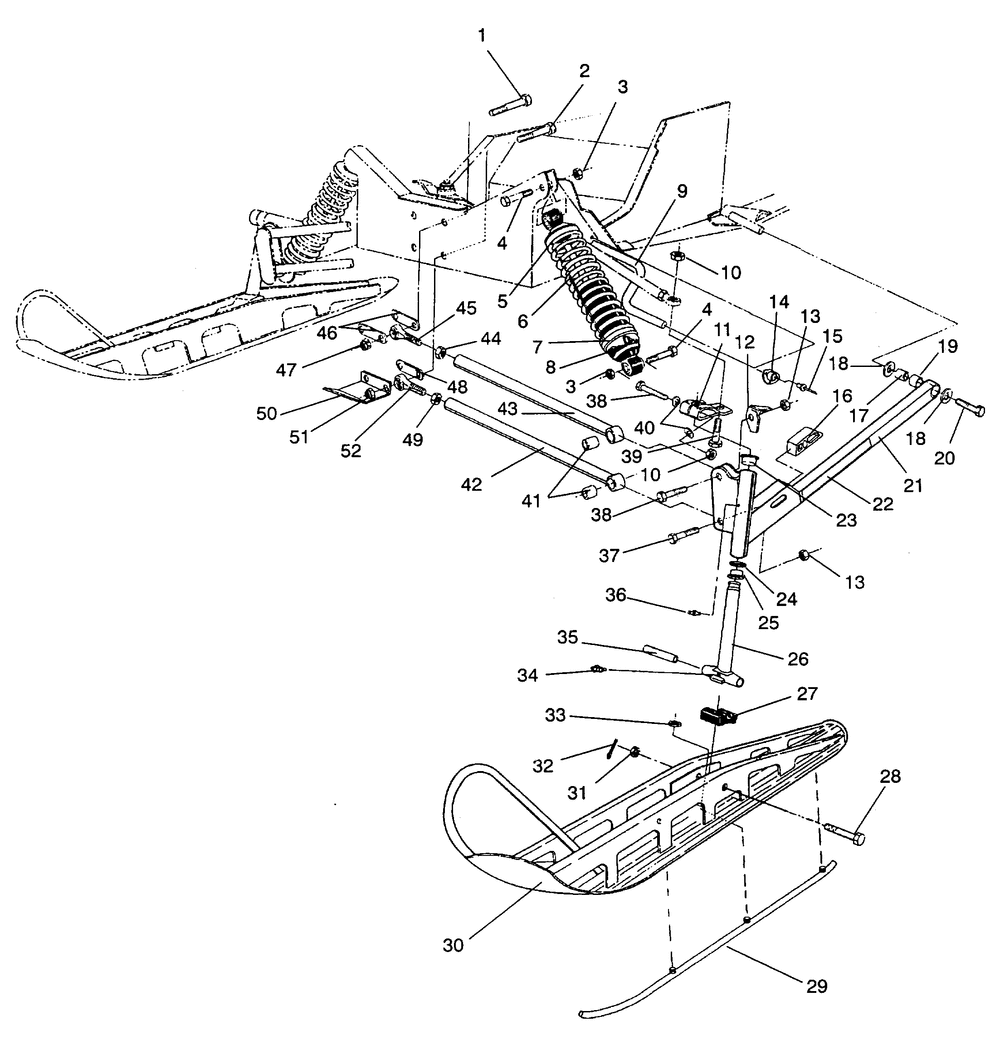

FRONT SUSPENSION and SKI TRAIL / 0930761 and TRAIL DELUXE / 0930243 (4923222322013A)

Корзина пуста
Polaris E930262 EURO TRAIL DELUXE E930262 EURO TRAIL DELUXE FRONT SUSPENSION and SKI TRAIL / 0930761 and TRAIL DELUXE / 0930243 (4923222322013A)
FRONT SUSPENSION and SKI TRAIL / 0930761 and TRAIL DELUXE / 0930243 (4923222322013A)
№ Наименование Примечание Кол-во
1 BOLT 2
2 BOLT 2
3 NUTNYLOK(10) (10 per pack) 4
4 SCREW(10) (10 per pack) 4
5 RETAINER-TOP 2
6 SPRINGCOMP.BLK. 2
7 RETAINERSPRING 2
8 SHOCKFR.SUSP. 2
10 NUT LOCK(10) (10 per pack) 4
11 ARM STEERING 2
13 NUTFLEXLOC(10) (10 per pack) 4
15 RIVET(50) (50 per pack) 6
17 TUBETRAILING ARM 2
18 WASHER(10) (10 per pack) 4
20 BOLT(10) * (10 per pack) 2
23 BUSHING-FLANGE 2
24 BUSHING(10) (10 per pack) 2
25 BUSHINGFLANGED(10) (10 per pack) 2
26 SPINDLE BLK. 2
28 SCREW(10) (10 per pack) 2
29 SKAGPR.3" CARBIDE(STEEL SKI) (Pair) 1
30 SKI WELD BLK 2
31 NUT CASTLE(10) (10 per pack) 2
32 PIN-COTTER(10) (10 per pack) 2
33 NUTNYLOK(10) (10 per pack) 6
34 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
35 BUSHINGPIVOT 2
36 FITTINGLUBRICATIONTHREADED(10 2
37 BOLT (Euro) 2
38 BOLT 4
40 WASHER 4
41 BUSHING-RADIUS ROD(10) (10 per pack) 4
43 ROD RADIUS(BLK.) (Trail) 2
44 NUTJAM(10) (10 per pack) 2
45 ROD END-RADIUSRH7/16" 2
46 STRAPSPACER TOP 2
47 NUTFLEXLOCK 2
48 STRAPSPACER BOTTOM 2
49 NUT-JAM(10) (10 per pack) 2
51 NUT FLEXOC 2
52 ROD END-1/2PL.745 WIDEFM 2
