Polaris E930760 EURO 440 E930760 EURO 440 CONSOLE 440 / 0930760 and 440 SKS / 0930560 (4922932293009A)

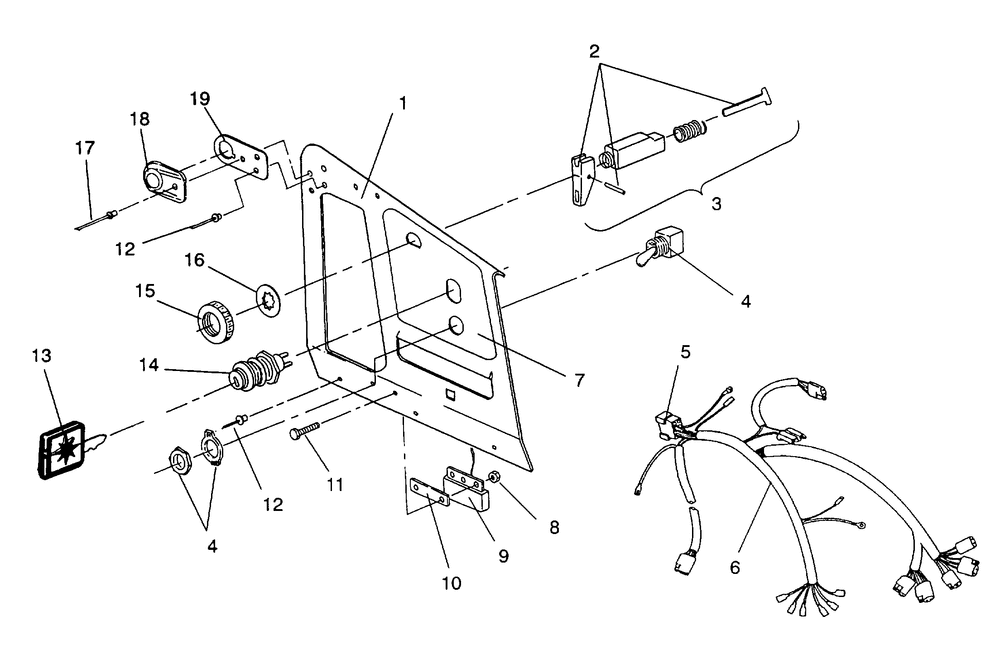

CONSOLE 440 / 0930760 and 440 SKS / 0930560 (4922932293009A)
№ Наименование Примечание Кол-во
2 KIT-CHOKE CONTROL [INCL. ANCHOR FLIPPER PIN] 1
3 CABLE CHOKE (TWIN) 1
5 HOUSING 1
8 NUT NYLOK 10-24 Y 2
9 KIT-REGULATORAC LR7-LR9 1
10 HEAT SINK 1
11 BOLT 2
12 RIVETINTERLOCKB(50) (50 per pack) 5
13 SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.]. 1
15 NUT 1
16 WASHER-LOCK 1
17 RIVET(50) (50 per pack) 1
18 GUIDE RECOIL 1
