BRAKE and CHAINCASE Indy Lite GT (4921342134013A)

Корзина пуста
Polaris 0923133 LITE GT 0923133 LITE GT BRAKE and CHAINCASE Indy Lite GT (4921342134013A)

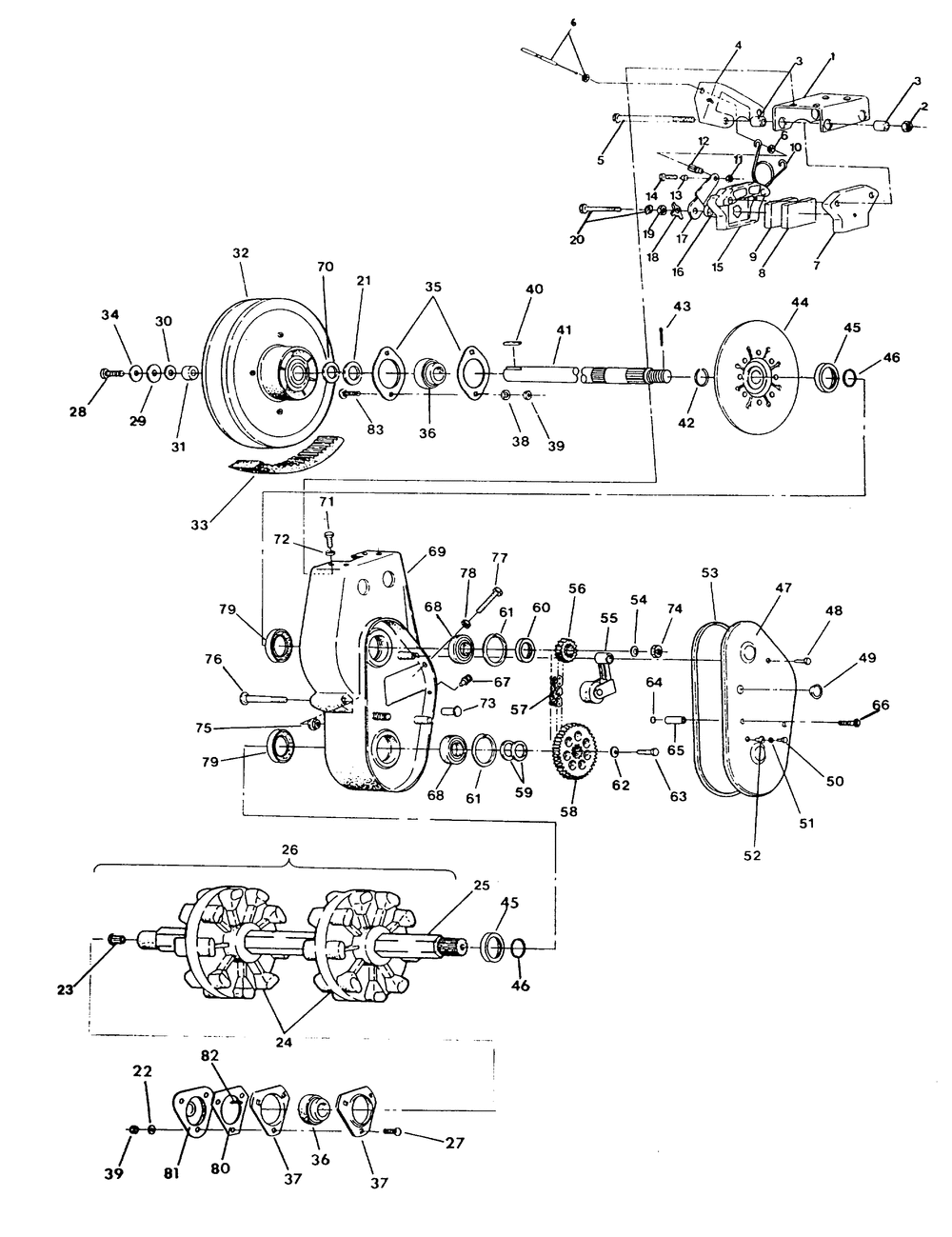

BRAKE and CHAINCASE Indy Lite GT (4921342134013A)
№ Наименование Примечание Кол-во
2 NUTNYLOK(10) (10 per pack) 2
3 BUSHING 4
5 BOLT 2
7 CALIPER 1
8 PUCK 1
9 PAD BRAKE(THICK) 1
11 NUT-NYLOK(10) (10 per pack) 1
12 PIN CLEVIS 1
13 BUSHING 1
14 BOLT 1
21 BUSHINGMACHINERY (Lite) 1
22 WASHER 3
23 BUSHING METAL SPEEDO 1
27 BOLTCARRIAGE 3
29 WASHERFLAT 1
30 WASHERFLAT(10) (10 per pack) 0
31 SPACER (Lite) 1
33 BELT DRIVE 1
35 FLANGETTE (2-BOLT) 2
36 BEARING 1
37 FLANGETTE 2
38 WASHERFLAT(10) (10 per pack) 3
39 NUTNYLOK(10) (10 per pack) 3
40 KEY-SQUARE 1
42 RING RETAINING 1
43 PINCOTTER(10) (10 per pack) 1
44 DISC ASM BRAKE 1
45 SLEEVE SEAL 1
46 O RING(10) (10 per pack) 1
49 PLUGRUBBER-HOLE.5DIA 1
50 SCREW 1
51 WASHER FLAT 1
52 NUT-WELL 1
53 GASKET-CHAINCASE 1
54 WASHER SPRING 1
55 TIGHTENERCHAINCASE 1
56 SPROCKET 16 T (Touring) 1
57 CHAIN 64 PITCH 11W (11W) 1
59 BUSHING(10) (10 per pack) 2
60 SPACER SPROCKET 1
61 RINGRETAINING 2
62 WASHERSPRING 2
63 SCR-5/16-18 3/4 HXHD/NYLGR8-P 1
67 PLUGMAGNETIC DRAIN 1
72 WASHER SPLIT LOCK 4
73 CAP STUD COVER 1
74 NUT SLOTTED 1
75 NUTFLANGE 3
76 BOLTCARRIAGE 3
77 SCREW(10) * (10 per pack) 1
78 NUT 1
79 SEAL OIL(10) (10 per pack) 2
80 GASKETDRIVE ADAPTOR 1
81 DRIVE-ADAPTOR W/ZERK 1
82 KEYSPEEDOMETERSQUARE(10) (10 per pack) 1
83 BOLTCARRIAGE 2
