Polaris S910262 SWE TRAIL DELUXE S910262 SWE TRAIL DELUXE BRAKE AND CHAINCASE From Serial Number 1845189 - Trail From Serial Number 1 (4919281928033A)

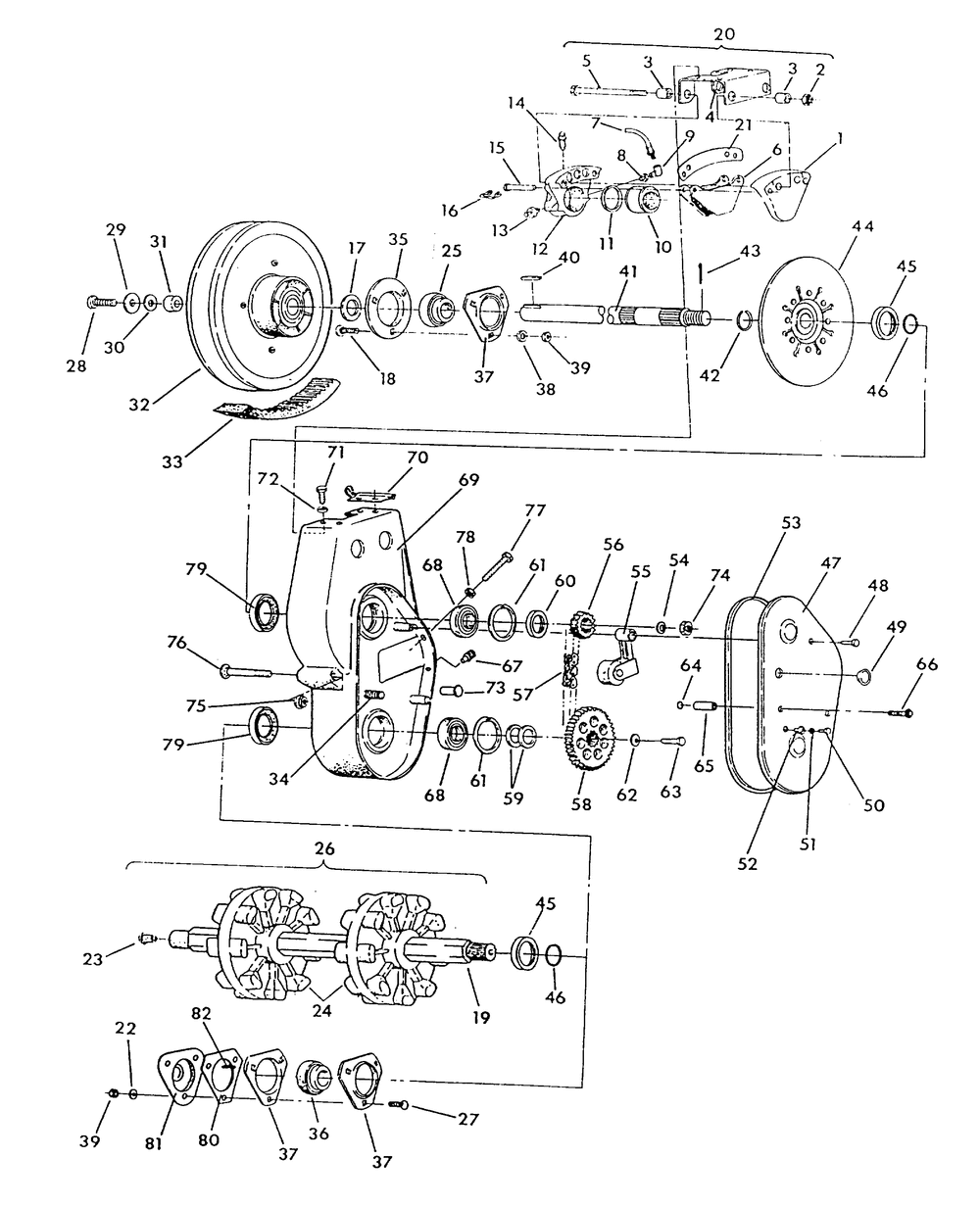

BRAKE AND CHAINCASE From Serial Number 1845189 - Trail From Serial Number 1 (4919281928033A)
№ Наименование Примечание Кол-во
3 BUSHING 4
6 PAD BRAKE (INDIVIDUAL) 2
7 LINEBRAKE 1
17 BUSHING(10) (10 per pack) 2
18 BOLTCARRIAGE 3
22 WASHER 3
23 BUSHING METAL SPEEDO 1
27 BOLTCARRIAGE 1
28 BOLT 1
29 WASHERFLAT 1
30 WASHERFLAT(10) (10 per pack) 2
31 SPACER-INPUT SHAFT.984X63 1
33 BELT DRIVE 1
34 SCREW CARRIAGE 1
35 FLANGETTE 1
36 BEARING 1
37 FLANGETTE 3
39 NUTNYLOK(10) (10 per pack) 3
42 RING RETAINING 1
43 PINCOTTER(10) (10 per pack) 1
44 DISC ASM BRAKE 1
45 SLEEVE SEAL 0
46 O RING(10) (10 per pack) 1
49 PLUGRUBBER-HOLE.5DIA 1
50 SCREW 1
51 WASHER FLAT 1
52 NUT-WELL 1
53 GASKET-CHAINCASE 1
54 WASHER SPRING 1
55 TIGHTENERCHAINCASE 1
57 CHAIN 64 PITCH 11W (11W) 1
58 SPROCKET 35 T11W (Sport) 1
60 SPACER SPROCKET 1
61 RINGRETAINING 2
62 WASHERSPRING 1
63 SCR-5/16-18 3/4 HXHD/NYLGR8-P 1
67 PLUGMAGNETIC DRAIN 1
71 BOLT 4
72 WASHER SPRING LOCK(10) (10 per pack) 4
73 CAP STUD COVER 1
74 NUT SLOTTED 1
75 NUTFLANGE 3
76 BOLTCARRIAGE 3
77 SCREW 1
78 NUT 1
79 SEAL OIL(10) (10 per pack) 2
80 GASKETDRIVE ADAPTOR 1
81 DRIVE-ADAPTOR W/ZERK 1
82 KEYSPEEDOMETERSQUARE(10) (10 per pack) 1
