Polaris S910262 SWE TRAIL DELUXE S910262 SWE TRAIL DELUXE BRAKE AND CHAINCASE To Serial Number 1845188 - Trail To Serial Number 18445 (4919281928013A)

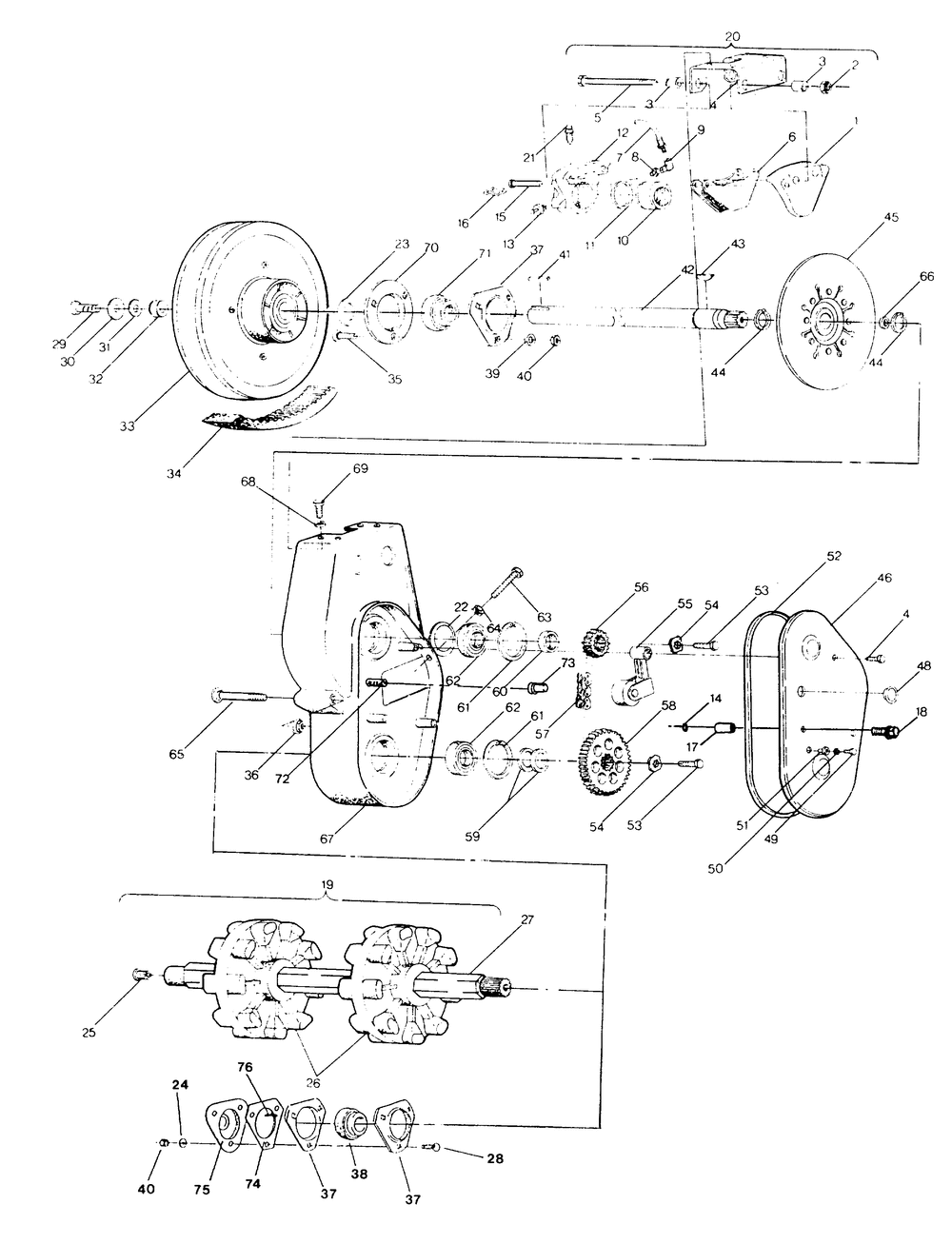

BRAKE AND CHAINCASE To Serial Number 1845188 - Trail To Serial Number 18445 (4919281928013A)
№ Наименование Примечание Кол-во
3 BUSHING 4
6 PAD BRAKE (INDIVIDUAL) 2
23 BUSHING(10) (10 per pack) 0
24 WASHER 3
25 BUSHING METAL SPEEDO 1
28 BOLTCARRIAGE 3
29 BOLT 1
30 WASHERSPRING 1
31 WASHERFLAT(10) (10 per pack) 0
32 SPACER-INPUT SHAFT.984X63 1
33 ASM-DRIVEN CLUTCHBSC203 N/B (Trail) 1
34 BELT DRIVE(5) (5 per pack) 1
35 BOLTCARRIAGE 3
36 NUTFLANGE 3
37 FLANGETTE 3
38 BEARING 1
39 WASHERFLAT(10) (10 per pack) 3
40 NUTNYLOK(10) (10 per pack) 6
41 KEY-SQUARE 1
45 DISC ASM BRAKE 1
48 PLUGRUBBER-HOLE.5DIA 1
49 SCREW 1
50 WASHER FLAT 1
51 NUT-WELL 1
52 GASKET-CHAINCASE 1
53 SCR-5/16-18 3/4 HXHD/NYLGR8-P 2
54 WASHER SPRING 2
55 TIGHTENERCHAINCASE 1
57 CHAIN 64 PITCH 11W (11W) 1
57 CHAIN 66 PITCH 1
58 SPROCKET 35 T11W (Sport) 1
60 SPACER SPROCKET 1
61 RINGRETAINING 2
62 BEARINGCHAINCASE tahos_6205 [1 Per Wheel] 2
63 SCREW 1
64 NUT 1
65 BOLTCARRIAGE 3
67 CHAINCASE ASM(REPL.) 1
68 WASHER SPRING LOCK(10) (10 per pack) 4
69 BOLT 4
70 FLANGETTE 1
72 SCREW CARRIAGE 1
73 CAP STUD COVER 1
74 GASKETDRIVE ADAPTOR 1
75 DRIVE-ADAPTOR W/ZERK 1
