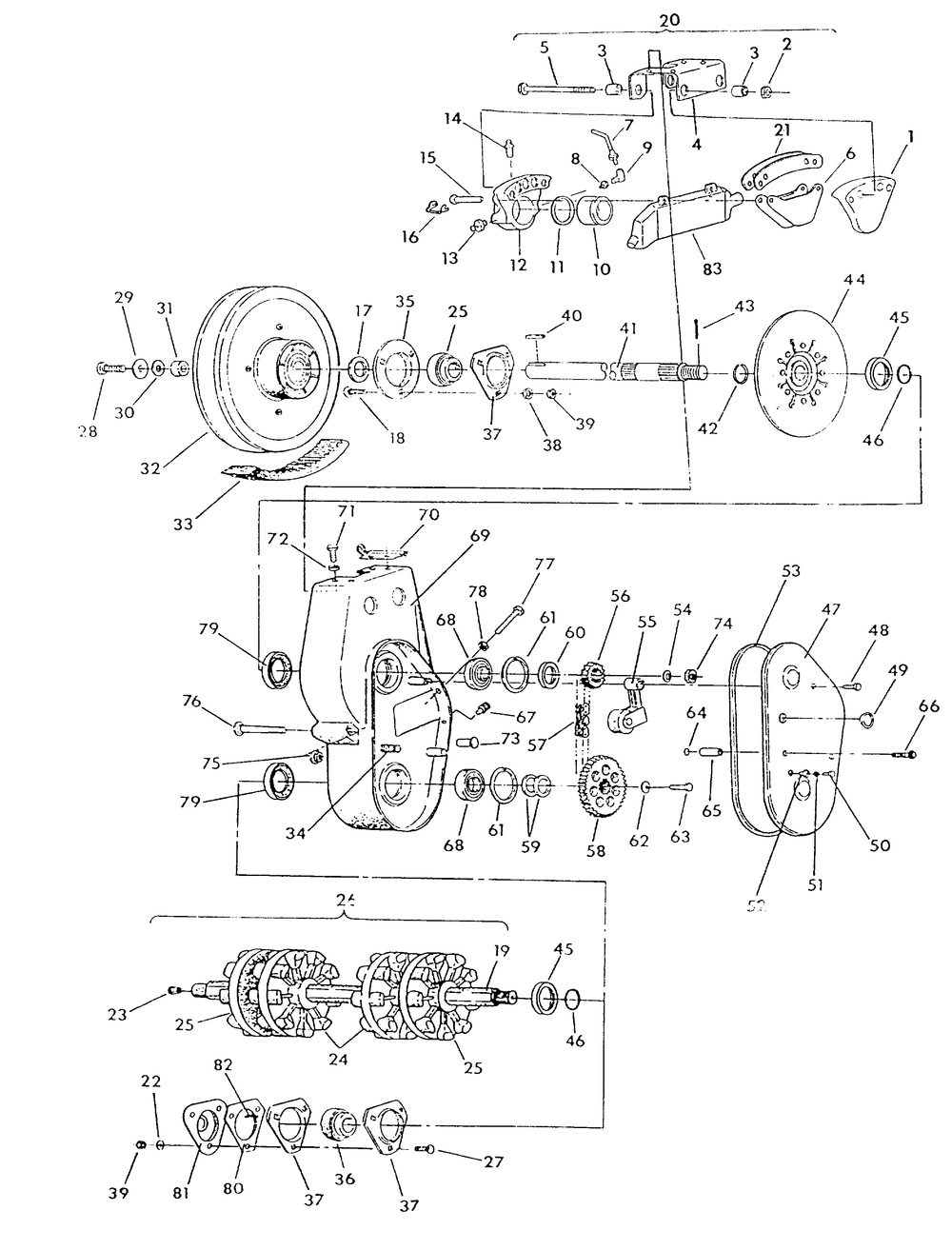

BRAKE AND CHAINCASE 650 RXL (4919531953017A)

№	Наименование	Кол-во
3	BUSHING	4
6	PAD BRAKE (INDIVIDUAL)	2
7	LINEBRAKE	1
17	BUSHING(10) (10 per pack)	0
18	BOLTCARRIAGE	3
22	WASHER	3
23	BUSHING METAL SPEEDO	1
27	BOLTCARRIAGE	3
28	BOLT	1
29	WASHERFLAT	1
30	WASHERFLAT(10) (10 per pack)	0
31	SPACER-INPUT SHAFT.984X63	1
32	ASM-DRIVEN CLUTCHBSC203 N/B (See pg. 27)	1
33	BELT DRIVE(5) (5 per pack)	1
34	SCREW CARRIAGE	1
35	FLANGETTE	1
37	FLANGETTE	2
38	WASHERFLAT(10) (10 per pack)	3
39	NUTNYLOK(10) (10 per pack)	3
42	RING RETAINING	2
43	PINCOTTER(10) (10 per pack)	1
45	SLEEVE SEAL	1
46	O RING(10) (10 per pack)	1
49	PLUGRUBBER-HOLE.5DIA	1
50	SCREW	1
51	WASHER FLAT	1
52	NUT-WELL	1
53	GASKET-CHAINCASE	1
55	TIGHTENERCHAINCASE	1
57	CHAIN 66 PITCH	1
57	CHAIN 64 PITCH 11W	1
58	SPROCKET 35 T11W (Sport)	1
60	SPACER SPROCKET	1
61	RINGRETAINING	2
62	WASHERSPRING	2
63	BOLT	2
67	PLUGMAGNETIC DRAIN	1
71	BOLT	4
72	WASHER SPRING LOCK(10) (10 per pack)	4
73	CAP STUD COVER	1
74	NUT SLOTTED	1
75	NUTFLANGE	3
76	BOLTCARRIAGE	3
77	SCREW	1
78	BOLT	1
79	SEAL OIL(10) (10 per pack)	1
80	GASKETDRIVE ADAPTOR	1
81	DRIVE-ADAPTOR W/ZERK	1
82	KEYSPEEDOMETERSQUARE(10) (10 per pack)	1
