ENGINE MOUNTING 500 and 500 Classic (4919251925013A)

Корзина пуста
Polaris 0910564 500 SKS 0910564 500 SKS ENGINE MOUNTING 500 and 500 Classic (4919251925013A)

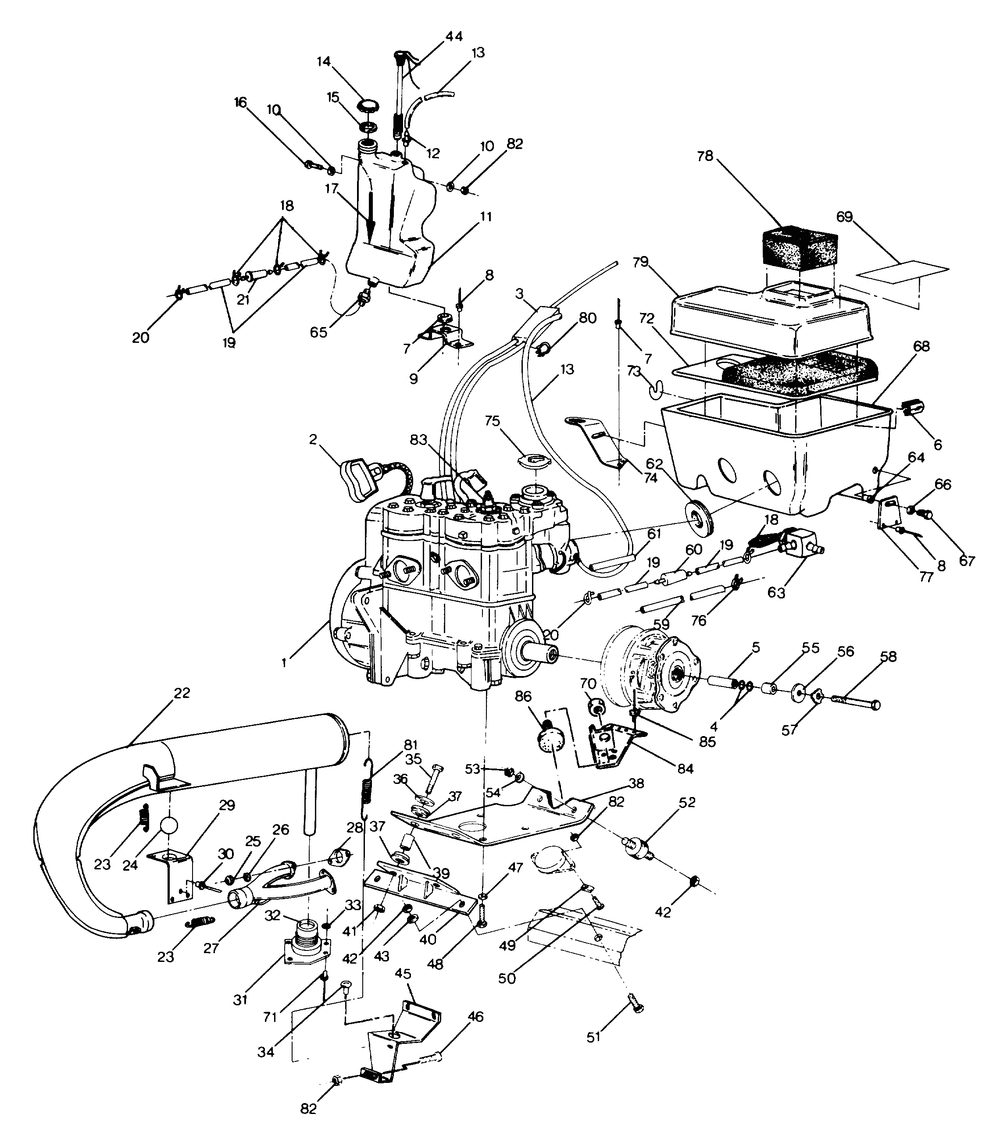

ENGINE MOUNTING 500 and 500 Classic (4919251925013A)
№ Наименование Примечание Кол-во
4 O RING(10) (10 per pack) 2
5 SPACER 1
6 CLIP AIR BOX 9
7 GROMMET RUBBER 1
8 POP RIVET(10) (10 per pack) 8
10 WASHERWROUGHT 2
12 VENT-TANK 1
13 LINEFUEL1/8 ID600 CM. 0
14 CAPOIL TANK 1
15 GASKET-OIL CAP 1
16 BOLT 1
18 CLAMP-HOSE 4
19 LINEFUEL1/4 ID(1525 CM.) 0
21 FILTERSMALLIN-LINE(10) (10 per pack) 1
23 SPRING(10) (10 per pack) 3
24 DAMPNER VIB. 1
25 NUT 4
26 WASHER SPRING LOCK 4
27 MANIFOLD ** 1
28 GASKET EXHAUST 2
30 RIVET(50) (50 per pack) 3
31 HAT EXHAUST STD 1
32 BOOT EXHAUST 1
33 WASHER13/64X1/2X18GAFL-Y (10) (10 per pack) 4
36 WASHER(10) * (10 per pack) 4
38 PLATEENG.MT. 1
41 NUTFLEXLOCK 2
42 NUTNYLOK(10) (10 per pack) 4
43 WASHERFLAT(10) (10 per pack) 2
44 SENSOROIL LEVELW/CONN. 1
46 BOLTCARRIAGE 2
47 WASHERSPRING LOCK 4
48 BOLT 4
49 NUT SPEED 2
50 BOLT-CARRIAGE [700 IQ][600/700 IQ Dragon] 2
53 NUTFLEXLOC(10) (10 per pack) 2
54 WASHER 2
55 BUSHING (Trail Only) 1
56 WASHER(10) * (10 per pack) 1
57 WASHER LOCK 1
58 BOLT 1
60 FILTER FUEL(10) (10 per pack) 1
61 FUEL LINE3/16 ID(600 CM.) 0
62 BOOT 2
63 VALVEFUEL SHUT-OFF 1
64 NUT-WELL(10) * (10 per pack) 2
65 FITTING OUTLET 1
66 WASHER(10) (10 per pack) 3
67 SCREW(10) * (10 per pack) 2
68 SILENCER DRILLED 1
70 NUT JAM [ACCESSORY] 2
71 RIVETPOP(50)* (50 per pack) 4
72 PLATEAIR SILENCER 0
72 BAFFLE ASM. 1
75 CAP PRESSURE 1
76 CLAMPHOSE(10) (10 per pack) 2
77 BRACKET SILENCER 1
78 INTAKE ASM FOAM 1
80 CLIP 2
81 SPRING(10) (10 per pack) 1
82 NUT-NYLOK(10) (10 per pack) 4
83 SPARKPLUG RN3C(4) (4 per pack) 2
84 LIMITERTORQUEBLK. 1
85 RIVETINTERLOCKB(50) (50 per pack) 7
