SUSPENSION 500 and 500 Classic Updated 2 / 90 (4916791679015A)

Корзина пуста
Polaris N900865 NOR 500 CLASSIC N900865 NOR 500 CLASSIC SUSPENSION 500 and 500 Classic Updated 2 / 90 (4916791679015A)

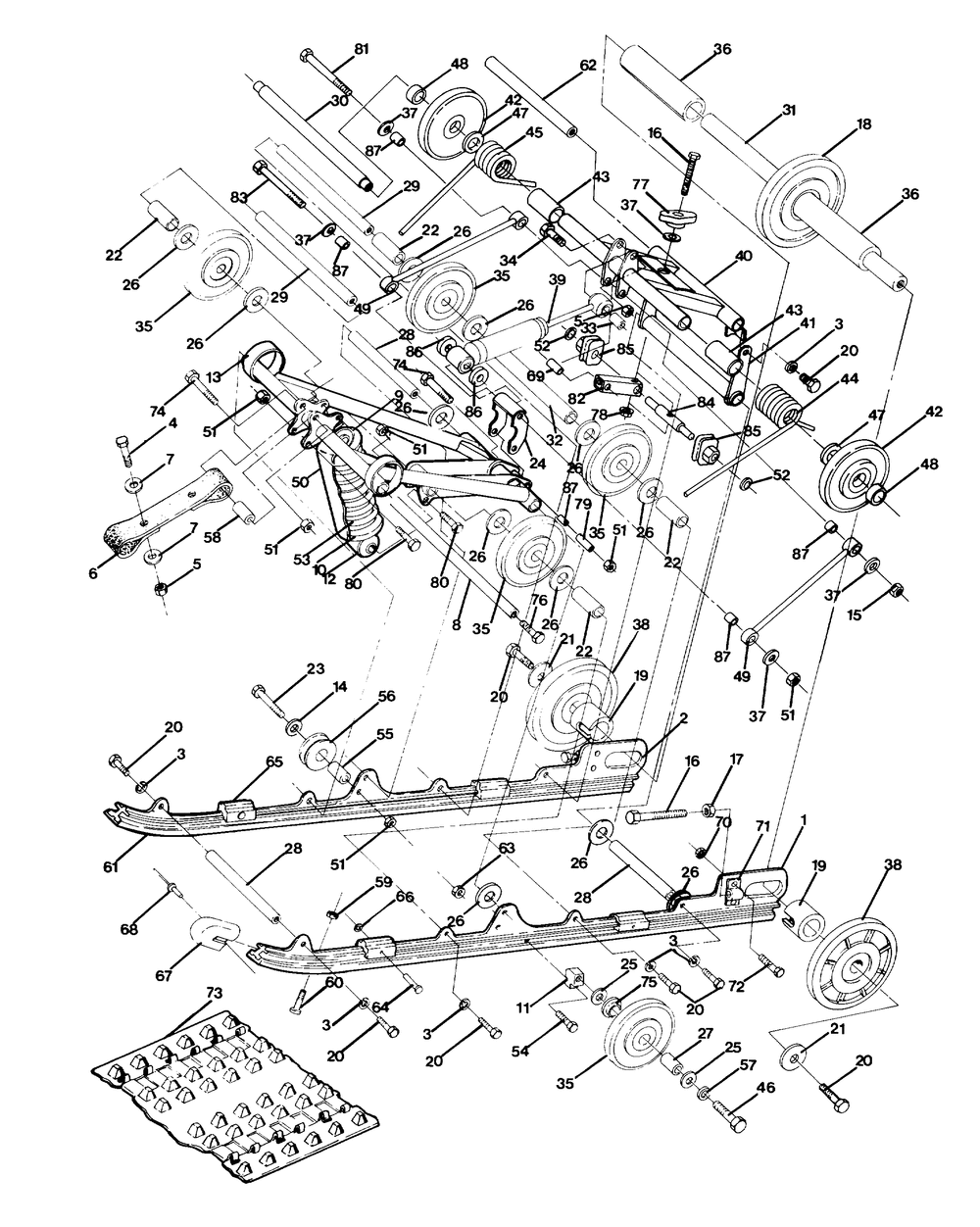

SUSPENSION 500 and 500 Classic Updated 2 / 90 (4916791679015A)
№ Наименование Примечание Кол-во
RAIL ASM. LH (Incl. 1129 32 36) 1
2 RAIL ASMRH (Incl.11 29 32 36) 1
3 WASHERSPRING LOCK(10) (10 per pack) 10
4 BOLT 2
5 NUTNYLOK(10) (10 per pack) 3
6 STRAP LIMITER 1
7 WASHER 4
8 SHAFTMOUNTING 1
9 RETAINER-TOP 1
10 RETAINERSPRING 1
11 BRACKETBOGIE WHEEL 2
12 SHOCK-SUSP 1
14 WASHER 2
15 NUTFLEXLOC 1
16 BOLT ADJUSTER(10) (10 per pack) 3
17 NUT 2
18 WHEEL ASMBLK. 1
20 SCREW(10) (10 per pack) 14
22 SPACER OUTER 4
23 SCREW(10) (10 per pack) 2
25 WASHER 4
26 BUSHING(10) (10 per pack) 12
27 SPACER 2
28 SHAFTPIVOT ARM 3
29 SHAFTPIVOT ARM 2
30 SHAFTMTGREAR 1
31 SHAFTIDLER 1
32 TUBE SUSPENSION 1
33 BUSHINGR.SHOCK 1
34 BOLT 1
35 WHEELIDLER 5.35" 6
37 WASHERFLAT(10) (10 per pack) 5
42 WHEELCARRIERASM 2
43 TUBE 2
46 BOLT 2
47 WASHER 2
48 SPACER-CARR.WHEEL 2
50 SHIELD-SPRING 1
51 NUTNYLOK(10) (10 per pack) 6
52 CLIPPUSH ON(10) (10 per pack) 2
54 BOLT 2
56 ROLLER-SPRING* 2
57 WASHERSPLIT LOCK 2
59 NUT-NYLOK(10) (10 per pack) 2
61 SLIDERWHI.(2) (2 per pack) 2
63 NUT LOCK(10) (10 per pack) 2
64 RIVET(50) (50 per pack) 4
65 BUMPER RAIL 4
66 PALNUT(10) (10 per pack) 4
67 COVER-RAIL TIP 2
68 RIVET(10) (10 per pack) 2
69 SPACERR.PIVOT ARM 1
71 BLOCK-IDLER BOLT ADJ. 2
72 BOLT(10) * (10 per pack) 4
74 BOLT 2
75 INSERT WHEEL(10) (10 per pack) 6
76 BOLTNYLOCBLACK 4
78 NUTFLANGE LOCK 1
79 SPACER 1
80 SCREW(10) (10 per pack) 2
81 SCREW 1
83 BOLT 1
85 ROLLER SPRING ADJ. 2
86 SPACER R.SHOCK 2
87 SUBSTITUTED BY 9999999 0
87 BUSHINGPIVOT TUBE 5
87 HI FAX-MED BLUE 0
