Polaris S15CP8 800 INDY SP/INTL/FO S15CP8 800 INDY SP/INTL/FO SUSPENSION TORQUE ARM REAR - S15CP8 ALL OPTIONS (49SNOWTORQUEREAR14INDY)

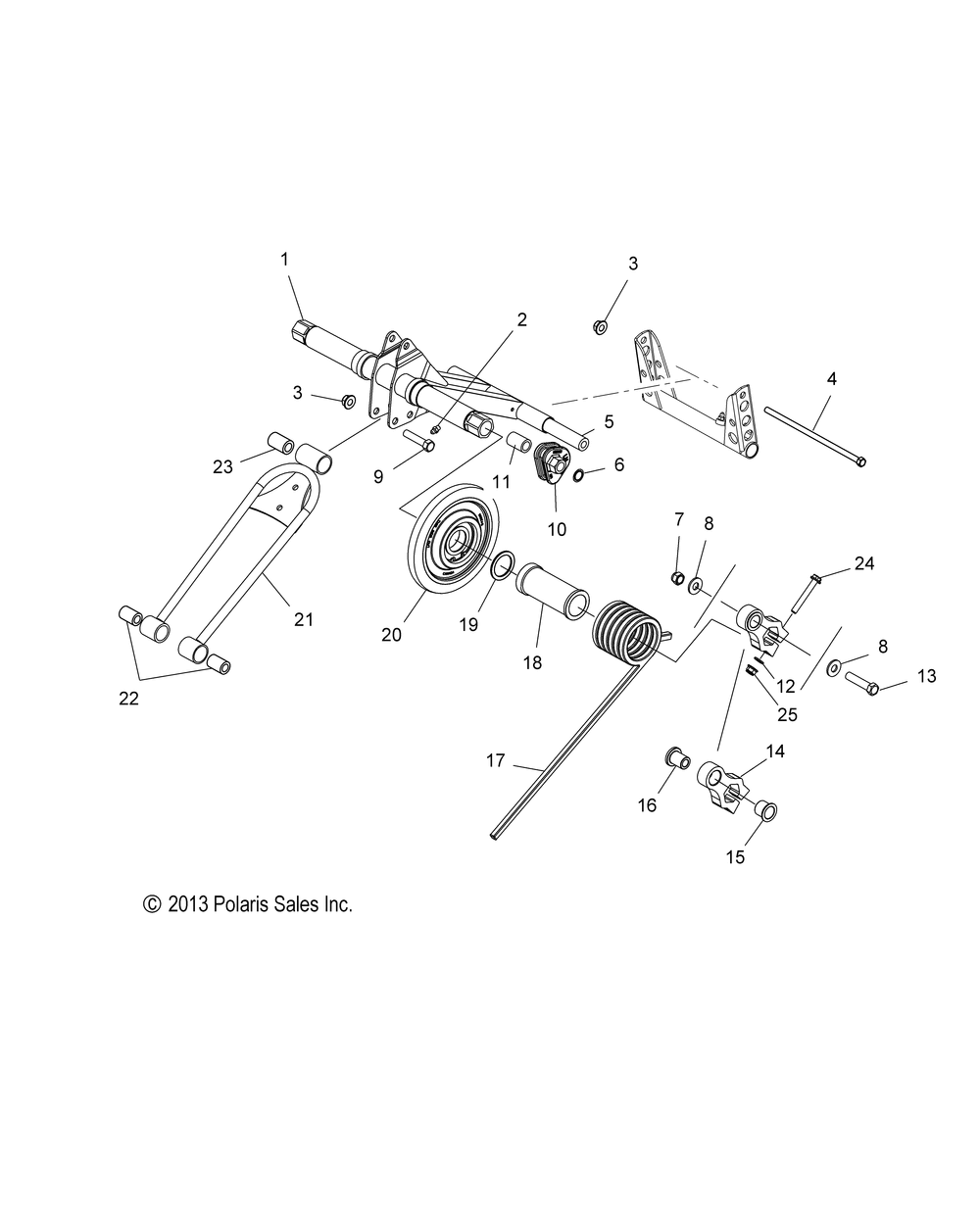

SUSPENSION TORQUE ARM REAR - S15CP8 ALL OPTIONS (49SNOWTORQUEREAR14INDY)
№ Наименование Примечание Кол-во
1 WELD-RTABLK 1
2 FITTING LUBRICATION 1
3 NUT-3/8-24 NYLOK 2
4 SCR-3/8-24X8.75HXCP-GR8-Y 1
5 SHAFT-.740X.390X7.9656066 1
6 CLIPPUSH ON(10) (10 per pack) 2
7 NUT-7/16-20NYLOKY (10) (10 per pack) 2
8 WASHERFLAT 4
9 SCREW(10) (10 per pack) 1
10 ROLLER-SPRINGTRI-ADJLH 1
10 ROLLER-SPRINGTRI-ADJRH 1
11 SPACER-.520X.770X1.125HDPE 2
12 WASHER-M8 FW STL THRU-HRD 2
13 BOLT-7/16-20X2-HXHDCAP-GR5-Y 2
14 ASM-ARM2.00 [INCL. 15] 2
15 BUSHING-PIVOT 2
16 SHAFT-.445X.750X1.00FLANGE 2
17 SPRING-TOR.347S8010tahos_RH BLK [STD] 1
17 SPRING-TOR.347S8010tahos_LH BLK [STD] 1
17 SPRING-TOR.347S8011tahos_LHBLK [OPT] 1
17 SPRING-TOR.347S8011tahos_RHBLK [OPT] 1
17 SPRING-TOR.35912.5tahos_LHBLK [INTL][USA OPT] 1
17 SPRING-TOR.35912.5tahos_RHBLK [INTL][USA OPT] 1
17 SPRING-TOR.347S779tahos_LHBLK [OPT] 1
17 SPRING-TOR.347S779tahos_RHBLK [OPT] 1
18 SLEEVE-TORSION SPRING 2
19 WASHER 2
20 ASM-WHEELPLAIN5.626007 1
20 ASM-WHEELPLAIN5.626007 2
20 RINGRETAINERINT. 1
21 WELD-SHOCK RODBLK 2
22 BUSHING-.385X.560X.967 2
23 BUSHING-.385X.550X1.39 1
24 BOLT-5/16-18X2-1/4 HXFLNG GR5 2
25 NUTFLANGE 2
