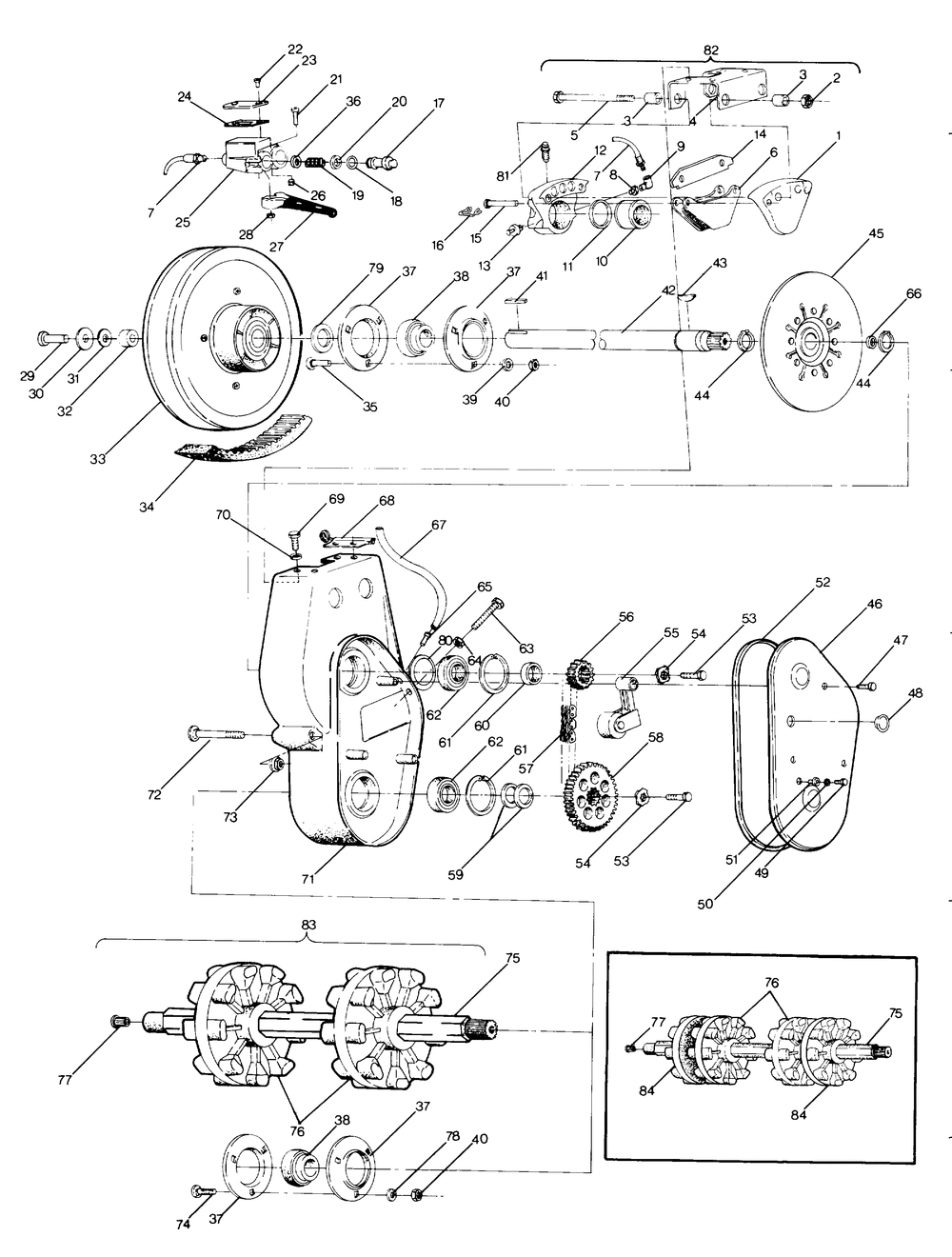

BRAKE AND CHAINCASE 400 and 650 (4914131413013A)

Корзина пуста
Polaris S880759 SWE 400 S880759 SWE 400 BRAKE AND CHAINCASE 400 and 650 (4914131413013A)
BRAKE AND CHAINCASE 400 and 650 (4914131413013A)
№ Наименование Примечание Кол-во
3 BUSHING 4
6 PAD BRAKE (INDIVIDUAL) 2
9 ELBOW-FEMALE 1
18 O RING (10) (10 per pack) 1
19 SPRINGCOMPRESSION(10) (10 per pack) 1
20 U PACKING SEAL 1
21 SCREW 1
22 SCREW 2
23 COVER RESERVOIR 1
27 LEVERBRAKE(RED) 1
29 BOLT 1
30 WASHERFLAT 1
31 WASHERFLAT(10) (10 per pack) 0
32 SPACER-INPUT SHAFT.984X63 1
34 BELT DRIVE(5) (5 per pack) 1
35 BOLTCARRIAGE 3
36 WASHER 1
37 FLANGETTE 4
38 BEARING 2
39 WASHERFLAT(10) (10 per pack) 3
40 NUTNYLOK(10) (10 per pack) 6
41 KEY-SQUARE 1
48 PLUGRUBBER-HOLE.5DIA 1
50 WASHER FLAT 1
51 NUT-WELL 1
52 GASKET-CHAINCASE 1
53 BOLT 2
55 TIGHTENERCHAINCASE 1
56 SPROCKET 19 T 1
57 CHAIN 64 PITCH 11W (11W) 1
58 SPROCKET 35 T11W (Sport) 1
59 BUSHING(10) (10 per pack) 2
60 SPACER SPROCKET 1
61 RINGRETAINING 2
62 BEARING tahos_6205 [1 PER] 2
63 SCREW 1
64 NUT 1
65 PIN-SPIRAL 1
67 SUBSTITUTED BY 9990000 1
69 BOLT 4
70 WASHER SPRING LOCK(10) (10 per pack) 4
71 CHAINCASE ASM(REPL.) 1
72 BOLTCARRIAGE 3
73 NUTFLANGE 3
74 BOLTCARRIAGE 3
77 BUSHING METAL SPEEDO 1
78 WASHER 3
