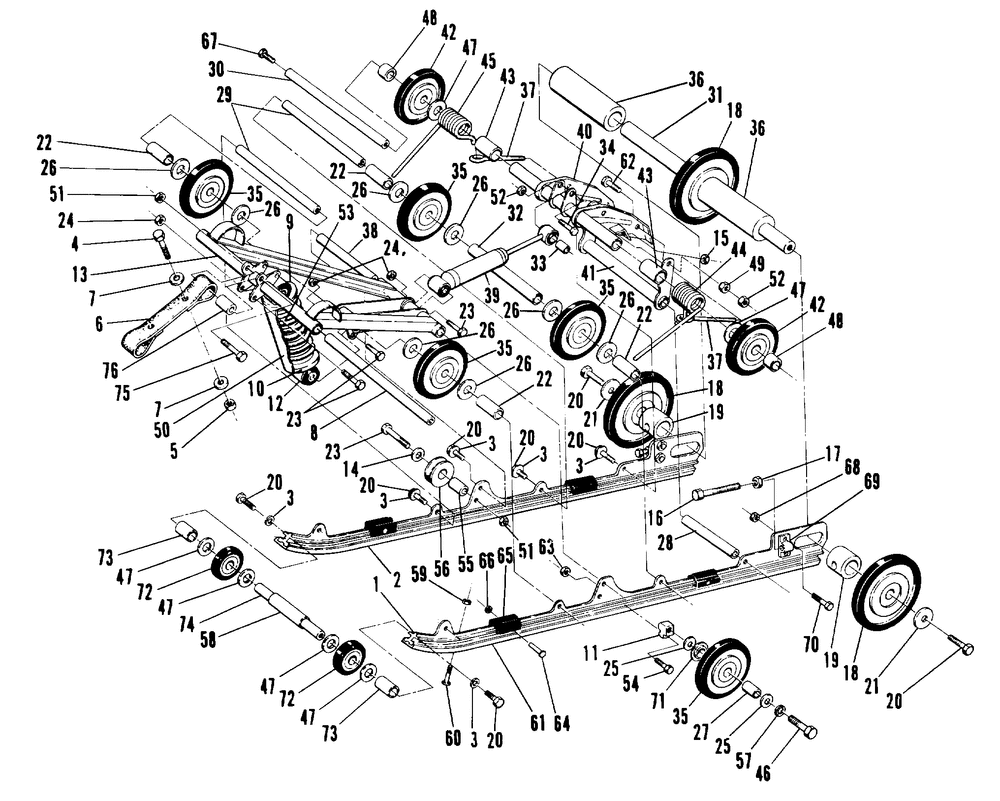

Suspension (SS) Assembly No. 1540577 (4910951095015A)

Корзина пуста
Polaris N861349 NOR SS N861349 NOR SS Suspension (SS) Assembly No. 1540577 (4910951095015A)
Suspension (SS) Assembly No. 1540577 (4910951095015A)
№ Наименование Примечание Кол-во
3 WASHERSPRING LOCK(10) (10 per pack) 10
4 BOLT 2
5 NUTNYLOK(10) (10 per pack) 2
7 WASHER 4
8 SHAFTMOUNTING 1
9 RETAINER-TOP 1
10 RETAINERSPRING 1
11 BRACKETBOGIE WHEEL 2
12 SHOCK-SUSP 1
14 WASHER 2
15 NUTFLEXLOC 2
16 BOLT ADJUSTER(10) (10 per pack) 2
17 NUT 2
18 WHEEL ASMBLK. 3
20 SCREW(10) (10 per pack) 12
22 SPACER OUTER 4
23 SCREW(10) (10 per pack) 5
25 WASHER 4
26 BUSHING(10) (10 per pack) 8
27 SPACER 2
28 SHAFTPIVOT ARM 1
29 SHAFTPIVOT ARM 2
30 SHAFTMTGREAR 1
31 SHAFTIDLER 1
32 TUBE SUSPENSION 1
33 SPACER 1
34 SCREW 1
37 BOLT-EYE SPRING ADJ. 2
42 WHEEL-TRACK CARRIER 2
46 BOLT 2
47 WASHER 6
48 SPACER-CARR.WHEEL 2
49 NUT SHOULDER 2
50 SHIELD-SPRING 1
51 NUTNYLOK(10) (10 per pack) 2
52 NUT LOCK 3
54 BOLT 2
56 ROLLER-SPRING* 2
57 WASHERSPLIT LOCK 2
59 NUT-NYLOK(10) (10 per pack) 2
62 BOLT 2
63 NUT LOCK(10) (10 per pack) 2
64 RIVET(50) (50 per pack) 4
65 BUMPER RAIL 4
66 PALNUT(10) (10 per pack) 4
67 BOLTNYLOCBLACK 4
69 BLOCK-IDLER BOLT ADJ. 2
70 BOLT(10) * (10 per pack) 4
71 INSERT WHEEL(10) (10 per pack) 6
75 BOLT 1
