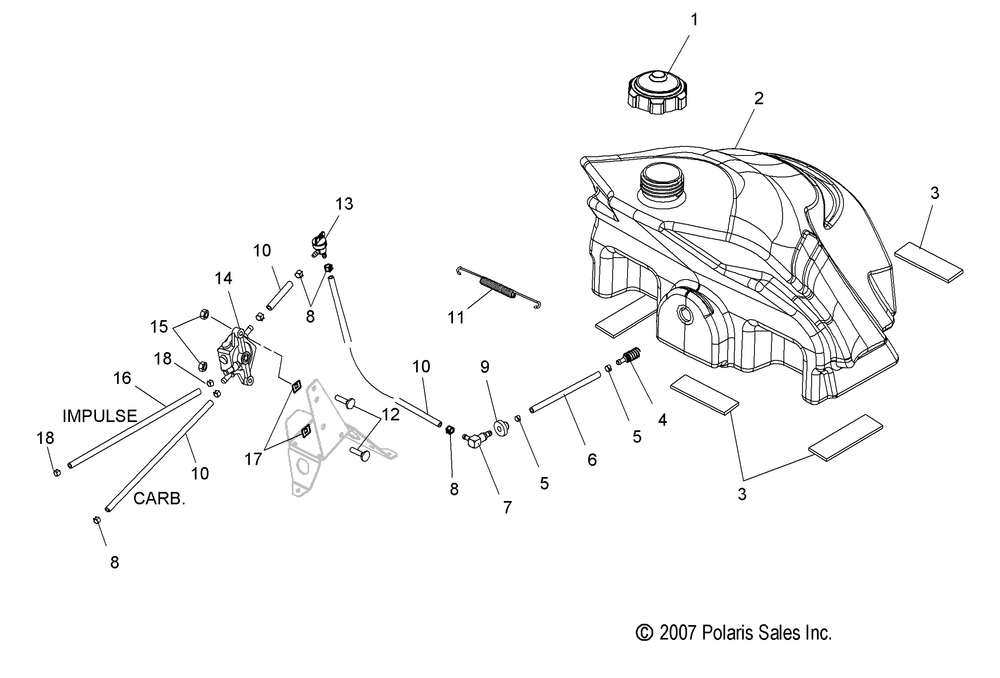

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CAP-GASVENTED | 1 | |
| 2 | ASM-FUEL TANK [INCL. 4-79] | 1 | |
| 3 | FOAMSEAL | 4 | |
| 4 | PICK-UPFUELW/MESH | 1 | |
| 5 | RINGCOMPRESSION | 2 | |
| 6 | FUELLINEETHERVLT3/8" | 0 | |
| 7 | FTTG-90 | 1 | |
| 8 | CLAMPHOSE | 6 | |
| 9 | GROMMET-3/4"VITON | 1 | |
| 10 | FUEL HSE-5/16 DP SAE J30R9 SVC | 0 | |
| 11 | SPRING | 1 | |
| 12 | BOLT-CARR 1/4-20 UNC-2A X 1.25 | 2 | |
| 13 | ASM-VALVEFUELPLASTIC 90 | 1 | |
| 14 | PUMP-FUEL5/16 IN/OUTMIK | 1 | |
| 15 | NUTNYLOKFLANGED | 2 | |
| 16 | LINE FUEL1/4 ID(600 CM.) | 0 | |
| 17 | NUT SPEED | 2 | |
| 18 | CLAMPHOSE(10) (10 per pack) | 2 | |
| 19 | FOAM-FUEL TANK FRONT | 2 |
