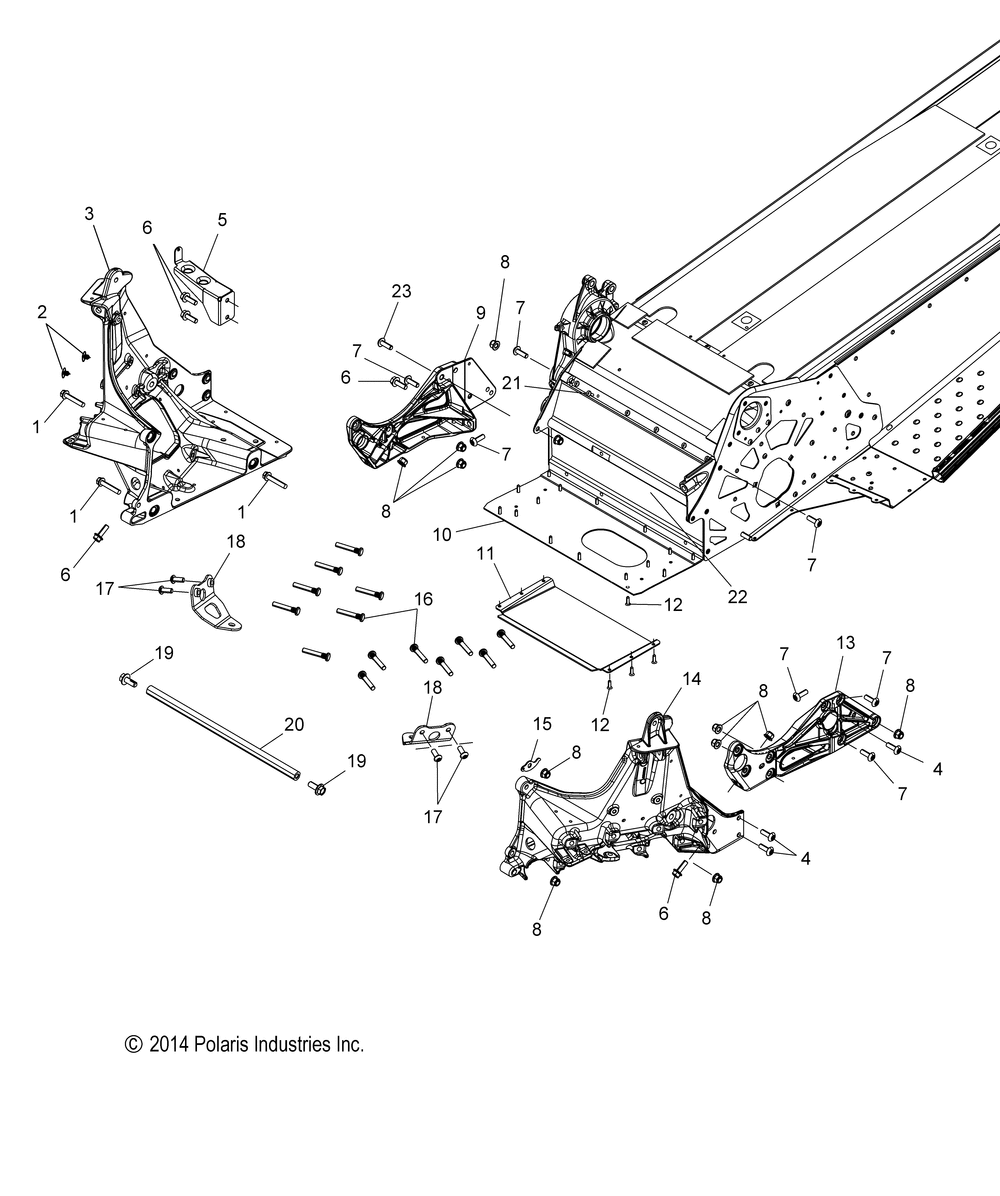

CHASSIS BULKHEAD ASM. - S18CFE5BSL / BEL (49SNOWCHASSISFRT15550155)

№	Наименование	Кол-во
	KIT-LORD 406 REPAIR KIT 50ML [ADHESIVE]	1
	KIT-LORD MIX NOZZLES	1
	KIT-LORD 406 50ML CARTRIDGE [ADHESIVE]	1
1	SCREW(10) (10 per pack)	3
2	CLIP DART	2
3	ASM-CLIPF/C RACK STEERRH [INCL. 16][REQUIRES ADHESIVE]	1
4	SCR-TXTH-M8X1.25X25 8.8 ZODP30	3
5	BRKT-LWR SUPPORTRESONATOR	1
6	SCR-HXFL-M8X1.25X25 8.8 ZODP30	5
7	CL8.8 OLV-D	7
8	NUT-M8X1.25FLGNYLOC-OLIVE D	9
9	BRACE-LOWER RH MACH [REQUIRES ADHESIVE]	1
10	FLOOR-BULKHEADVENTED	1
11	VENT-FLOOR	1
12	RIVETINTERLOCKZ(50) * (50 per pack)	10
13	ASM-BRACE LOWER LH [REQUIRES ADHESIVE][INCL. SLEEVE]	1
14	ASM-CLIPF/C RACK STEERLH [INCL. 16][REQUIRES ADHESIVE]	1
15	BRKT-PIPE/CHASSIS	1
16	STUD-WHEEL M8X1.25X48	14
17	BOLT-M6X1.0X15PH/TX-OLIVE D	4
18	ASM-SUPPORT BRKTPITMAN/IDLER	2
19	SCR-M10X1.5X25-8.8 HFS ZOD	2
20	TUBE-CROSSM10X1.5377.44MM	1
21	RIVET-4.8MM DIA-1.5-6.0 GRIP	6
22	CLOSE OFF-BULKHDF/C	1
23	SCR-M8X1.25X30 8.8 TR/TX ZOD	1
