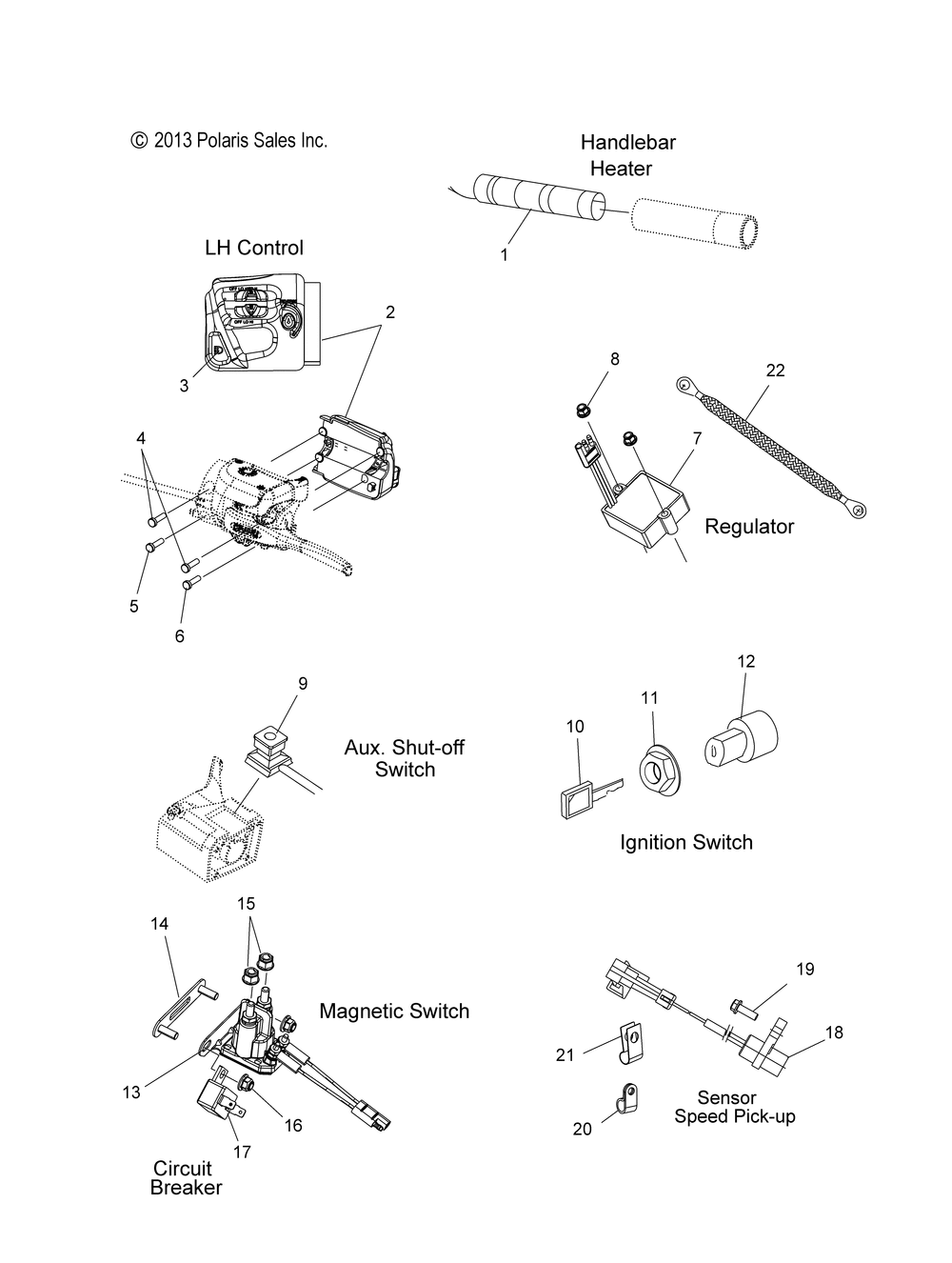

ELECTRICAL SWITCHES and COMPONENTS - S14CR5BSA / BSL (49SNOWELECT14550)

Polaris S14CR5BSA/BSL 550 INDY 144/ES S14CR5BSA/BSL 550 INDY 144/ES ELECTRICAL SWITCHES and COMPONENTS - S14CR5BSA / BSL (49SNOWELECT14550)

№	Наименование	Кол-во
1	HEATER-GRIPLO/MED/HISTD [INDY]	2
2	ASM-CONTROLLHREV [INCL. 3]	1
3	BUTTON-SWITCHHI/LOLH CONTROL	1
4	SCREW .75	2
5	SCREW 1.12(10) (10 per pack)	1
6	SCREW 1.50	1
7	REGULATOR-AC/DC SELF START	1
8	NUT-M6X1.0FLG-NYLOC-OLIVE D	2
9	SW-AUX SHUT-OFF CLOSEDHON	1
10	SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.].	1
11	NUTIGNITION	1
12	KIT-IGNITION SWITCHESCOMPLT [INCL. 11]	1
13	SWITCH-MAGNETIC	1
14	ASM-STUD PLATE 60.96MM	1
15	NUTNYLOKFLANGED	2
17	BREAKER-CIRCUIT 12 AMP	1
18	SENSOR-SPEED PICKUP LG	1
19	SCR-1/4-20X.75TR/TX-M	1
20	CLAMP-CABLENYLON5/16"	1
21	CLAMP CABLE	1
22	STRAP-GROUNDING	1
