ELECTRICAL SWITCHES SENSORS and COMPONENTS - S13CK6 / CM6 ALL OPTIONS (49SNOWELECT136RMK)

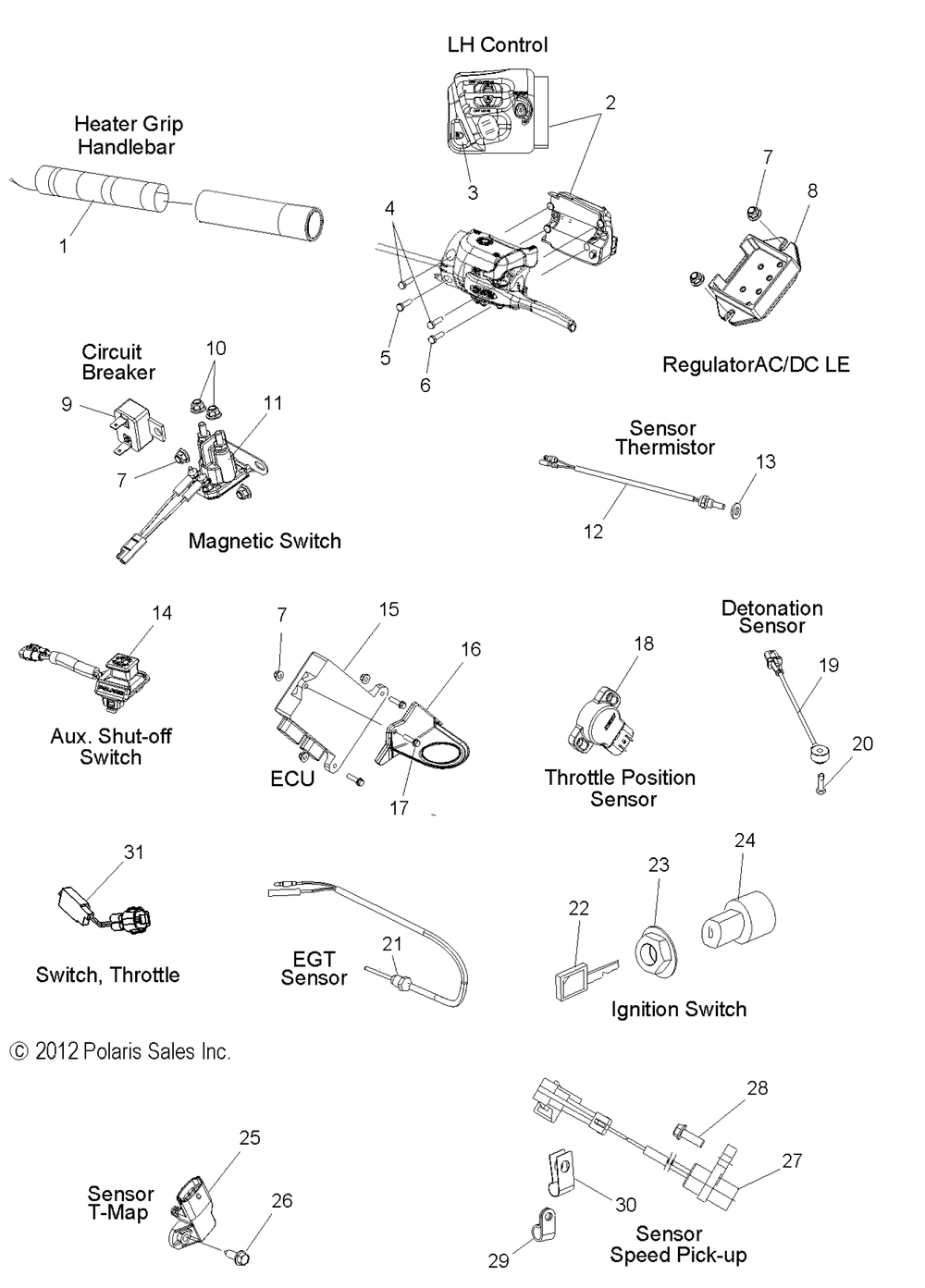

Polaris S13CK6/CM6 600 RMK 144/155 ALL OPTIONS S13CK6/CM6 600 RMK 144/155 ALL OPTIONS ELECTRICAL SWITCHES SENSORS and COMPONENTS - S13CK6 / CM6 ALL OPTIONS (49SNOWELECT136RMK)

№	Наименование	Кол-во
1	HEATER-GRIPLO/MED/HISHORT	1
2	ASM-CONTROLLHMFGREV	1
3	BUTTON-SWITCHHI/LOLH CONTROL	1
4	SCREW .75	2
5	SCREW 1.12(10) (10 per pack)	1
6	SCREW 1.50	1
7	NUT-M6X1.0FLG-NYLOC-OLIVE D	7
8	REGULATOR-AC/DC LE	1
9	BREAKER-CIRCUIT 12 AMP	1
10	NUTNYLOKFLANGED	2
11	SWITCH-MAGNETIC	1
12	SENSOR-WATER TEMP	1
13	WASHER-18X12X2.5MM-COPPER	1
14	SWITCH-AUX SHUT-OFF DC-SDI	1
15	ECU-BASEKOKDC-SDI LE32MHZ	1
16	MOUNT-ECU	1
17	BOLT-M6X1.0X20HXHDFLGBLK	3
18	SENSOR-THROTTLE POSITION	1
19	SENSOR-DETONATION BOSCH	1
20	SCR-M8X1.25X30HX/FL-YD	1
21	SENSOR-EGT	1
22	SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.].	1
23	NUTIGNITION	1
24	KIT-IGNITION SWITCHESCOMPLT	1
25	SENSOR-TMAP DSS3-TF	1
26	SCREW	1
27	SENSOR-SPEED PICKUP LG	1
28	SCR-1/4-20X.75TR/TX-M	1
29	CLAMP-CABLENYLON5/16"	1
30	CLAMP CABLE	1
31	SWITCH-THROTTLE	1
