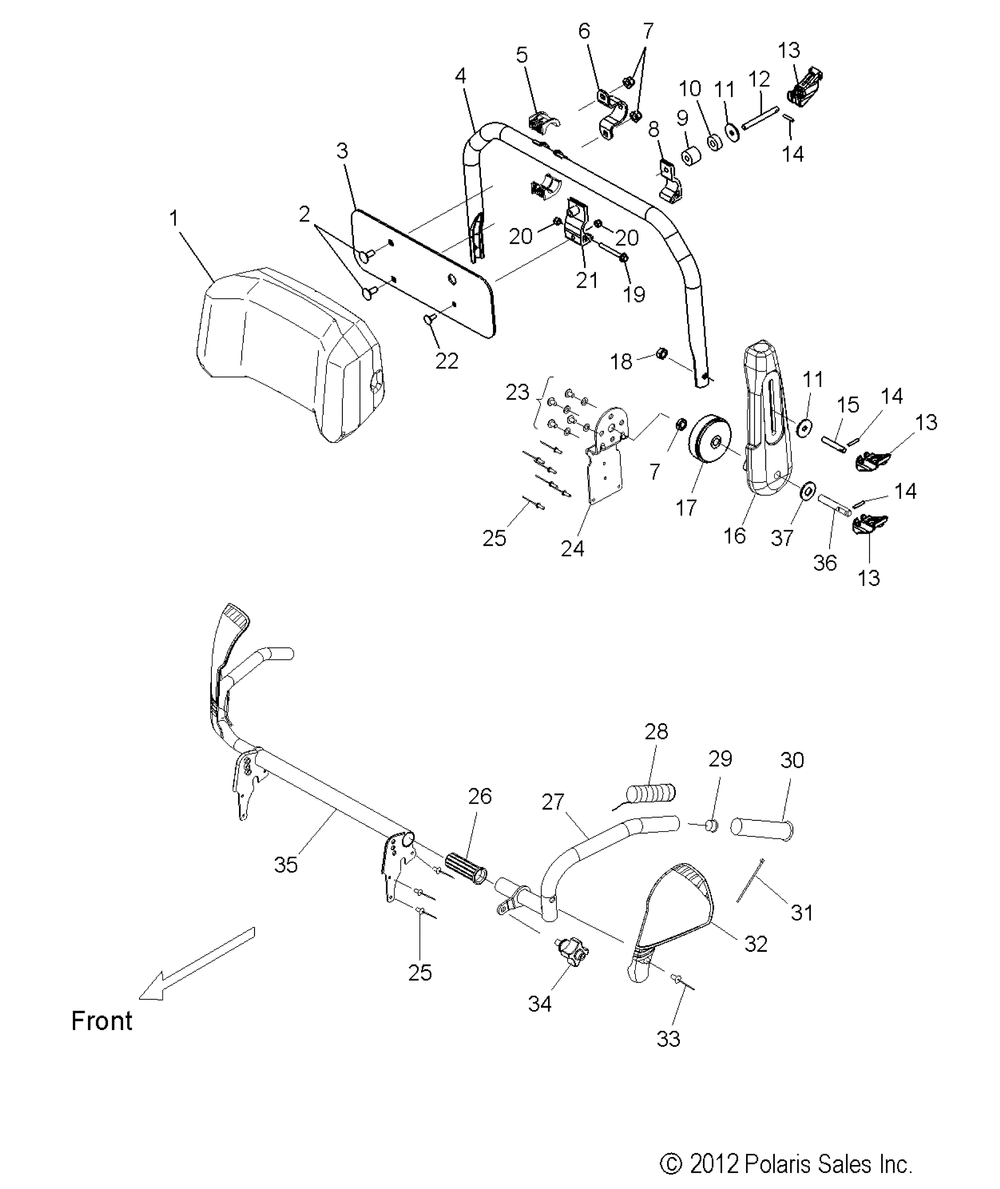

BODY BACKRESTand GRABHANDLE PASSENGER - S13PT7FSL (49SNOWBACKREST13600IQLXT)

Корзина пуста
Polaris S13PT7FSL IQ TURBO LXT S13PT7FSL IQ TURBO LXT BODY BACKRESTand GRABHANDLE PASSENGER - S13PT7FSL (49SNOWBACKREST13600IQLXT)
BODY BACKRESTand GRABHANDLE PASSENGER - S13PT7FSL (49SNOWBACKREST13600IQLXT)
№ Наименование Примечание Кол-во
1 ASM-BUNBACKRESTSVC 1
1 ASM-BACKREST COVER 1
2 BOLT-M8X1.25X20CARR-OLIVE D 2
3 PLATE-BACKREST 1
4 WELD-BACKRESTP-067 BLK 1
5 BUSHING-UPPER STEERING1 IN 2
6 BRKT-UPPER STEERING BUSHING 1
7 NUT-M12X1.5 HXJM ZOD 2
8 CLAMP-TUBEUPPER 1
9 BUSHING-RUBBERLNR ANCHOR 1
10 BUSHING-L&R ANCHOR SNOW 1
11 WASHER-.325X1.38X.093FL-RIE 3
12 STUD-BACKRESTM8 (LONG) 1
13 HANDLE-L'N'R ANCHORBLK 5
14 PIN-DOWEL5/32"X7/8"ZPC 5
15 STUD-BACKRESTM8 (SHORT) 2
16 MOUNT-ADJ ARM 2
17 CYLINDER-RATCHET 2
18 NUTHEXHDM8 2
19 SCR-HXFL-M6X1.0X55 8.8 ZOD 1
20 NUT-HEX-M6X1.0 8 ZOD NYL 2
21 ASM-TUBE CLAMPLOWERM8 1
22 SCR-RHCAR-M6X1.0X16 8.8 ZOD 1
23 SCR-3/8-16X.625 TX/TRUSSGR5-Y 8
23 WASHERSPRING LOCK(10) (10 per pack) 8
24 BRACKET-MOUNTBLK 2
25 RIVETINTERLOCKZ(50) * (50 per pack) 6
26 BUSHING-GRABHANDLE 2
27 WELD-GRABHANDLETOURRHBLK 1
27 WELD-GRABHANDLETOURLHBLK 1
28 HEATER-GRIPPASSENGER12.25" 2
29 PLUG 2
30 GRIP-HANDLEBAR LONG BSC 2
31 CABLE TIE (10) (10 per pack) 2
32 DEFLECTOR-WINDPASSENGERLH 1
32 DEFLECTOR-WINDPASSENGERRH 1
33 RIVET(50) * (50 per pack) 2
34 ASM-KNOBGRABHANDLE 2
35 TUBEGRABHANDLE 1
36 STUD-BACKRESTM12 2
37 WASHER(10) (10 per pack) 2
