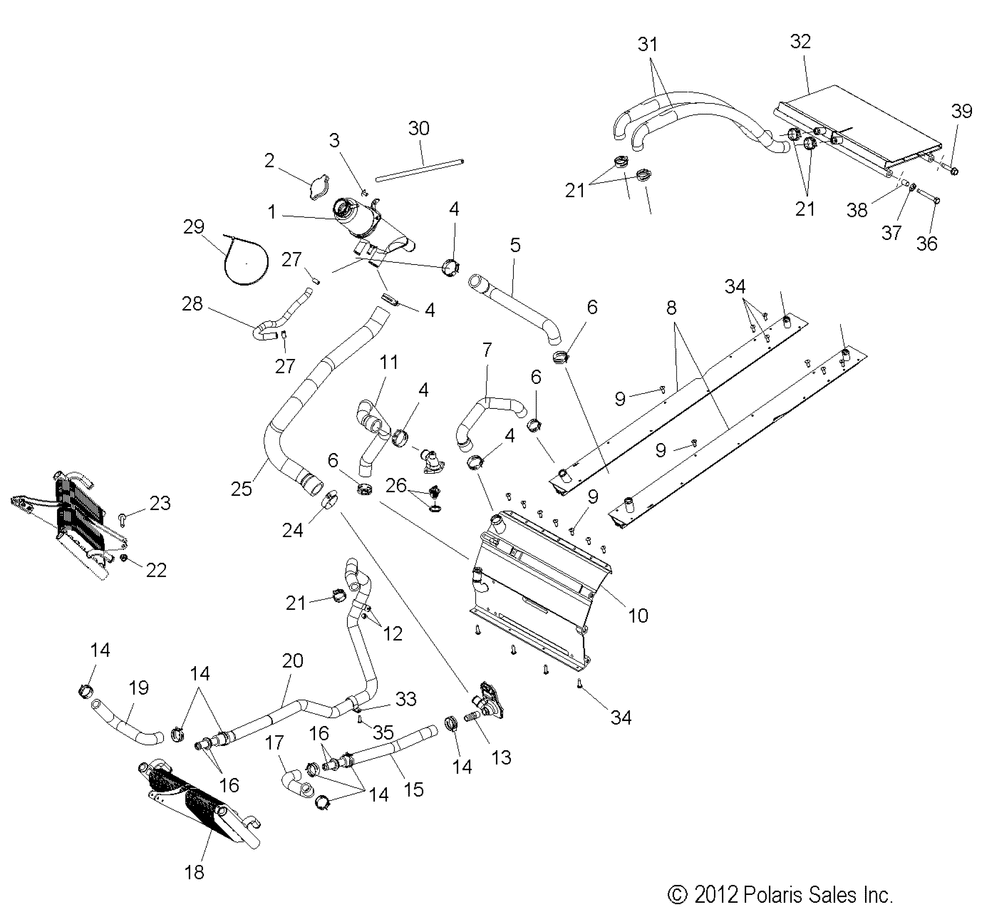

ENGINE COOLING SYSTEM - S13BR8GSA / GSL (49SNOWCOOLING138SB)

№	Наименование	Кол-во
1	WELD-COOLANT BOTTLE 3 OUTLET	1
2	CAP-PRESSURE	1
3	RIVET(50) * (50 per pack)	1
4	CLAMPSPRINGBAND 35/12BLK	4
5	HOSE-BOTTLE/TNL CLR RETURN	1
6	CLAMPSPRINGBAND 29/12BLK	7
7	HOSE-CTR CLR/TNL CLR SUPPLY	1
8	WELD-WEAR STRIP COOLER 136 LH	1
8	WELD-WEAR STRIP COOLER 136 RH	1
9	RIVET-4.8MM DIA-1.5-6.0 GRIP	1
10	WELD-COOLER BULKHEAD	1
11	HOSE-ENGINE/CTR COOLER SUPPLY	1
12	CLAMPHOSE1"NYLON	2
12	SCR-M5X.80X8-HX/FL-Y/D	1
13	FITTING1/2ID.HOSE	1
14	SPRINGBAND-CLAMP 25/12	7
15	HOSE-BULKHEAD/ENGINE RETURN	1
16	TUBE-ENGINE/RADIATOR	2
16	GROMMET-16.5X28.5X9.5MM	2
17	HOSE-TUBERADIATOR OUT	1
18	ASM-RADIATORSNOW	1
19	HOSE-TUBERADIATOR IN	1
20	HOSE-ENGINE/BULKHEAD SUPPLY	1
21	SPRINGBAND-CLAMP 24/12	5
22	NUT-M8X1.25FLGNYLOC-OLIVE D	1
23	SCR-M8X1.25X40 10.9 HX/FL ZOD	1
24	CLAMPHOSE S.S.	1
25	HOSE-BOTTLE/ENGINE IN	1
26	THERMO-120	1
26	O-RINGLIPSEAL	1
27	CLAMPHOSE	2
28	HOSE-BOTTLE/TBODY OUT	1
29	CABLE TIE14"	1
30	LINEFUEL1/4 ID(1525 CM.) [BULK SVC]	1
31	HOSE-TUNNEL COOLER/MFC	2
32	WELD-COOLER MID FLAP	1
35	RIVETINTERLOCKZ(50) * (50 per pack)	0
36	SCR-M8X1.25X70 8.8 HH ZOD	2
37	WASHER-.344X.688X.063 FL-ZOD	2
38	SPACER-COOLER	2
39	SCR-HXFL-M8X1.25X40 8.8 ZODP30	2
