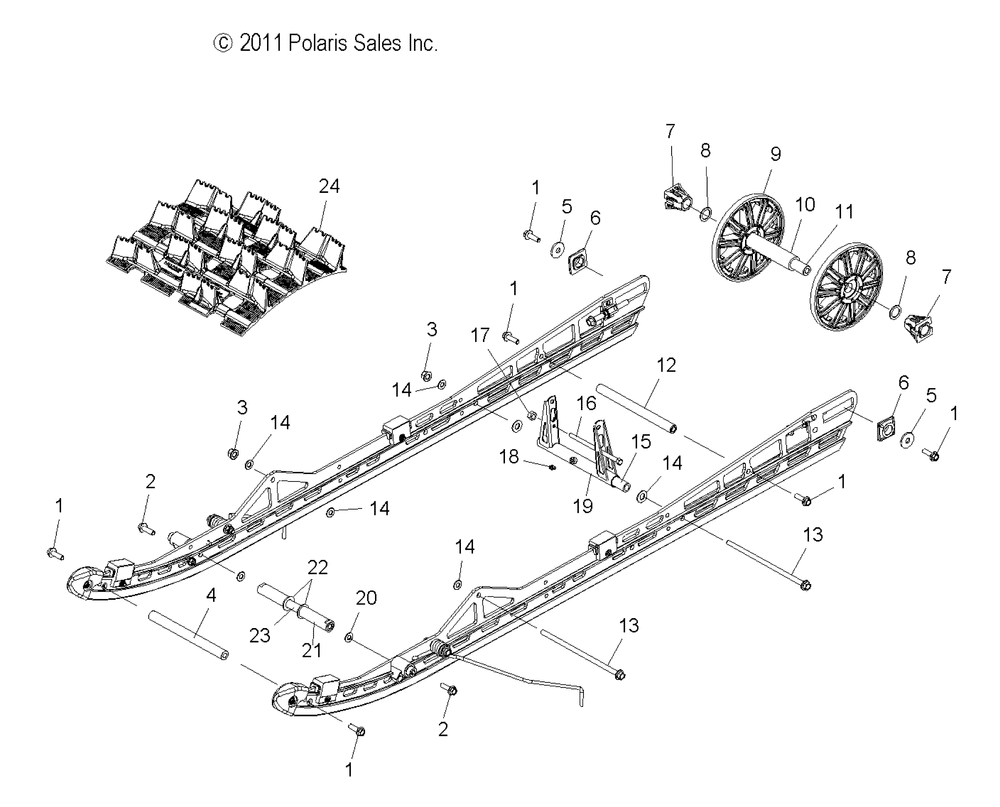

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SCR-M10X1.5X35 HXFL ZOD P30 | 6 | |
| 2 | SCR-HXFL-M10X1.5X40 10.9ZODP80 | 2 | |
| 3 | NUT-M10X1.5 HFN NYLOC ZOD | 2 | |
| 4 | SFT-M10X1.5IDX17.47ODX220.ANOD | 1 | |
| 5 | WASHER-SPRING.406X1.25X.125ZOD | 2 | |
| 6 | SPACER-IDLER | 2 | |
| 7 | SPACERIDLER | 2 | |
| 8 | BUSHING(10) (10 per pack) | 2 | |
| 9 | ASM-WHEELWEB7.256004BLK | 2 | |
| 9 | BEARING-.7874X1.6535X.4724NTN [1 PER WHEEL] | 2 | |
| 9 | RINGRETAINING [1 PER WHEEL] | 2 | |
| 10 | SPACERIDLERCTR. | 1 | |
| 11 | SHAFT-IDLER M10X1.5 | 1 | |
| 12 | SFT-M10X1.5IDX17.47ODX220.1 LG | 1 | |
| 13 | SCR-HXFL M10X1.5X250 8.8 ZOD | 2 | |
| 14 | WSHR-10.5X24X1.2446 ZOD | 6 | |
| 15 | SHAFT-CROSS RMK | 1 | |
| 16 | SCR-HXFL M6X1.0X150 8.8 ZOD | 1 | |
| 17 | NUT-M6X1.0FLG-NYLOC-OLIVE D | 1 | |
| 18 | FITTING LUBRICATION | 2 | |
| 19 | WELD-REAR PIVOT ARMMY11ECOAT | 1 | |
| 20 | WASHER | 2 | |
| 21 | SPACER-SHOCK CENTERINGMET | 2 | |
| 22 | WSHR-.719X1.250X.065-Y | 2 | |
| 23 | SHAFT-17.450X214.77 | 1 | |
| 24 | TRACK-155X2.4SINGLE LAYER | 1 |
