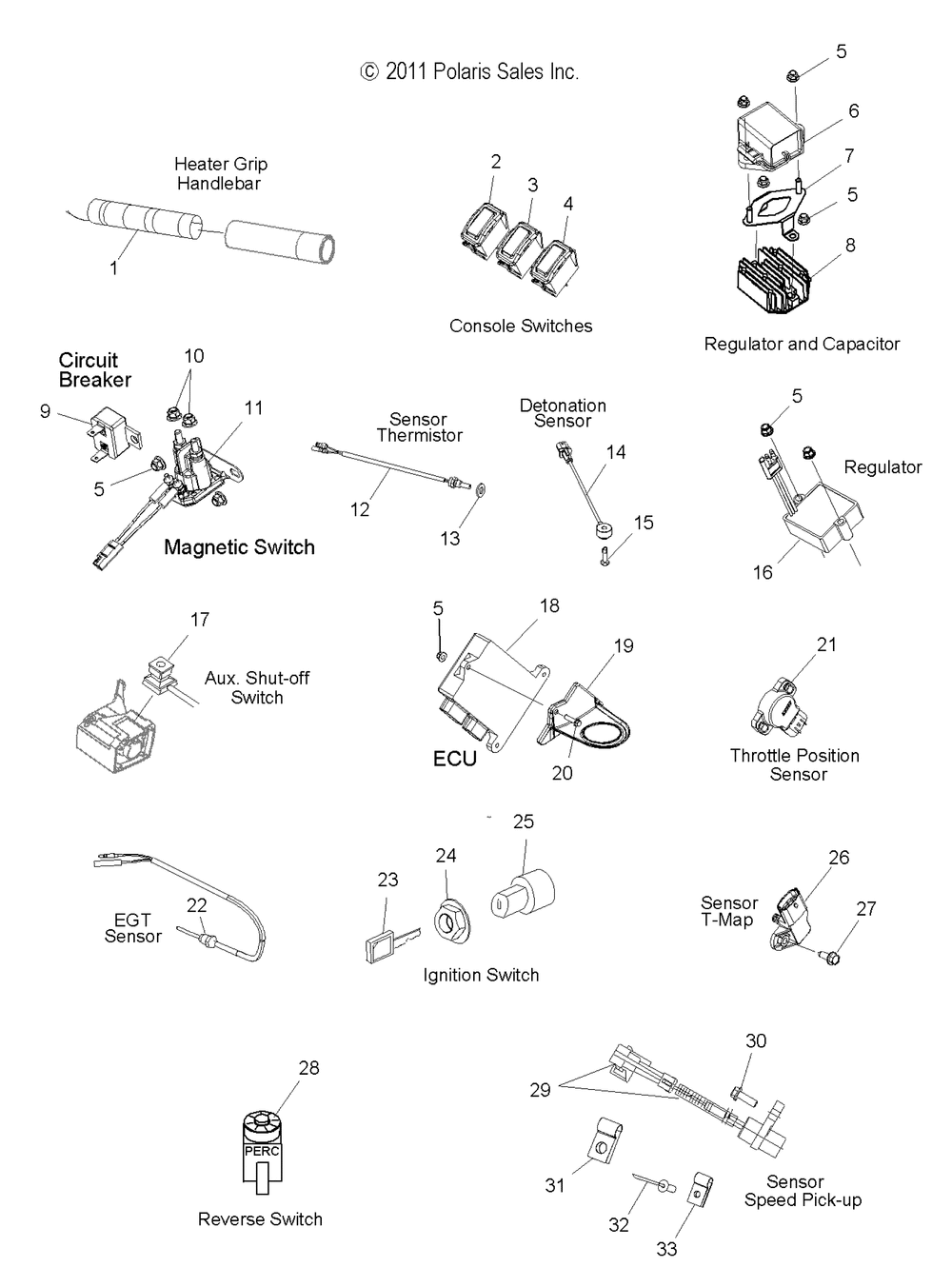

ELECTRICAL SWITCHES SENSORS and COMPONENTS - S12CG6GSA / GSL / GEL (49SNOWELECT12800PRMK)

Polaris S12CG6GSA/GSL/GEL 600 PRO RMK 155 S12CG6GSA/GSL/GEL 600 PRO RMK 155 ELECTRICAL SWITCHES SENSORS and COMPONENTS - S12CG6GSA / GSL / GEL (49SNOWELECT12800PRMK)

№	Наименование	Кол-во
1	HEATER-GRIPLO/HIALUM	2
2	SWITCH-HANDWARMERSPDT	1
3	SWITCH-MODE/SET	1
4	SWITCH-HEADLIGHTHI/LO	1
5	NUT-M6X1.0FLG-NYLOC-OLIVE D	7
6	CAPACITOR	1
7	ASM-MNT CAPACITOR W/CLNCH STUD	1
8	REG-20A 3-PHASE DCVOLT.BOOST	1
9	BREAKER-CIRCUIT 12 AMP	1
10	NUTNYLOKFLANGED	1
11	SWITCH-MAGNETIC	1
12	SENSOR-WATER TEMP	1
13	WASHER-18X12X2.5MM-COPPER	1
14	SENSOR-DETONATION BOSCH	1
15	SCR-M8X1.25X30HX/FL-YD	1
16	REGULATOR-AC/DC 14.3V	1
17	SWITCH-AUX SHUT-OFFDC-SDIHON	1
18	ECU-BASEKOKDC-SDI LE	1
19	MOUNT-ECU	1
20	BOLT-M6X1.0X20HXHDFLGBLK	3
21	SENSOR-THROTTLE POSITION	1
22	SENSOR-EGT	1
23	SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.].	1
24	NUTIGNITION	1
25	KIT-IGNITION SWITCHESCOMPLT	1
26	SENSOR-TMAP DSS3-TF	1
27	SCREW	1
28	SWITCH-E/RMOMENTARY	1
29	SENSOR-SPEED PICKUP LG	1
30	SCR-1/4-20X.75TR/TX-M	1
31	CLAMP CABLE	1
32	RIVETINTERLOCKZ(50) * (50 per pack)	1
33	CLAMP-CABLENYLON5/16"	1
