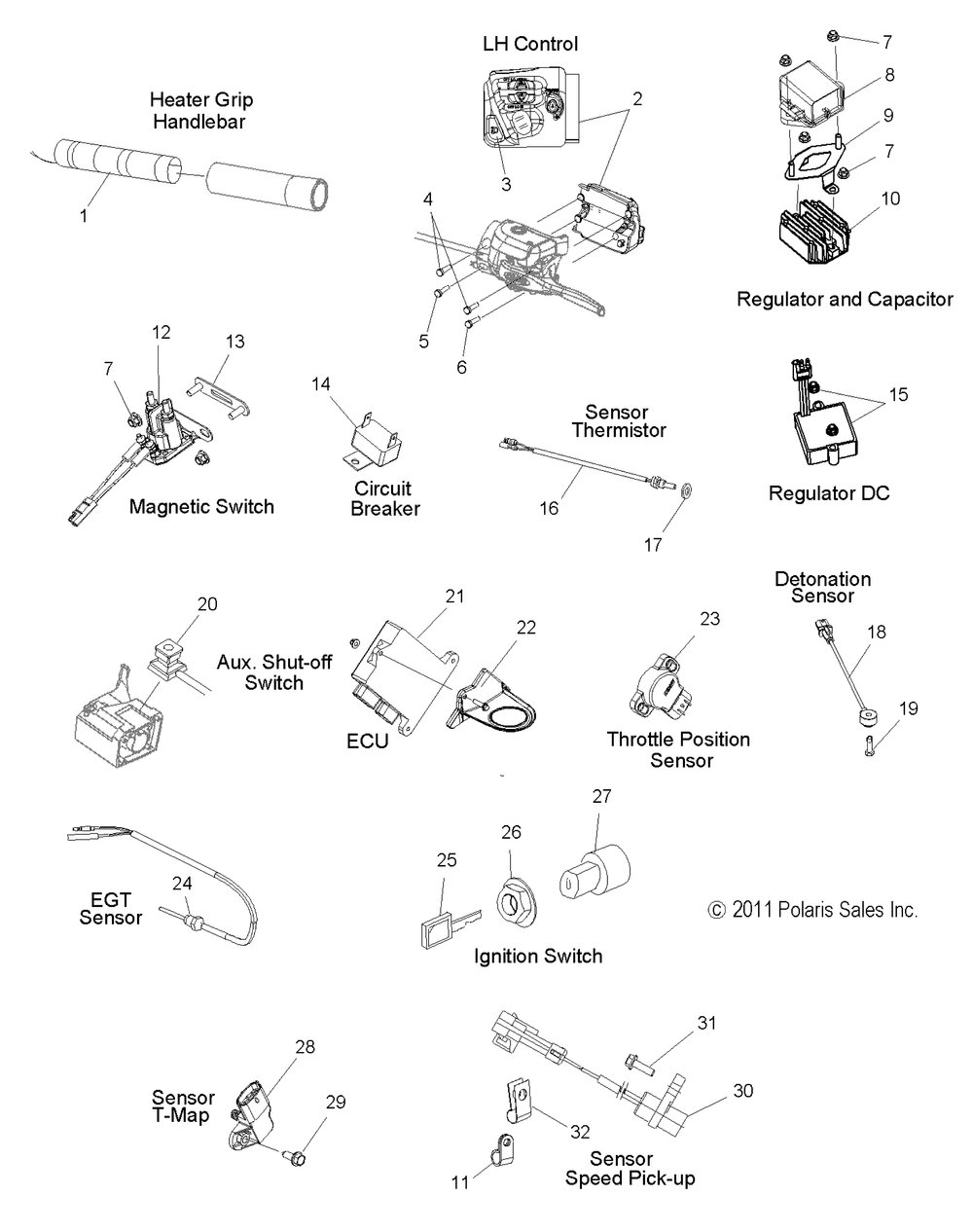

ELECTRICAL SWITCHES SENSORS and COMPONENTS - S12BR8GSA / GSL (49SNOWELECT12800SB)

Polaris S12BR8GSA/GSL 800 SWITCHBACK/ES S12BR8GSA/GSL 800 SWITCHBACK/ES ELECTRICAL SWITCHES SENSORS and COMPONENTS - S12BR8GSA / GSL (49SNOWELECT12800SB)

№	Наименование	Кол-во
1	HEATER-GRIPLO/MED/HISHORT	2
2	ASM-CONTROLLHMFGREV	1
3	BUTTON-SWITCHHI/LOLH CONTROL	1
4	SCREW .75	2
5	SCREW 1.12(10) (10 per pack)	1
6	SCREW 1.50	1
7	NUT-M6X1.0FLG-NYLOC-OLIVE D	6
8	CAPACITOR	1
9	ASM-MNT CAPACITOR W/CLNCH STUD	1
10	REG-20A 3-PHASE DCVOLT.BOOST	1
11	CLAMP-CABLENYLON5/16"	1
12	SWITCH-MAGNETIC	1
13	ASM-STUD PLATE 60.96MM	1
14	BREAKER-CIRCUIT 12 AMP	1
15	REGULATOR-AC/DC 14.3V	1
16	SENSOR-WATER TEMP	1
17	WASHER-18X12X2.5MM-COPPER	1
18	SENSOR-DETONATION BOSCH	1
19	SCR-M8X1.25X30HX/FL-YD	1
20	Switch Aux. Shut-Off	1
21	ECU-BASEKOKDC-SDI LE	1
22	MOUNT-ECU	1
23	SENSOR-THROTTLE POSITION	1
24	SENSOR-EGT	1
25	SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.].	1
26	NUTIGNITION	1
27	KIT-IGNITION SWITCHESCOMPLT	1
28	SENSOR-TMAP DSS3-TF	1
29	SCREW	1
30	SENSOR-SPEED PICKUP LG	1
31	SCR-1/4-20X.75TR/TX-M	1
32	CLAMP CABLE	1
