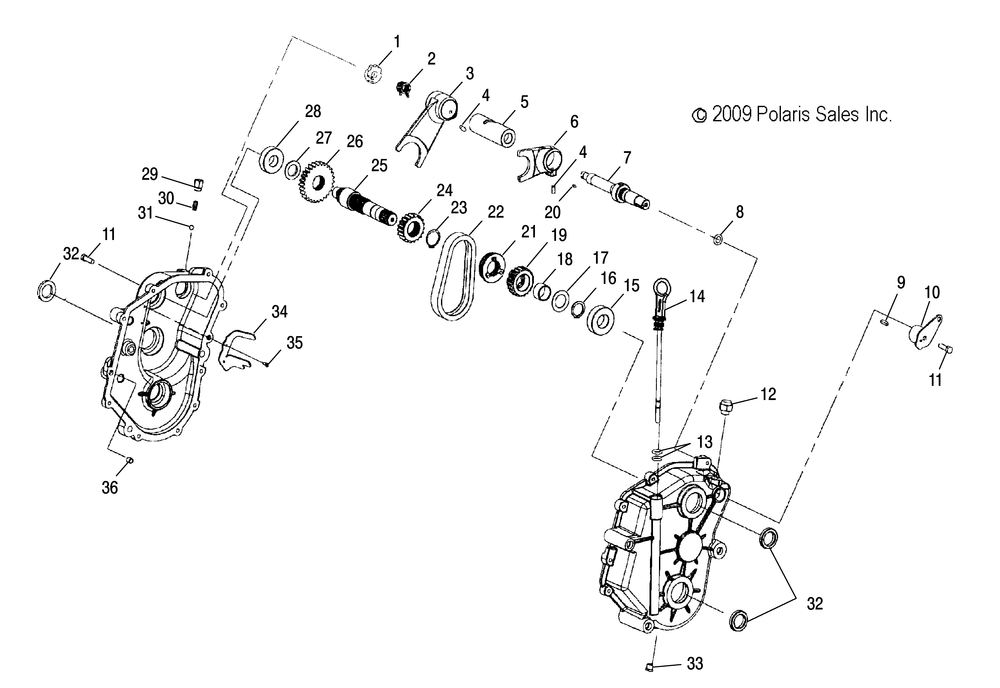

DRIVE TRAIN GEARCASE (1 of 2) - S11SU4BSL / BEL (49SNOWDRIVETRAIN10WIDELX)

Polaris S11SU4BSL/BEL WIDETRAK LX/INTL S11SU4BSL/BEL WIDETRAK LX/INTL DRIVE TRAIN GEARCASE (1 of 2) - S11SU4BSL / BEL (49SNOWDRIVETRAIN10WIDELX)

№	Наименование	Кол-во
	ASM-GEARCASEWIDETRAKBASIC [Incl. 1-36 and All from Gearcase [2 or 2] page.]	1
1	SHIFT-INDEXWDT	1
2	SPRING-TORSION W/T .100 SQWIRE	1
3	SHIFT FORKLOW	1
4	PIN-DOWEL .25X..625	2
5	SHIFT-DRUMWDT	1
6	SHIFTFORKHIGH	1
7	SHAFTSHIFT	1
8	O RING	1
9	KEY-3/16X3/4	1
10	WELD-BELLCRANKW/T	1
11	SCR-1/4-20X1 HXFLG HD SERR-Y	12
12	SWREV./NEUT.INDIC.	1
13	O-RING	2
14	STICK-OIL LEVEL INDICATOR	1
15	BEARING205W/O SEAL tahos_6205	1
16	RING-RET BSC EXT.984X.906X.078	1
17	WASHER-THRUST 1.007X1.542X.062	1
18	BRG-NEEDLE CAGE 25X31X17	1
19	SPROCKET19T.75W NOTE: MUST ORDER WITH REF. 24	1
20	KEY-1/8X1/4	1
21	DOGENGAGEHIGH NOTE: MUST ORDER WITH REF. 25	1
22	CHAIN-23-147.375X.75X40P [.75W 40P]	1
23	RING-RET 1.125X1.041X.050	1
24	SPROCKET19T	1
25	SHAFTINPUT	1
26	GEAR27T	1
27	SPACER-1.375X.860X.155	1
28	BRG-BALL 6204 C3 20X47X14	1
29	DETENT-EXTEN .750 9/16 HEX	1
30	SPRINGSHIFTER DETENT	1
31	BALL DETENT (10) (10 per pack)	1
32	SEAL-DUAL LIP .0984X1.500X.25	3
33	PLUG-7/16-20W/MAG HX-PLATED	1
34	DEFLECTOR-OILW/T	1
35	SCR-8-32 X .50 PHTXTP W/LOC-Y	2
36	KNOCK PIPE-.375X.286X.370	2
