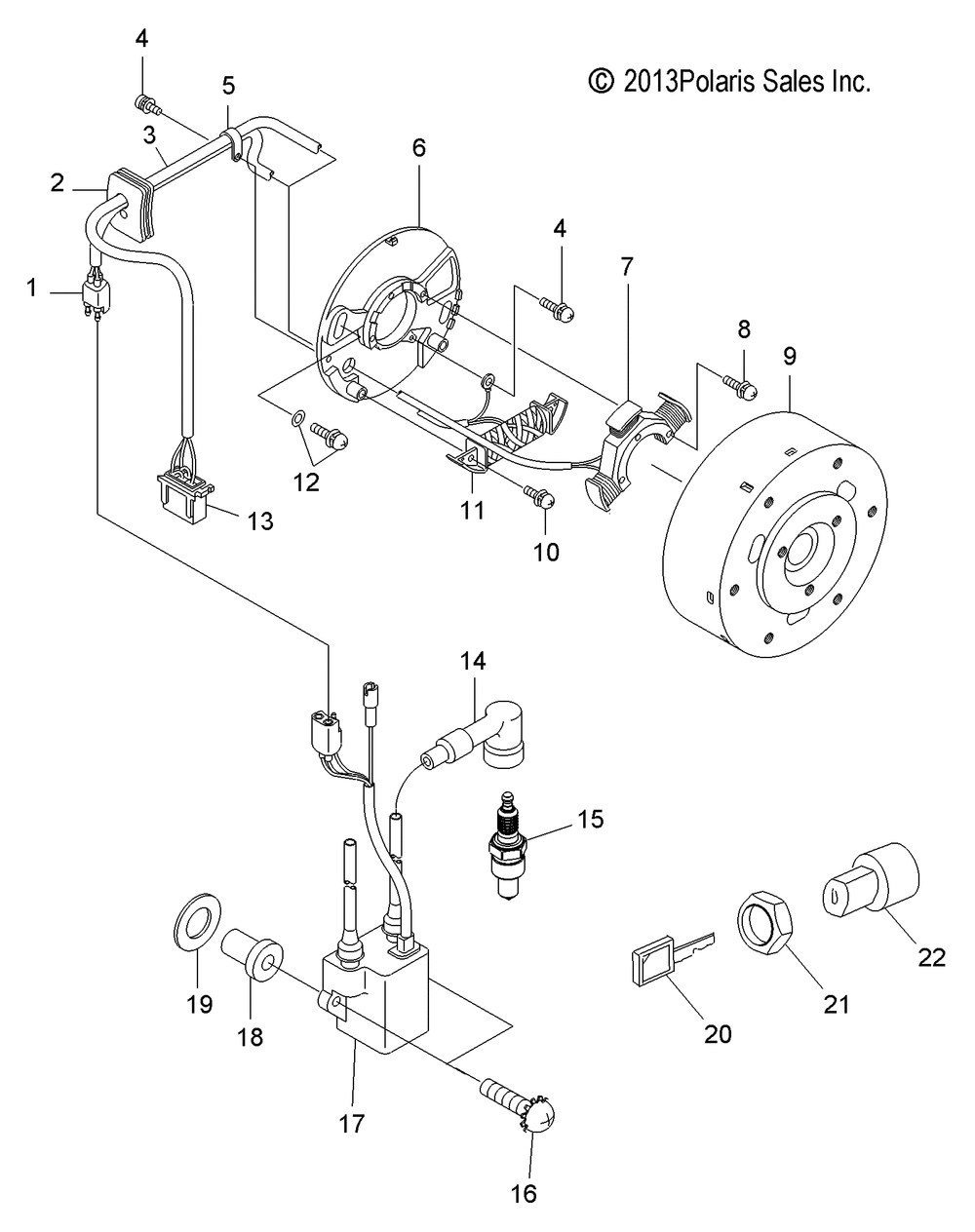

ELECTRICAL IGNITION SYSTEM and SWITCH - S11SU4BSL / BEL (49SNOWMAGNETO14WIDELX)

Polaris S11SU4BSL/BEL WIDETRAK LX/INTL S11SU4BSL/BEL WIDETRAK LX/INTL ELECTRICAL IGNITION SYSTEM and SWITCH - S11SU4BSL / BEL (49SNOWMAGNETO14WIDELX)

№	Наименование	Кол-во
1	COUPLER	1
2	GROMMET	1
3	HARNESS-WIRE [Incl. 2]	1
4	ASM.SCREW&WASHER(10) (10 per pack)	2
5	CLAMP	1
6	PLATE COIL	1
6	ASM-PLATE [Incl. 1-8101113]	1
7	STATOR 1	1
8	ASM.SCREW AND WASHER(10) (10 per pack)	3
9	ASM-FLYWHEEL	1
10	ASM.SCREW & WASHER	2
11	COIL EXCITER	1
12	ASM.SCREW&WASHER(10) (10 per pack)	2
13	COUPLERMALE	1
14	RESISTOR PLUG CAP (10) (10 per pack)	2
15	SPARKPLUG RN3C(4) (4 per pack)	2
16	SCREW&WASHER(10) (10 per pack)	2
17	COIL-IGNITION	1
18	NUT-RUBBER	2
19	WASHER	2
20	SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.].	1
21	NUTIGNITION	1
22	KIT-IGNITION SWITCHESCOMPLT	1
