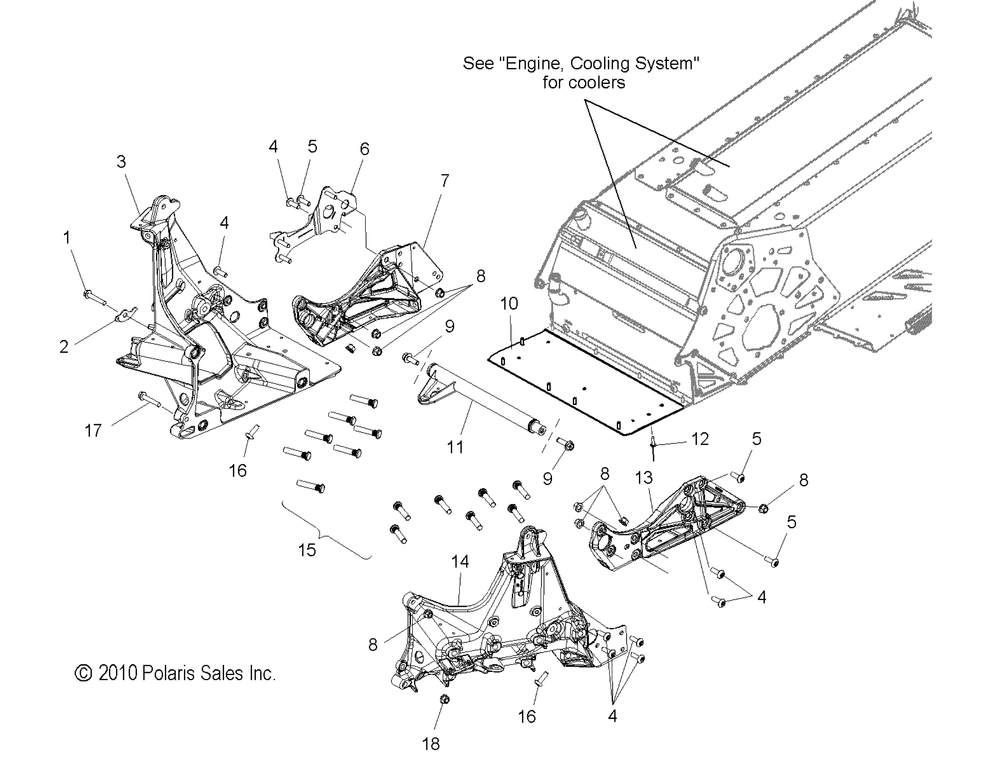

CHASSIS BULKHEAD ASM. - S11BP8 / BE8 ALL OPTIONS (49SNOWCHASSISFRT11PR)

№	Наименование	Кол-во
	KIT-LORD 406 REPAIR KIT 50ML [ADHESIVE]	1
	KIT-LORD MIX NOZZLES	1
	KIT-LORD 406 50ML CARTRIDGE [ADHESIVE]	1
1	SCREW(10) (10 per pack)	1
2	BRKT-PIPE/CHASSIS	1
3	ASM-CLIP W/8MM STUD RH [Incl. 15][Requires Adhesive]	1
4	SCR-TXTH-M8X1.25X25 8.8 ZODP30	10
5	CL8.8 OLV-D	2
6	ASM-WELD RESONATOR SUPPT LWR	1
7	BRACE-LOWER RH MACH [Requires Adhesive]	1
8	NUT-M8X1.25FLGNYLOC-OLIVE D	11
9	SCR-M10X1.5X25-8.8 HFS ZOD	2
10	FLOOR-BULKHEAD	1
11	WELD-UCA CROSS TUBE	1
12	RIVETINTERLOCKZ(50) * (50 per pack)	10
13	ASM-BRACE LOWER LH [REQUIRES ADHESIVE][INCL. SLEEVE]	1
14	ASM-CLIP W/8MM STUD LH [Incl. 15][Requires Adhesive]	1
15	STUD-WHEEL M8X1.25X48	14
16	SCR-HXFL-M8X1.25X25 8.8 ZODP30	2
17	SCR-M10X1.5X95 HX FLG 10.9 ZOD	1
18	NUT-M10X1.5 HFN NYLOC ZOD	1
