Polaris S10PP7FSL/FEL IQ TURBO DRAGON S10PP7FSL/FEL IQ TURBO DRAGON SUSPENSION SHOCK REAR TRACK (7043205) - S10PP7FSL / FEL (49SNOWSHOCKREAR7043205TRBO)

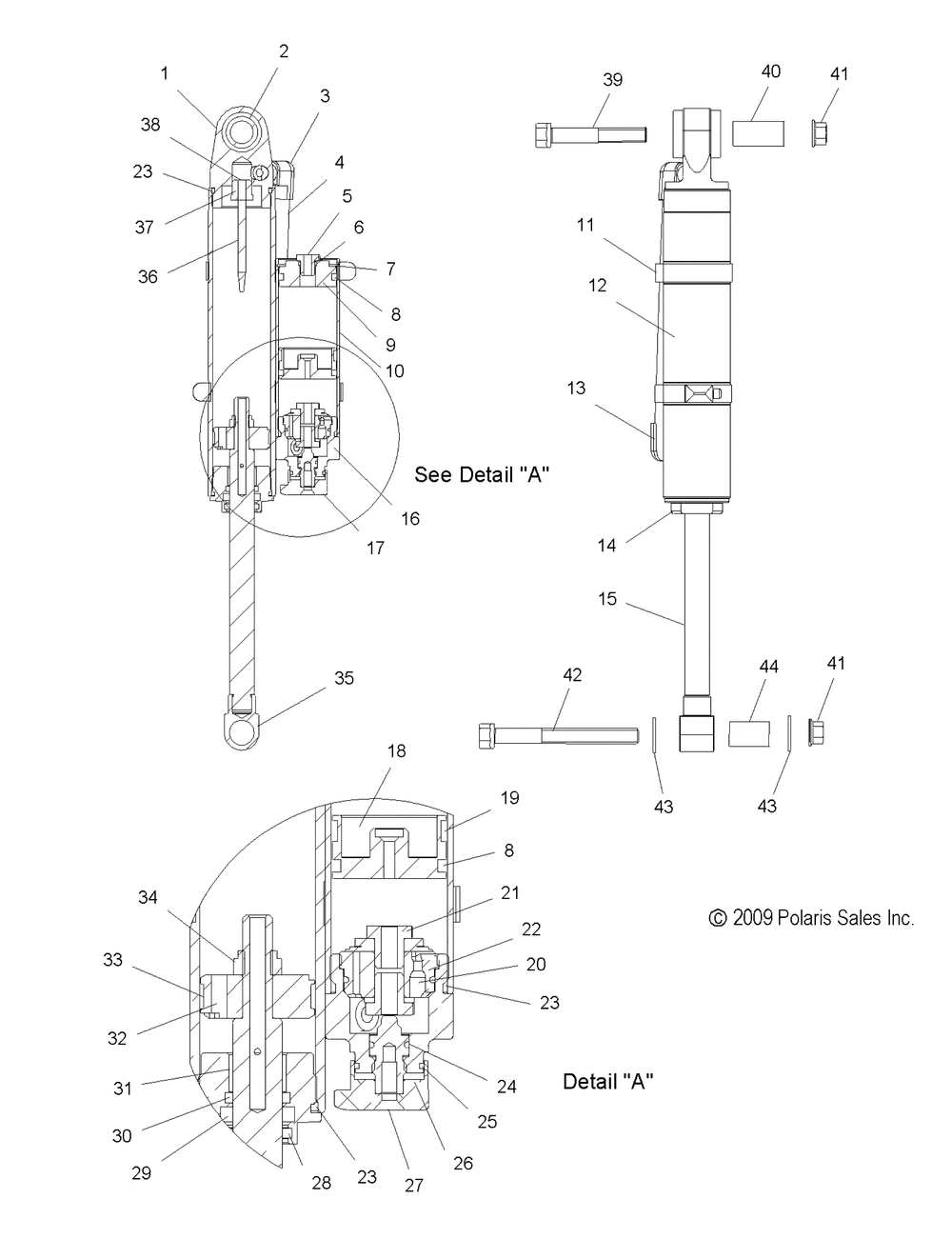

SUSPENSION SHOCK REAR TRACK (7043205) - S10PP7FSL / FEL (49SNOWSHOCKREAR7043205TRBO)
№ Наименование Примечание Кол-во
SHOCK-R/TWEREM RES C/AND 1
1 LOOPBODY 1
2 SLEEVE 1.202"L 1
2 BUSHING/URETHANE 2
3 FITTING 90 1
4 HOSE 1
5 VALVE-NEEDLE 1
5 SCREW-BUTTON HEAD 8/32(10) (10 per pack) 1
6 O-RING(10) (10 per pack) 1
7 RESERVOIR SNAP RING (10) (10 per pack) 1
8 O-RING RESERVOIR (10) (10 per pack) 2
9 CAP-END 1
11 CLAMP-HOSE 2
12 BODY 1
13 ELBOW-1/8" NPT 90 1
14 ASM-SHAFT SEAL HOUSING 1
15 SHAFT-.62X7.89 NEEDLE 1
16 HOUSING-ADJ. 1
17 KNOB 1
18 PISTON-RES.W/BLEED SCREW 1
18 O-RING-BLEED SCREW 1
18 BLEED SCREW 1
20 BALL-D-TENT(10) (10 per pack) 3
21 SCREW W/THRU HOLE 1
22 PISTON 1
23 O-RING BODY (10) (10 per pack) 1
24 O-RINGSTUD 1
25 O-RINGKNOB 1
26 SPRING-D-TENT(10) (10 per pack) 2
27 SCREW 1
28 WIPER D/TYPE 1
29 SHAFT SEAL U CUP 1
30 O-RING SHAFT SEAL HEAD (10) (10 per pack) 1
31 SHAFT BUSHING 1
32 PISTON-W/BAND.040 RED 1
33 WEAR BAND TEFLON (100311) 1
34 3/8" CRIMP NUT (10) (10 per pack) 1
35 EYELET 1
36 NEEDLE 2.25 (100114) 1
37 BOLT NEEDLE (600154) 1
38 SCREW ALLEN (100338) 1
39 BOLT 1
40 BUSHING 1
41 NUT-3/8-24 NYLOK 2
42 SCR-3/8-24X4.00 HXCP-GR5-Y 1
43 WASHERWAVE SPRING(10) (10 per pack) 2
44 SLEEVE.385X.560X1.24 1
