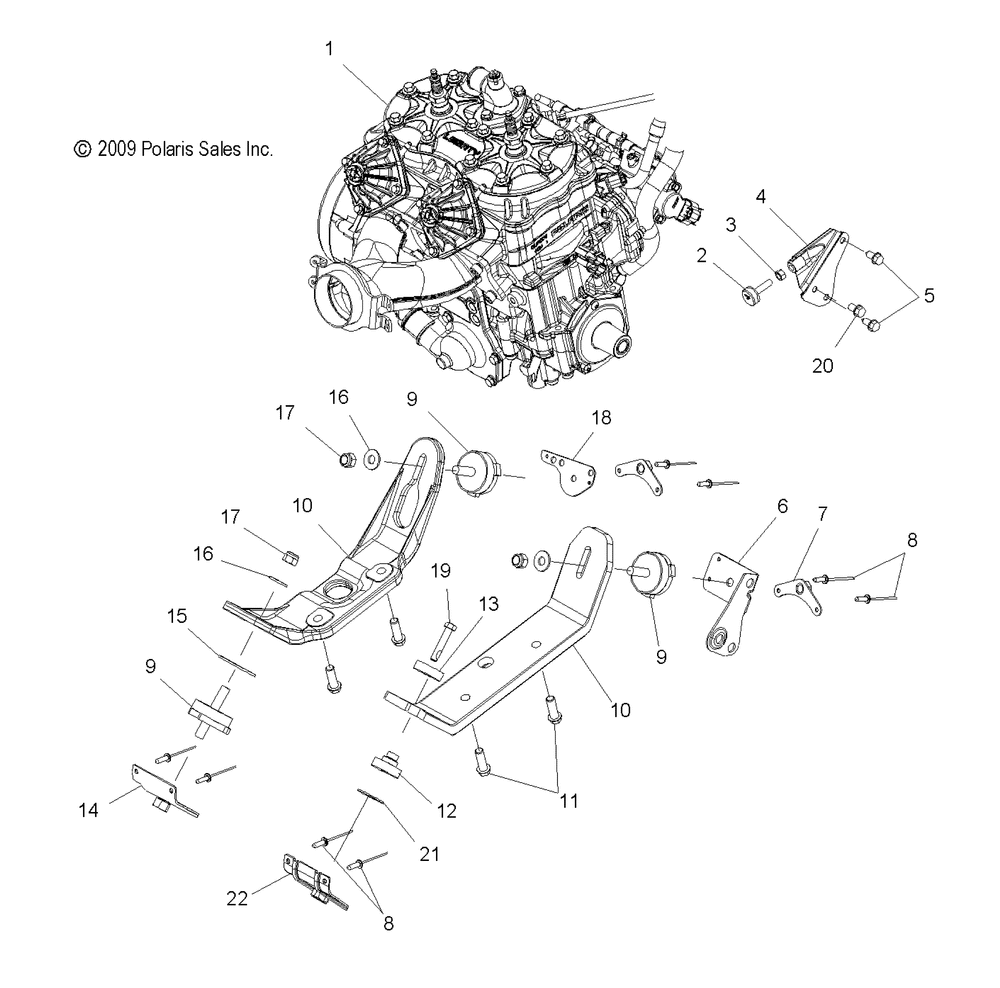

ENGINE MOUNTING - S10PR8ESA / ESL (49SNOWENGINEMOUNT10ASLT)

№	Наименование	Кол-во
1	KIT-SHORT BLOCK 800 4-INJ NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston and crankshaft assembly. Prior authorization is required for warranty consideration.	1
2	STOP-TORQUECOURSE3/8-16 1.50	1
3	NUT	1
4	WELD-TORQUE STOP	1
5	SCR-3/8-16X1-P30-SPEC-Y	5
6	WELD-TORQUE STOP/ENGINE MOUNT	1
7	WELD-NUT PLATE REAR	2
8	RIVETINTERLOCKZ(50) * (50 per pack)	8
9	ISOLATOR-RUBBER	3
10	STRAP-ENGINERHMACH	1
10	STRAP-ENGINE MNTLHSDI	1
11	SCR-M10X1.50X35 HX/FL	4
12	MOUNT-ENGINE RUBBERBOTTOM	1
13	MOUNT-ENGINE RUBBERTOP	1
14	ASM- CLINCH NUT PLATE	1
15	WASHER-.39X1.75X.05/06 ZY3	1
16	WASHERFLAT(10) (10 per pack)	3
17	NUT NYLOK(10) * (10 per pack)	3
18	SUPPORT-ENG MNT RRMAG	1
19	SCR-7/16-14X2.25 HXCP GR5-Y	1
20	SCREW	1
21	SPACER-1.875OD X.469ID X.244A	1
22	WELD-NUT PLATEFRT7/16 [LH]	1
